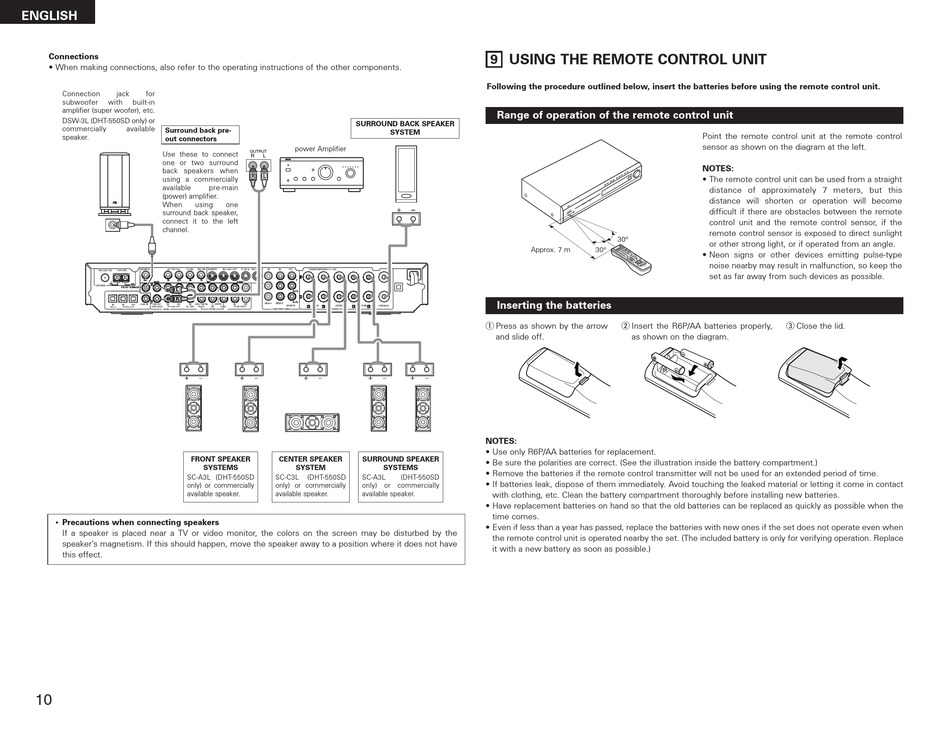

Connections
• When making connections, also refer to the operating instructions of the other components.
Connection jack for
subwoofer with built-in
amplifier (super woofer), etc.
DSW-3L (DHT-550SD only) or
commercially available
Surround back pre-
speaker.
out connectors
Use these to connect
one or two surround
back speakers when
using a commercially
available
(power) amplifier.
When using
surround back speaker,
connect it to the left
channel.
FRONT SPEAKER
SC-A3L (DHT-550SD
only) or commercially
available speaker.
• Precautions when connecting speakers
If a speaker is placed near a TV or video monitor, the colors on the screen may be disturbed by the
speaker's magnetism. If this should happen, move the speaker away to a position where it does not have
this effect.
10
SURROUND BACK SPEAKER
power Amplifier
OUTPUT
R L
B
R L
pre-main
one
CENTER SPEAKER SURROUND SPEAKER
SYSTEMS SYSTEM
SC-C3L (DHT-550SD SC-A3L
only) or commercially only) or commercially
available speaker. available speaker.
9

USING THE REMOTE CONTROL UNIT

Following the procedure outlined below, insert the batteries before using the remote control unit.
Range of operation of the remote control unit
SYSTEM
Approx. 7 m
Inserting the batteries
q Press as shown by the arrow
and slide off.
NOTES:
• Use only R6P/AA batteries for replacement.
• Be sure the polarities are correct. (See the illustration inside the battery compartment.)
SYSTEMS
• Remove the batteries if the remote control transmitter will not be used for an extended period of time.
(DHT-550SD
• If batteries leak, dispose of them immediately. Avoid touching the leaked material or letting it come in contact
with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
• Have replacement batteries on hand so that the old batteries can be replaced as quickly as possible when the
time comes.
• Even if less than a year has passed, replace the batteries with new ones if the set does not operate even when
the remote control unit is operated nearby the set. (The included battery is only for verifying operation. Replace
it with a new battery as soon as possible.)
Point the remote control unit at the remote control
sensor as shown on the diagram at the left.
NOTES:
ME
ER VOLU
MAST
TUNING
OL BAND • The remote control unit can be used from a straight
CONTR
S TONE
STATU
MODE
UND SURRO UND
/DTS DOLBY SURRO
O
/STERE DIRECT
5ch/6ch STERE O
distance of approximately 7 meters, but this
distance will shorten or operation will become
difficult if there are obstacles between the remote
control unit and the remote control sensor, if the
remote control sensor is exposed to direct sunlight
30°
or other strong light, or if operated from an angle.
30°
• Neon signs or other devices emitting pulse-type
noise nearby may result in malfunction, so keep the
set as far away from such devices as possible.
w Insert the R6P/AA batteries properly,
as shown on the diagram.
e Close the lid.
