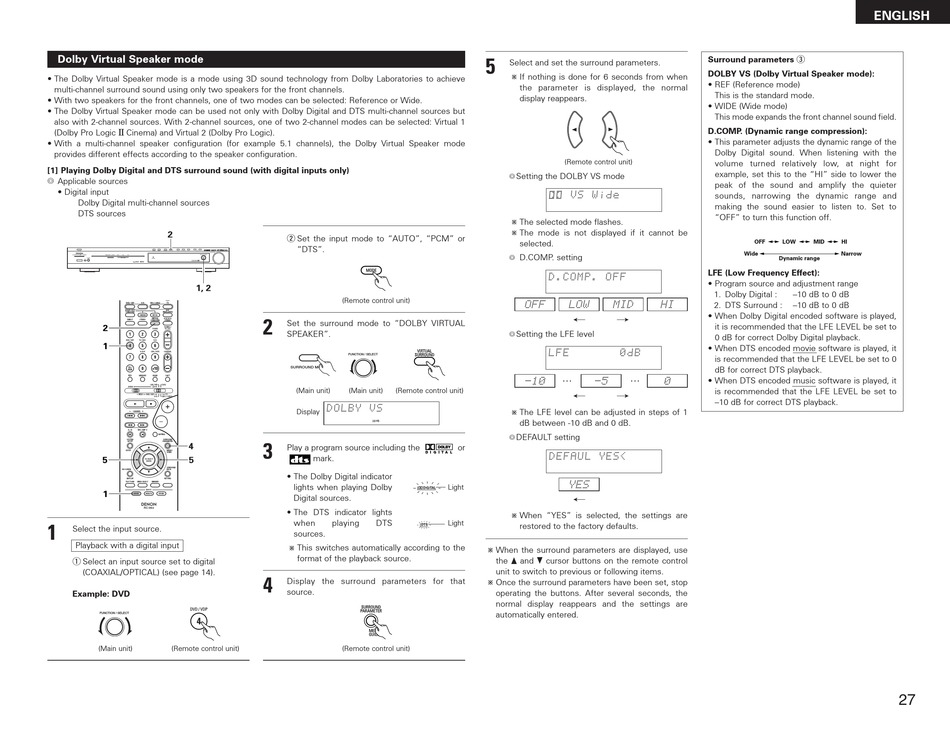

Dolby Virtual Speaker mode
• The Dolby Virtual Speaker mode is a mode using 3D sound technology from Dolby Laboratories to achieve
multi-channel surround sound using only two speakers for the front channels.
• With two speakers for the front channels, one of two modes can be selected: Reference or Wide.
• The Dolby Virtual Speaker mode can be used not only with Dolby Digital and DTS multi-channel sources but
also with 2-channel sources. With 2-channel sources, one of two 2-channel modes can be selected: Virtual 1
II
(Dolby Pro Logic Cinema) and Virtual 2 (Dolby Pro Logic).
• With a multi-channel speaker configuration (for example 5.1 channels), the Dolby Virtual Speaker mode
provides different effects according to the speaker configuration.
[1] Playing Dolby Digital and DTS surround sound (with digital inputs only)
B Applicable sources
• Digital input
Dolby Digital multi-channel sources
DTS sources
2
1, 2
2
1
4
5
5
1
1
Select the input source.
Playback with a digital input
q Select an input source set to digital
(COAXIAL/OPTICAL) (see page 14).
Example: DVD
FUNCTION / SELECT
(Main unit) (Remote control unit)
w Set the input mode to "AUTO", "PCM" or
"DTS".
(Remote control unit)
2
Set the surround mode to "DOLBY VIRTUAL
SPEAKER".
FUNCTION / SELECT
SURROUND MODE
(Main unit) (Main unit) (Remote control unit)
DOLBY VS
Display
3
Play a program source including the
mark.
• The Dolby Digital indicator
lights when playing Dolby
Digital sources.
• The DTS indicator lights
when playing DTS
sources.
This switches automatically according to the
format of the playback source.
4
Display the surround parameters for that
source.
(Remote control unit)
5
Select and set the surround parameters.
If nothing is done for 6 seconds from when
the parameter is displayed, the normal
display reappears.
(Remote control unit)
Setting the DOLBY VS mode
B
VS Wide
The selected mode flashes.
The mode is not displayed if it cannot be
selected.
D.COMP. setting
B
D.COM P. OFF
OFF LOW MID
, /
B Setting the LFE level
0 B
LFE
...
-10 -5
, /
The LFE level can be adjusted in steps of 1
dB between -10 dB and 0 dB.
DEFAULT setting
B
or
DEFAU L YES<
YES
Light
,
When "YES" is selected, the settings are
Light
restored to the factory defaults.
When the surround parameters are displayed, use
the • and ª cursor buttons on the remote control
unit to switch to previous or following items.
Once the surround parameters have been set, stop
operating the buttons. After several seconds, the
normal display reappears and the settings are
automatically entered.
Surround parameters e
DOLBY VS (Dolby Virtual Speaker mode):
• REF (Reference mode)
This is the standard mode.
• WIDE (Wide mode)
This mode expands the front channel sound field.
D.COMP. (Dynamic range compression):
• This parameter adjusts the dynamic range of the
Dolby Digital sound. When listening with the
volume turned relatively low, at night for
example, set this to the "HI" side to lower the
peak of the sound and amplify the quieter
sounds, narrowing the dynamic range and
making the sound easier to listen to. Set to
"OFF" to turn this function off.
OFF LOW
Wide
Dynamic range
LFE (Low Frequency Effect):
• Program source and adjustment range
1. Dolby Digital : –10 dB to 0 dB
HI
2. DTS Surround : –10 dB to 0 dB
• When Dolby Digital encoded software is played,
it is recommended that the LFE LEVEL be set to
0 dB for correct Dolby Digital playback.
• When DTS encoded movie software is played, it
d
is recommended that the LFE LEVEL be set to 0
dB for correct DTS playback.
...
0 • When DTS encoded music software is played, it
is recommended that the LFE LEVEL be set to
–10 dB for correct DTS playback.
ENGLISH
MID HI
Narrow
