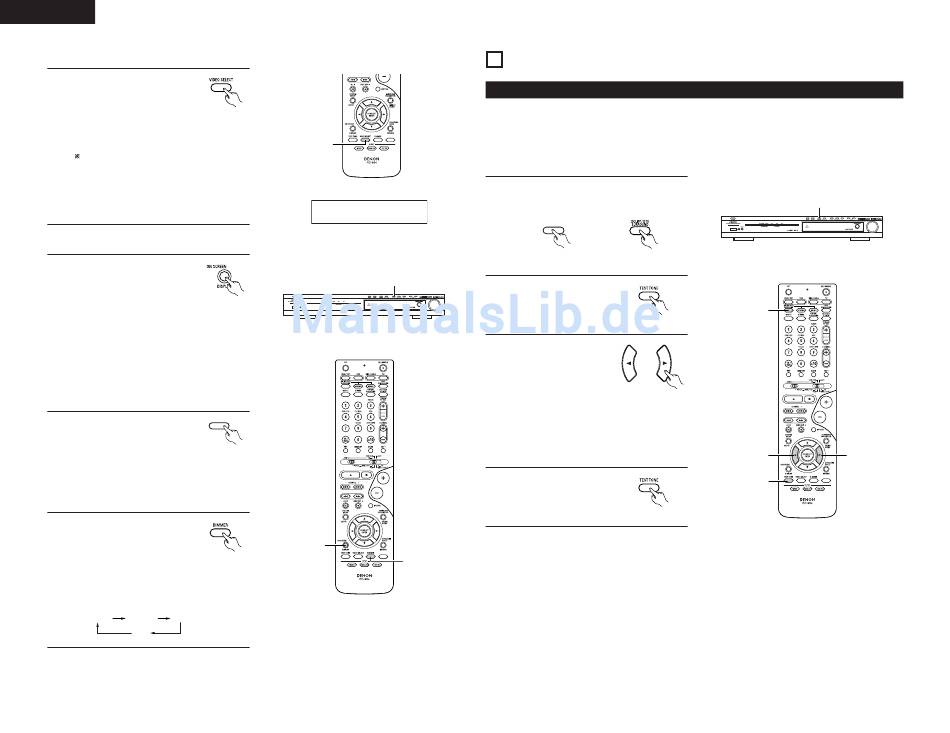

ENGLISH
[4] Combining the currently playing sound with the desired image
1
Simulcast playback
Use this switch to monitor a video
source other than the audio source.
Press the VIDEO SELECT button
repeatedly until the desired source
appears on the display.
Cancelling simulcast playback.
• Select "SOURCE" using the VIDEO
SELECT button.
• Switch the program source to the
component connected to the video input
jacks.
[5] Checking the currently playing program source, etc.
1
On screen display
• Each time an operation is
performed, a description of
that operation appears on the
display connected to the unit's
VIDEO MONITOR OUT jack.
Also, the unit's operating status can be
checked during playback by pressing the
remote control unit's ON SCREEN/DISPLAY
button.
Such information as the position of the input
selector and the surround parameter settings
is output in sequence.
2
Status
• Also, the unit's operating
status can be checked during
playback by pressing the main
unit's STATUS button.
Such information as the position of the input
selector and the surround parameter settings
is output in sequence.
3
Using the dimmer function
• Use this to change the
brightness of the display.
The display brightness changes
in four steps (bright, medium,
dim and off) by pressing the
main unit's DIMMER button
repeatedly.
BRIGHT MEDIUM DIM
OFF
22
(Remote
control unit)
1
Display
IN=V SOURCE
(Remote
control unit)
STATUS
(Main unit)
1
(Remote
control unit)
13

SURROUND

Before playing with the surround function
• Before playing with the surround function, be sure to use the test tones to adjust the playback level from the
different speakers. This adjustment can be performed with the system setup (see page 11) or from the remote
control unit, as described below.
• Adjusting with the remote control unit using the test tones is only possible in the "Auto" mode and only
effective in the DOLBY/DTS SURROUND modes. The adjusted levels for the different modes are automatically
stored in the memory.
1
Set the DOLBY/DTS SURROUND (Dolby Pro
II
Logic or Dolby Digital or DTS) modes.
DOLBY/DTS
SURROUND
(Main unit)
2
2
Press the TEST TONE button.
3
Test tones are output from
the different speakers. Use
the channel volume adjust
buttons to adjust so that
the volume of the test
tones is the same for all
the speakers.
NOTE:
• Please make sure the "AUDIO" position of
the slide switch on the remote control unit.
4
After completing the
adjustment, press the
TEST TONE button again.
3
(Remote control unit)
1
(Remote control unit)
(Remote control unit)
3
2, 4
(Remote control unit)
1
3
