Sharp VC-2300G Serviceanleitung Seite 77

C-PG AMP
OUT- PUT
1701 @) PIN
C-PG AMP
IN- PUT
TP701
MM! REFERENCE
TP707
COMPARISON
1703 (11) PIN
TRAPEZOID
1703 (12) PIN
REFERENCE
TRAPEZOID
TP704
S/H QUT- OUT
TP710

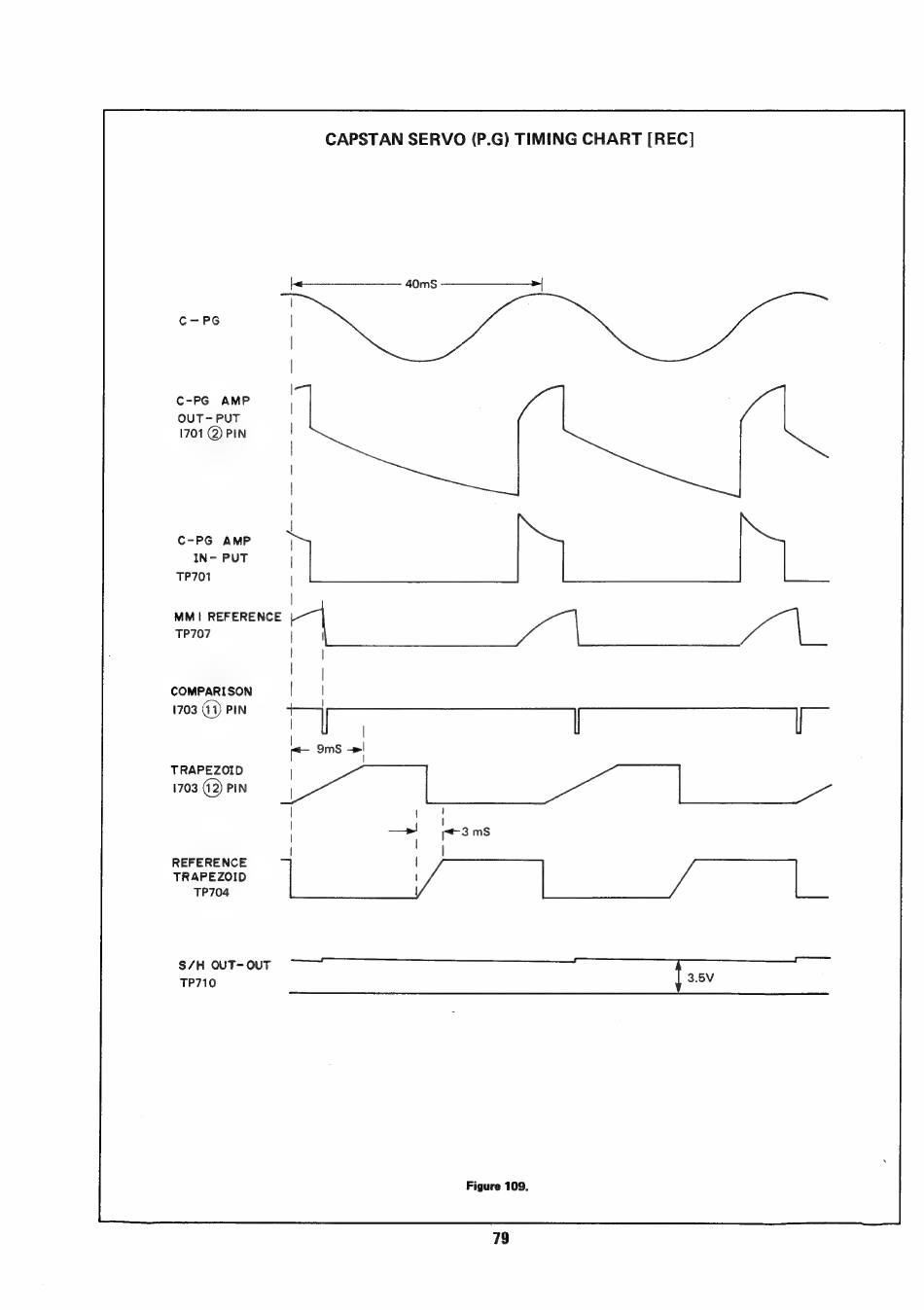

CAPSTAN SERVO (P.G) TIMING CHART [REC]
Figure 109.
