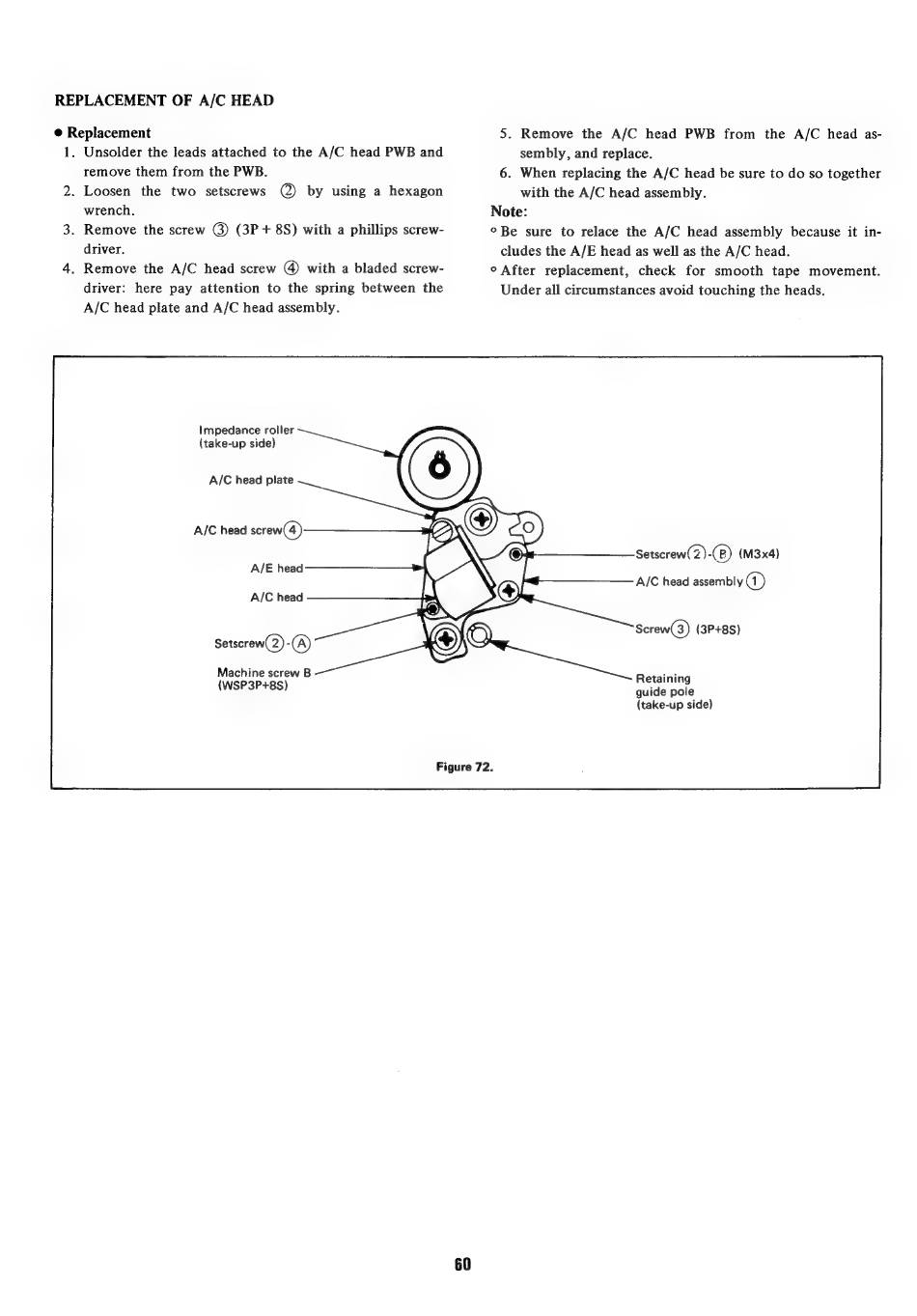

REPLACEMENT OF A/C HEAD
@ Replacement
1.
Unsolder the leads attached to the A/C head PWB and
remove them from the PWB.
Loosen the two setscrews
wrench.
Remove the screw @) (3P + 8S) with a phillips screw-
driver.
Remove the A/C head screw @ with a bladed screw-
driver: here pay attention to the spring between the
A/C head plate and A/C head assembly.
@® by using a hexagon
Impedance roller
(take-up side)
A/C head plate
A/C head screw(4)
A/E head
A/C head
Setscrew(2) -(A)
Machine screw B
(WSP3P+8S)
6.
. Remove the A/C head PWB from the A/C head as-
sembly, and replace.
When replacing the A/C head be sure to do so together
with the A/C head assembly.
Note:
° Be sure to relace the A/C head assembly because it in-
cludes the A/E head as well as the A/C head.
° After replacement, check for smooth tape movement.
Under all circumstances avoid touching the heads.
Figure 72.
Setscrew(Z)-(B) (M3x4)
A/C head assembly (1)
Screw(3) (3P+8S)
Retaining
guide pole
(take-up side)
