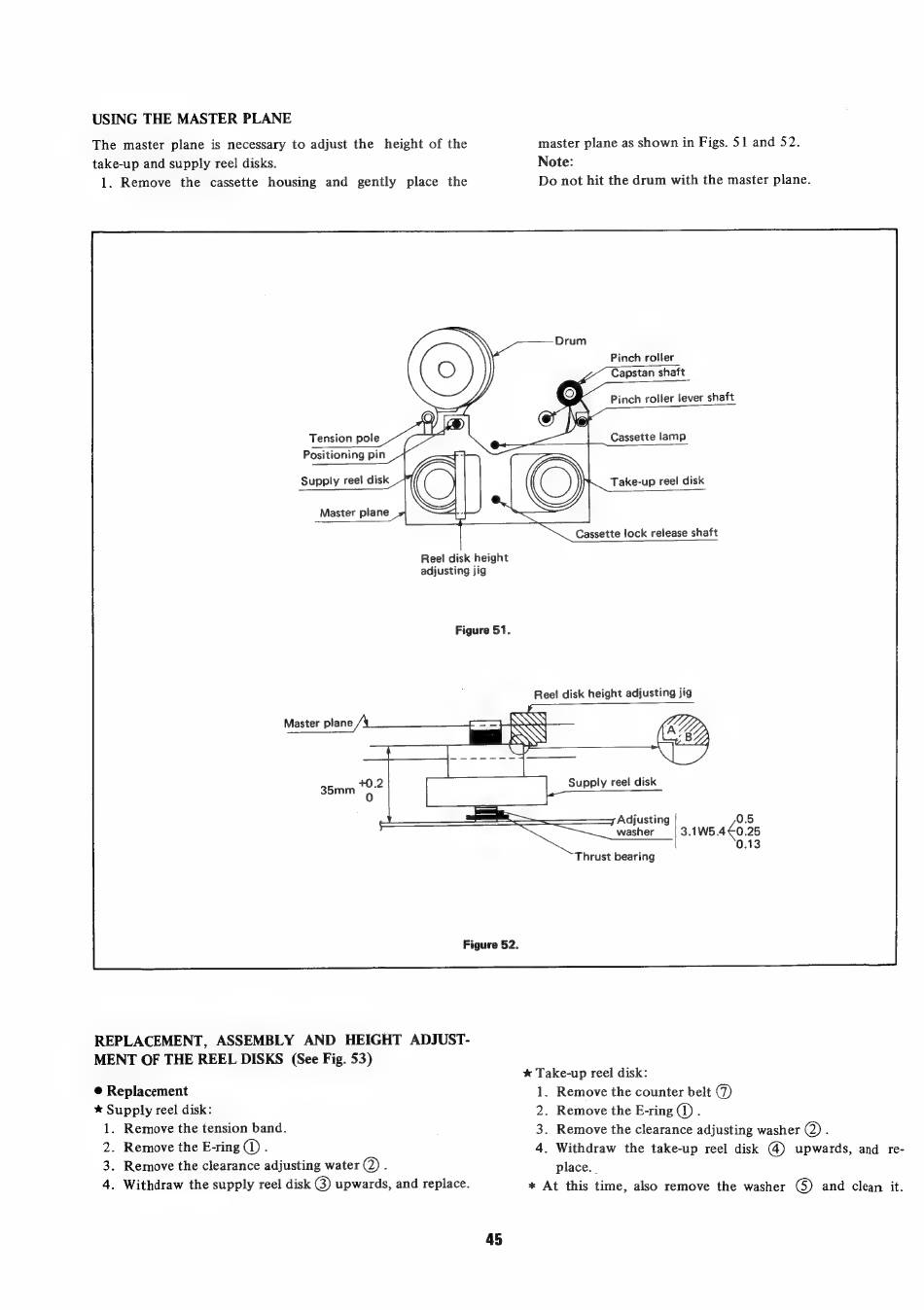

USING THE MASTER PLANE
The master plane is necessary to adjust the height of the
take-up and supply reel disks.
1. Remove the cassette housing and gently place the
Tension pole
Positioning pin
Supply reel disk
Master plane
master plane as shown in Figs. 51 and 52.
Note:
Do not hit the drum with the master plane.
Pinch roller
Capstan shaft
Cassette lamp
Take-up reel disk
Reel disk height
adjusting jig
Figure 51.
Master plane
Cassette lock release shaft
Reel disk height adjusting jig
Supply reel disk
— yz Adjusting
Figure 52.
REPLACEMENT, ASSEMBLY AND HEIGHT ADJUST-
MENT OF THE REEL DISKS (See Fig. 53)
@ Replacement
* Supply reel disk:
1. Remove the tension band.
2. Remove the E-ring @ .
3. Remove the clearance adjusting water (2) .
4. Withdraw the supply reel disk @ upwards, and replace.
45
0.5
3.1W5.4£0.25
0.13
washer |
Thrust bearing
* Take-up reel disk:
1. Remove the counter belt (7)
2. Remove the E-ring (1) .
3. Remove the clearance adjusting washer @ 4
4. Withdraw the take-up reel disk @ upwards, and re-
place.
* At this time, also remove the washer ©) and clean it.
