Separating the electrical connectors and
detaching the bottom of the cassette
17. Remove the plastic LED cover profile.
18. Loosen all (depending on the version) plug
connections whose cables protrude from the
headplate and pull them out of the cable
chamber in the bottom of the cassette.

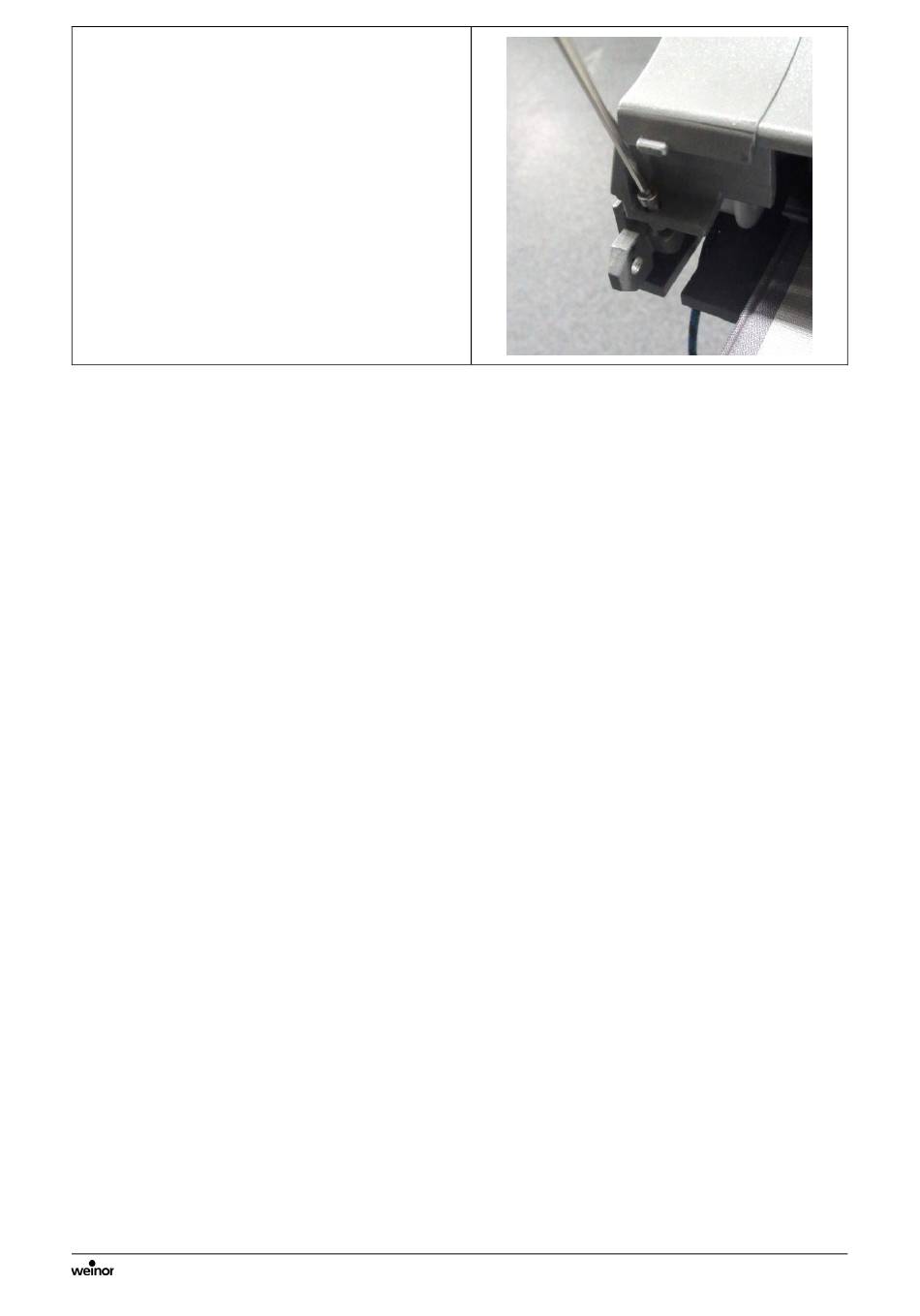

19. Loosen the M4 hexagon socket head cap
screws on the headplate and open the
cassette.
