Separate the electrical connectors and
detach the bottom of the cassette
21. Remove the plastic LED cover profile.
22. Loosen all (depending on the version) plug
connections whose cables protrude from the
headplate and pull them out of the cable
chamber in the bottom of the cassette.

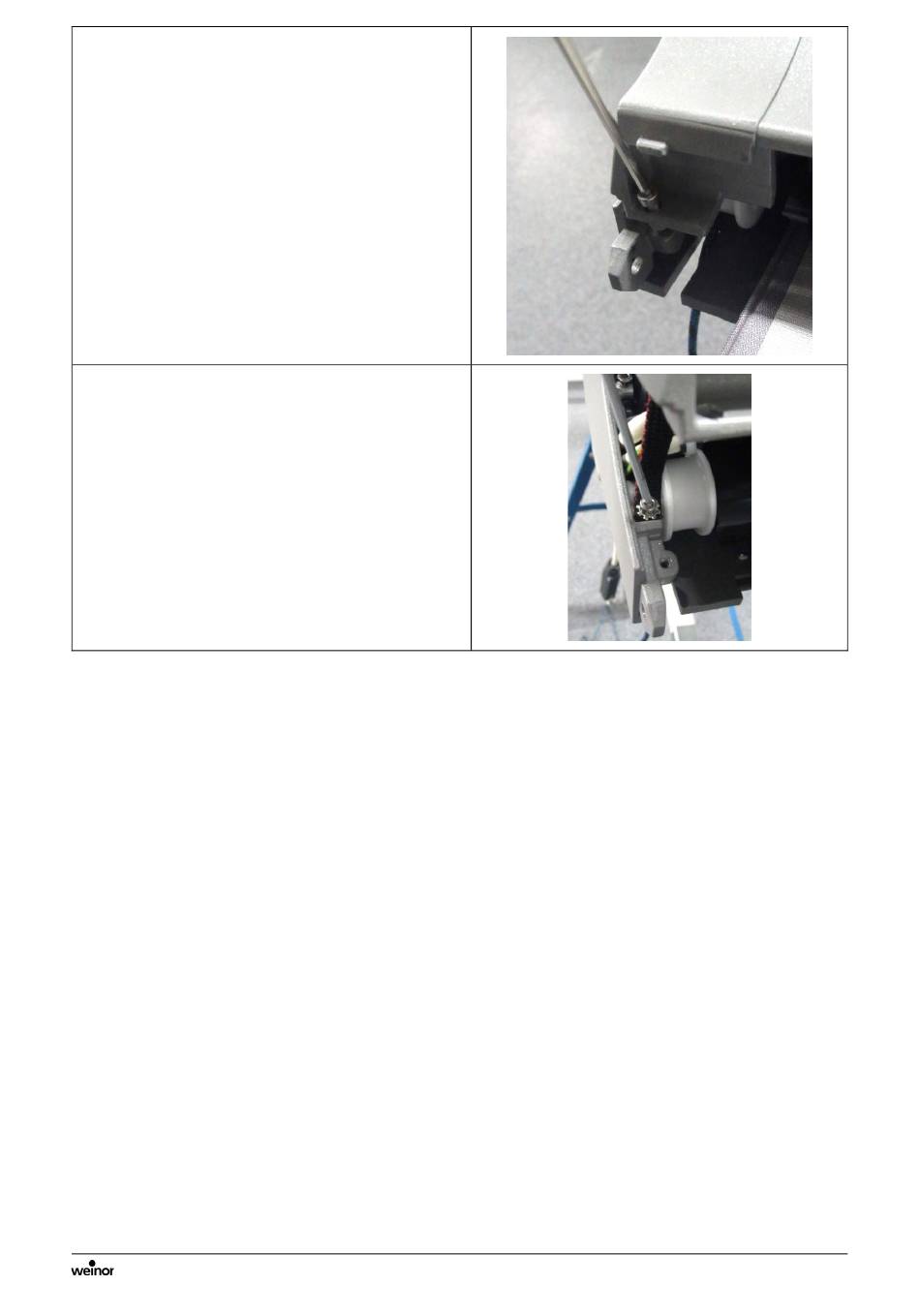

23. Loosen the M4 hexagon socket head cap
screws on the headplate and open the
cassette.
24. Loosen the screws on the straps (M4x8
hexagon socket head cap screw) in the
headplates. Make sure that the straps do not
tear.
25. Remove the bottom of the cassette and
place it so it can't get scratched.
