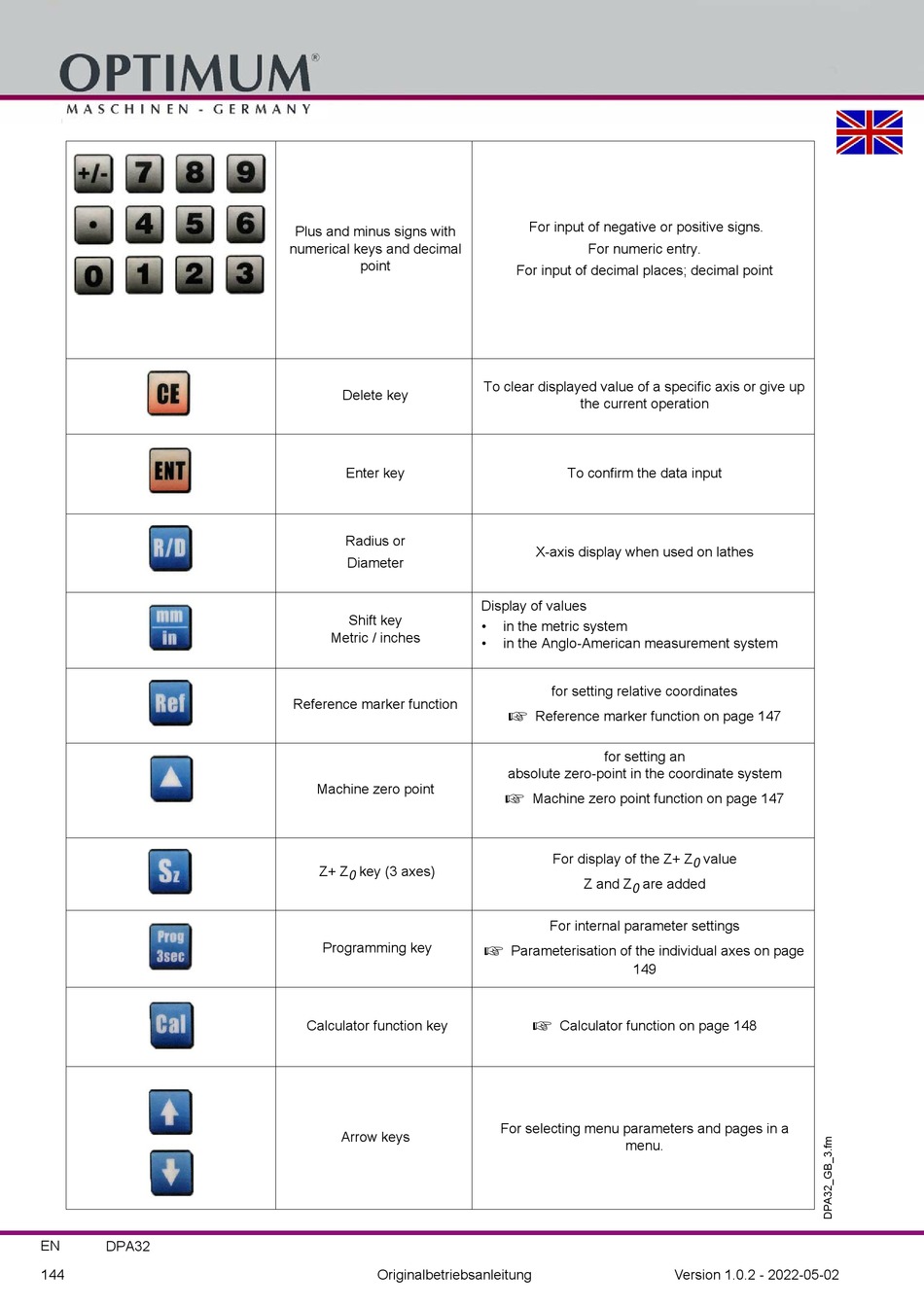

Plus and minus signs with
numerical keys and decimal
point
Delete key
Enter key
Radius or
Diameter
Shift key
Metric / inches
Reference marker function
Machine zero point
Z+ Z key (3 axes)
0
Programming key
Calculator function key
Arrow keys
Originalbetriebsanleitung
For input of negative or positive signs.
For numeric entry.
For input of decimal places; decimal point
To clear displayed value of a specific axis or give up
the current operation
To confirm the data input
X-axis display when used on lathes
Display of values
• in the metric system
• in the Anglo-American measurement system
for setting relative coordinates

Reference marker function on page 147
for setting an
absolute zero-point in the coordinate system

Machine zero point function on page 147
For display of the Z+ Z
Z and Z are added
0
For internal parameter settings

Parameterisation of the individual axes on page
149

Calculator function on page 148
For selecting menu parameters and pages in a
menu.
value
0
