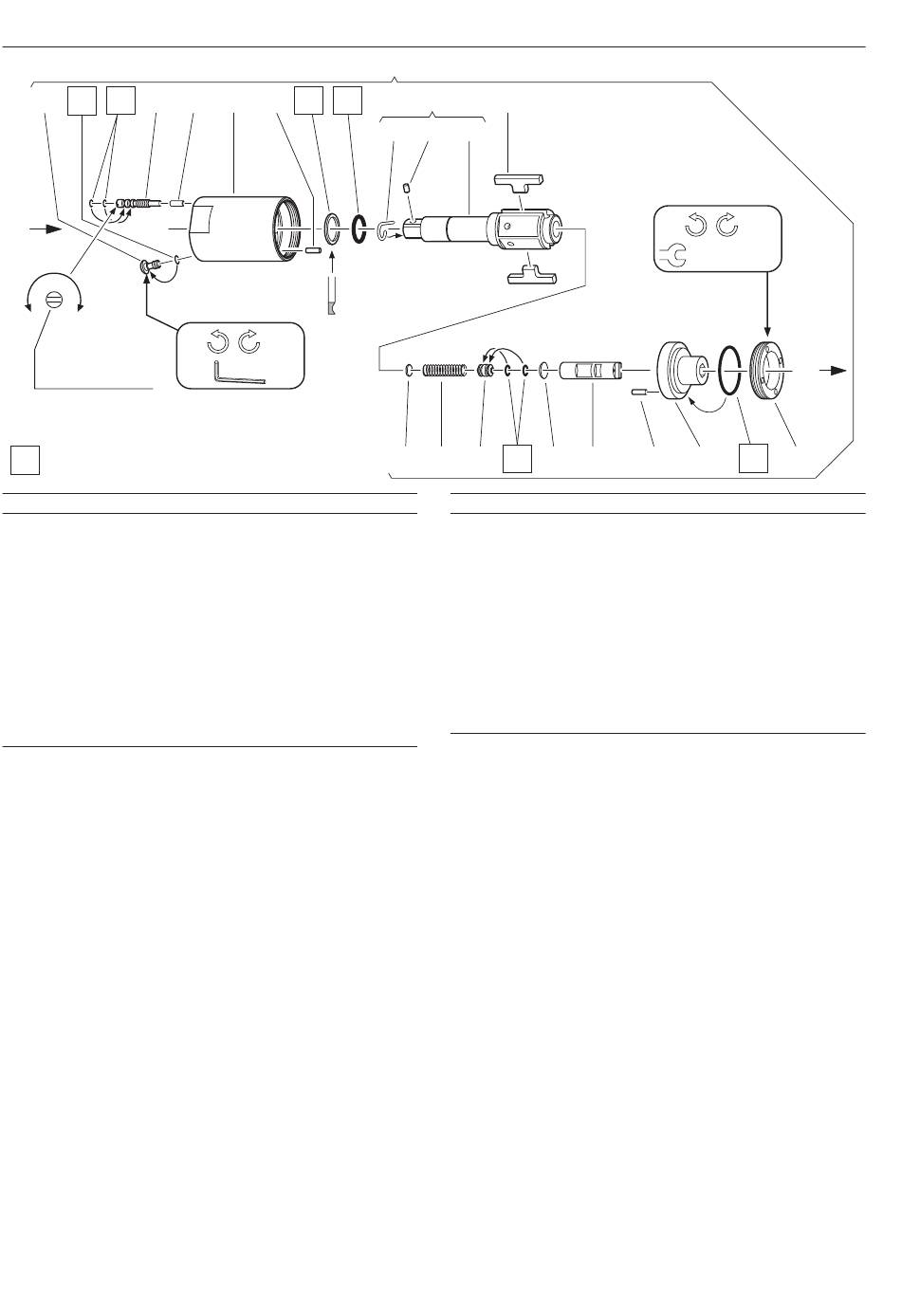

Fig. 3 Pulse unit
For EP 6XS SR – 10
158 157 155 154
A
– +
Setting of
tightening torque
= Included in O-ring Kit and Service Kit
Ref. No. Ordering No.
140 (151-180) 4250 1968 81 c
141 4250 1974 00
142 –
143 4250 1973 00
144 4250 1970 00
145 4250 2048 00
146 –
147 4250 2014 00
148 4250 2047 00
149 4250 2049 00
151 0517 0108 00
152 4250 1968 01
20
153 152 151 160 159
OFF 2 Nm
2.5 mm
NB Qty Description
1 Pulse unit
(3/8" square drive)
1 Ring screw
a,b 1 O-ring (23.5x1.8 Viton)
1 Cover
1 Cam shaft
1 Washer
a,b 2 O-ring (3.6x1.6 Viton)
1 Plunger
1 Spring
1 Filter
1 Pin (2x6.3)
1 Housing
Atlas Copco Tools – No. 9836 1501 02
140
180 167
184 183 182
149 148 147 146 145
Ref. No. Ordering No.
153 4250 1983 00
154 4250 1972 00
155
157
158 0211 1103 00
159
160
167 4250 1971 01
180 (182-184) 4250 1969 90
182
183 4250 1948 00
184 4250 1949 00
a Including in Service Kit – Ordering No. 4081 0189 90
b Including in O-ring Kit – Ordering No. 4250 2084 90
c Oil included
OFF 40 Nm
No. : 4080 0982 80
144 (151) 143 142
NB Qty Description
1 Valve
1 Adjustment screw
– a,b 2 O-ring (2.1x1.3 Viton)
– a,b 1 O-ring (2.6x1 Viton)
1 Plug (M3x5)
– a,b 1 O-ring (12.3x2.4 Viton)
– a,b 1 Support ring (13/17Hytrel)
2 Vane
1 Anvil, compl. (3/8" sq.)
– 1 Anvil
1 Retainer pin
1 Spring
9836 1501 00 c / 90
C
141
