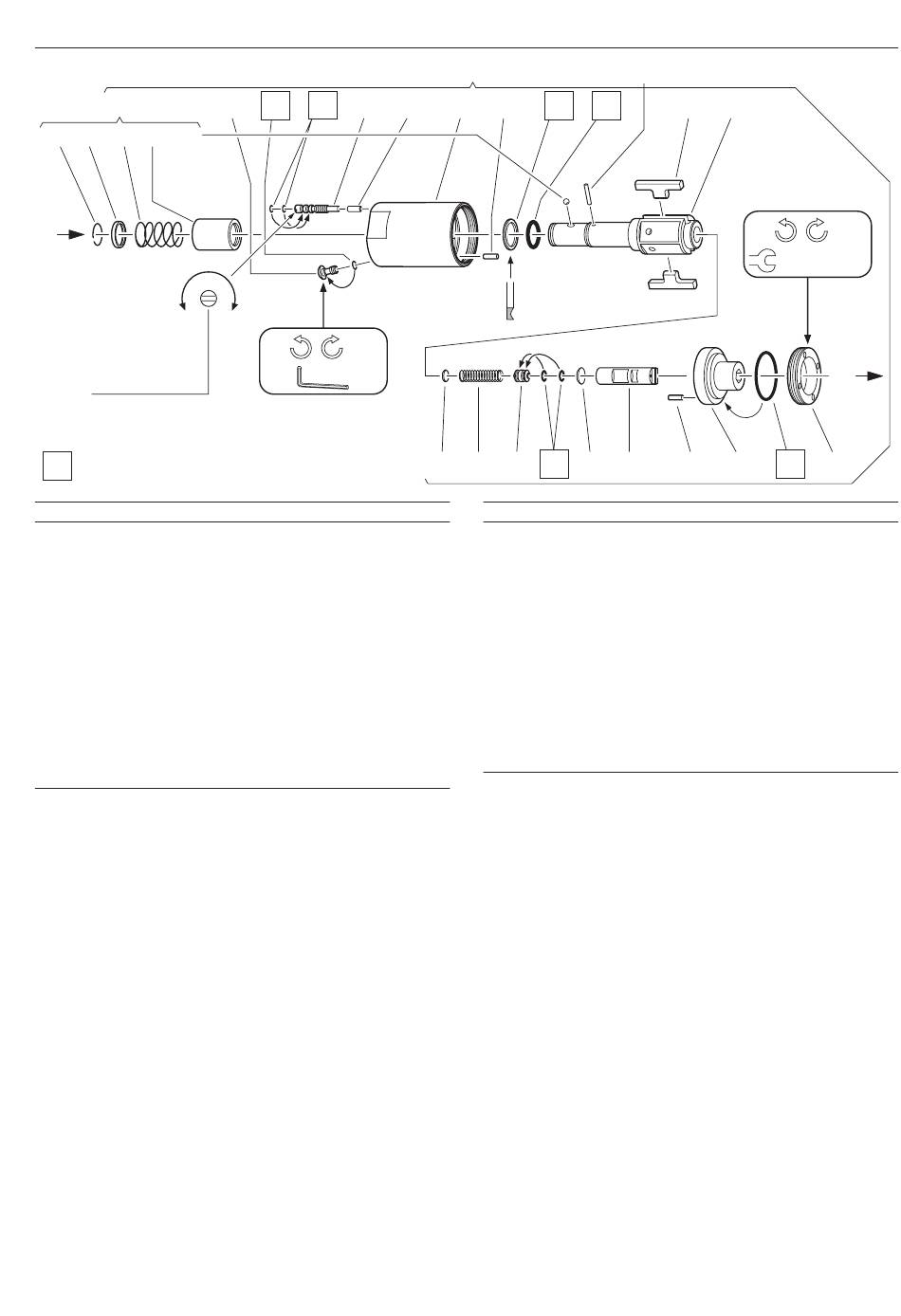

Fig. 4 Pulse unit
For EP 6XS SR – 42
170
175
174
173
172
171
B
–
Setting of
tightening torque
= Included in O-ring Kit and Service Kit
Ref. No.
Ordering No.
140 (141-185) 4250 2043 81 c
141
4250 1974 00
142
–
143
4250 1973 00
144
4250 1970 00
145
4250 2048 00
146
–
147
4250 2014 00
148
4250 2050 00
149
4250 2049 00
151
0517 0108 00
152
4250 1968 01
153
4250 1983 00
154
4250 1972 00
158
157
155
154
+
OFF
2 Nm
2.5 mm
NB
Qty
Description
1
Pulse unit
(1/4" female hexagon drive)
1
Ring screw
a,b
1
O-ring (23.5x1.8 Viton)
1
Cover
1
Cam shaft
1
Washer
a,b
2
O-ring (3.6x1.6 Viton)
1
Plunger
1
Spring
1
Filter
1
Pin (2x6.3)
1
Housing
1
Valve
1
Adjustment screw
Atlas Copco Tools – No. 9836 1501 02
140
153
152
151
160
149
148
147
146
Ref. No.
155
157
158
0211 1103 00
159
160
167
4250 1971 01
170 (171-175) 4250 1770 91
171
0517 1104 00
172
173
174
175
0335 3512 04
185
4250 2043 00
210
0106 8152 00
a
Including in Service Kit – Ordering No. 4081 0189 90
b
Including in O-ring Kit – Ordering No. 4250 2084 90
c
Oil included
210
159
167
185
145
144
(151)
143
Ordering No.
NB
Qty
Description
–
a,b
2
O-ring (2.1x1.3 Viton)
–
a,b
1
O-ring (2.6x1 Viton)
1
Plug (M3x5)
–
a,b
1
O-ring (12.3x2.4 Viton)
–
a,b
1
Support ring (13/17Hytrel)
2
Vane
1
Quick change chuck,compl.
1
Ball (3.5")
–
1
Sleeve
–
1
Spring
–
1
Washer
1
Lock ring (RW12x1)
1
Anvil (1/4" hex.)
1
Pin (RPE 2x12)
9836 1501 00 d / 90
OFF
40 Nm
No. : 4080 0982 80
C
142
141
21
