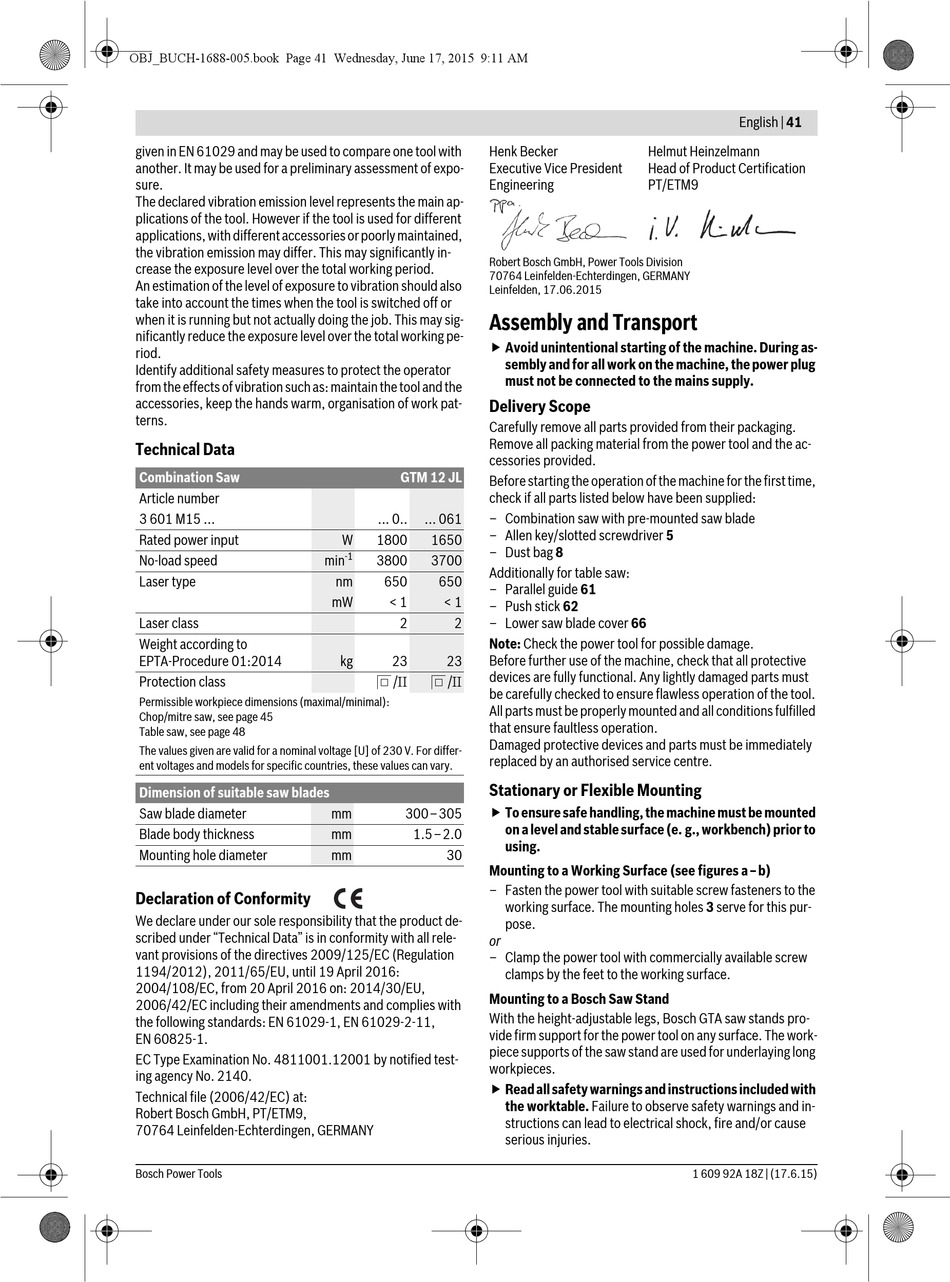

given in EN 61029 and may be used to compare one tool with
another. It may be used for a preliminary assessment of expo-
sure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or poorly maintained,
the vibration emission may differ. This may significantly in-
crease the exposure level over the total working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working pe-
riod.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.
Technical Data
Combination Saw
Article number
3 601 M15 ...
Rated power input
No-load speed
Laser type
Laser class
Weight according to
EPTA-Procedure 01:2014
Protection class
Permissible workpiece dimensions (maximal/minimal):
Chop/mitre saw, see page 45
Table saw, see page 48
The values given are valid for a nominal voltage [U] of 230 V. For differ-
ent voltages and models for specific countries, these values can vary.
Dimension of suitable saw blades
Saw blade diameter
Blade body thickness
Mounting hole diameter
Declaration of Conformity
We declare under our sole responsibility that the product de-
scribed under "Technical Data" is in conformity with all rele-
vant provisions of the directives 2009/125/EC (Regulation
1194/2012), 2011/65/EU, until 19 April 2016:
2004/108/EC, from 20 April 2016 on: 2014/30/EU,
2006/42/EC including their amendments and complies with
the following standards: EN 61029-1, EN 61029-2-11,
EN 60825-1.
EC Type Examination No. 4811001.12001 by notified test-
ing agency No. 2140.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
70764 Leinfelden-Echterdingen, GERMANY
Bosch Power Tools
Henk Becker
Executive Vice President
Engineering
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Leinfelden, 17.06.2015
Assembly and Transport
 Avoid unintentional starting of the machine. During as-
Delivery Scope
Carefully remove all parts provided from their packaging.
Remove all packing material from the power tool and the ac-
cessories provided.
GTM 12 JL
Before starting the operation of the machine for the first time,
check if all parts listed below have been supplied:
– Combination saw with pre-mounted saw blade
... 0.. ... 061
– Allen key/slotted screwdriver 5
W 1800 1650
– Dust bag 8
-1
min 3800 3700
Additionally for table saw:
nm 650 650
– Parallel guide 61
mW < 1 < 1
– Push stick 62
2 2 – Lower saw blade cover 66
Note: Check the power tool for possible damage.
kg 23 23 Before further use of the machine, check that all protective
devices are fully functional. Any lightly damaged parts must
/II /II
be carefully checked to ensure flawless operation of the tool.
All parts must be properly mounted and all conditions fulfilled
that ensure faultless operation.
Damaged protective devices and parts must be immediately
replaced by an authorised service centre.
Stationary or Flexible Mounting
 To ensure safe handling, the machine must be mounted
mm 300–305
mm 1.5–2.0
mm 30
Mounting to a Working Surface (see figures a–b)
– Fasten the power tool with suitable screw fasteners to the
or
– Clamp the power tool with commercially available screw
Mounting to a Bosch Saw Stand
With the height-adjustable legs, Bosch GTA saw stands pro-
vide firm support for the power tool on any surface. The work-
piece supports of the saw stand are used for underlaying long
workpieces.
 Read all safety warnings and instructions included with
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
sembly and for all work on the machine, the power plug
must not be connected to the mains supply.
on a level and stable surface (e. g., workbench) prior to
using.
working surface. The mounting holes 3 serve for this pur-
pose.
clamps by the feet to the working surface.
the worktable. Failure to observe safety warnings and in-
structions can lead to electrical shock, fire and/or cause
serious injuries.
