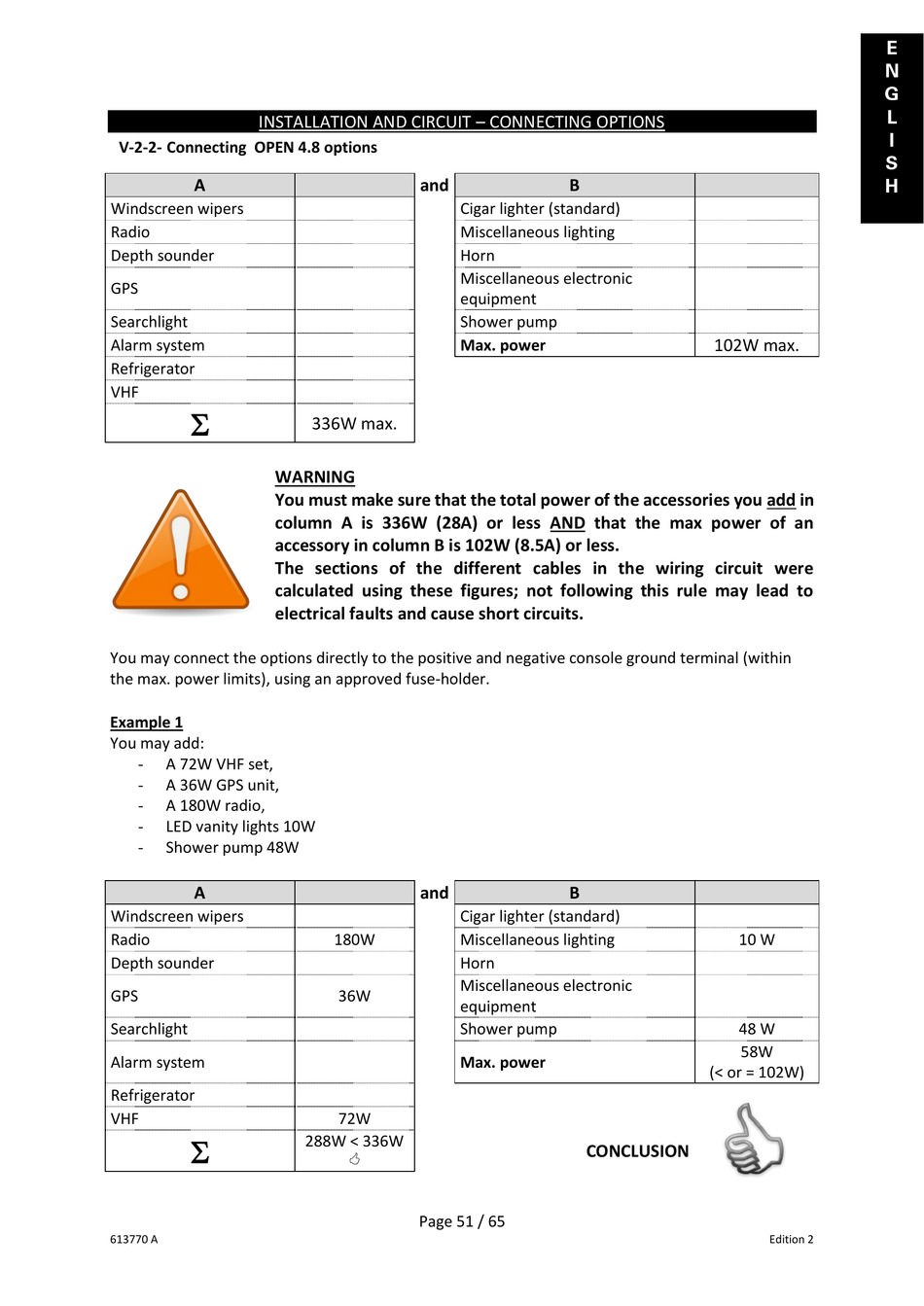

INSTALLATION AND CIRCUIT – CONNECTING OPTIONS

V-2-2- Connecting OPEN 4.8 options

A
Windscreen wipers
Radio
Depth sounder
GPS
Searchlight
Alarm system
Refrigerator
VHF

WARNING
You must make sure that the total power of the accessories you add in
column A is 336W (28A) or less AND that the max power of an
accessory in column B is 102W (8.5A) or less.
The sections of the different cables in the wiring circuit were
calculated using these figures; not following this rule may lead to
electrical faults and cause short circuits.
You may connect the options directly to the positive and negative console ground terminal (within
the max. power limits), using an approved fuse-holder.
Example 1
You may add:
A 72W VHF set,
-
A 36W GPS unit,
-
A 180W radio,
-
LED vanity lights 10W
-
Shower pump 48W
-
A
Windscreen wipers
Radio
Depth sounder
GPS
Searchlight
Alarm system
Refrigerator
VHF

613770 A
and
Cigar lighter (standard)
Miscellaneous lighting
Horn
Miscellaneous electronic
equipment
Shower pump
Max. power
336W max.
and
Cigar lighter (standard)
180W Miscellaneous lighting
Horn
Miscellaneous electronic
36W
equipment
Shower pump
Max. power
72W
288W < 336W

Page 51 / 65
B
102W max.
B
10 W
48 W
58W
(< or = 102W)
