Operating Manual MSA 330 /MSA 340
3

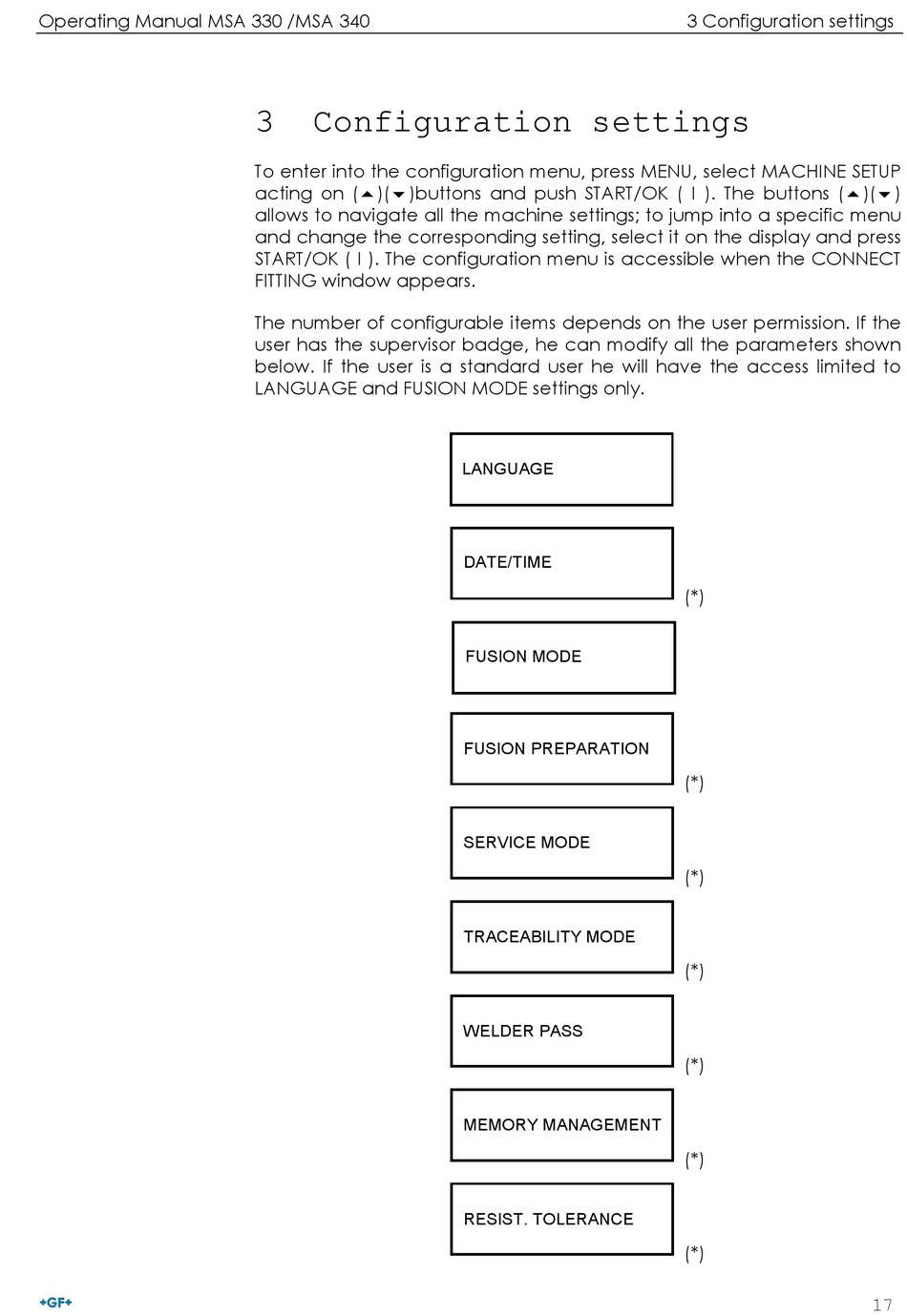

Configuration settings

To enter into the configuration menu, press MENU, select MACHINE SETUP
acting on ()()buttons and push START/OK ( I ). The buttons ()()
allows to navigate all the machine settings; to jump into a specific menu
and change the corresponding setting, select it on the display and press
START/OK ( I ). The configuration menu is accessible when the CONNECT
FITTING window appears.
The number of configurable items depends on the user permission. If the
user has the supervisor badge, he can modify all the parameters shown
below. If the user is a standard user he will have the access limited to
LANGUAGE and FUSION MODE settings only.
LANGUAGE
DATE/TIME
FUSION MODE
FUSION PREPARATION
SERVICE MODE
TRACEABILITY MODE
WELDER PASS
MEMORY MANAGEMENT
RESIST. TOLERANCE
3 Configuration settings
--
(*)
------
(*)
(*)
(*)
(*)
(*)
(*)
17
