3 Configuration settings
Attention
22

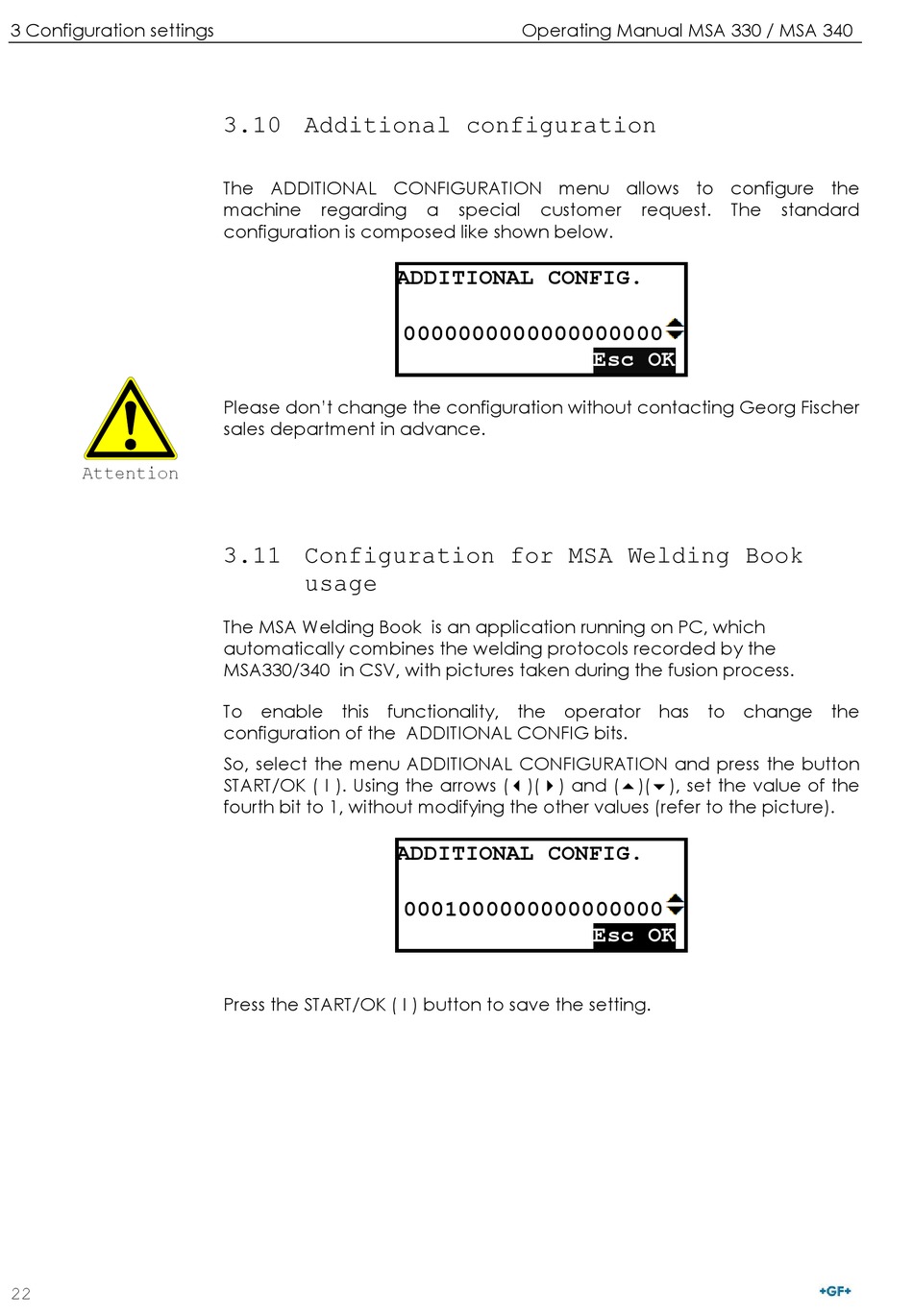

3.10 Additional configuration

The ADDITIONAL CONFIGURATION menu allows to configure the
machine regarding
configuration is composed like shown below.
Please don't change the configuration without contacting Georg Fischer
sales department in advance.
3.11 Configuration for MSA Welding Book
usage
The MSA Welding Book is an application running on PC, which
automatically combines the welding protocols recorded by the
MSA330/340 in CSV, with pictures taken during the fusion process.
To enable this functionality, the operator has to change the
configuration of the ADDITIONAL CONFIG bits.
So, select the menu ADDITIONAL CONFIGURATION and press the button
START/OK ( I ). Using the arrows ()() and ()(), set the value of the
fourth bit to 1, without modifying the other values (refer to the picture).
Press the START/OK ( I ) button to save the setting.
Operating Manual MSA 330 / MSA 340
a special customer
ADDITIONAL CONFIG.
0000000000000000000
ADDITIONAL CONFIG.
0001000000000000000
request. The
Esc OK
Esc OK
standard
