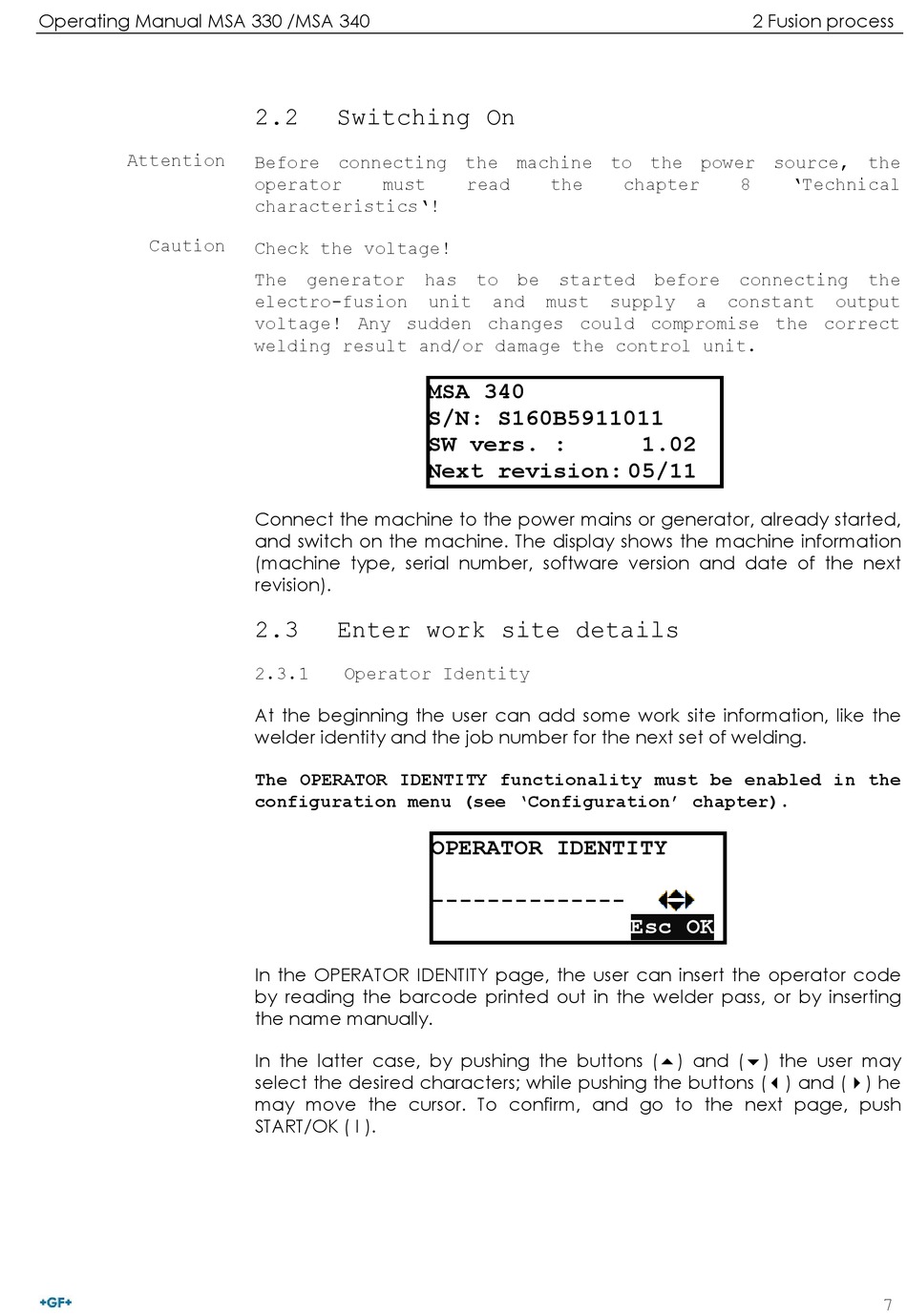

Operating Manual MSA 330 /MSA 340
Attention
Caution
2.2

Switching On

Before connecting the machine to the power source, the
operator must
characteristics'!
Check the voltage!
The generator has to
electro-fusion
voltage! Any sudden changes could compromise the correct
welding result and/or damage the control unit.
Connect the machine to the power mains or generator, already started,
and switch on the machine. The display shows the machine information
(machine type, serial number, software version and date of the next
revision).
2.3

Enter work site details

2.3.1

Operator Identity

At the beginning the user can add some work site information, like the
welder identity and the job number for the next set of welding.
The OPERATOR IDENTITY functionality must be enabled in the
configuration menu (see 'Configuration' chapter).
In the OPERATOR IDENTITY page, the user can insert the operator code
by reading the barcode printed out in the welder pass, or by inserting
the name manually.
In the latter case, by pushing the buttons () and () the user may
select the desired characters; while pushing the buttons () and () he
may move the cursor. To confirm, and go to the next page, push
START/OK ( I ).
read the
be started before
unit and must
MSA 340
S/N: S160B5911011
SW vers. :
Next revision: 05/11
OPERATOR IDENTITY
--------------
2 Fusion process
chapter 8
connecting
supply a constant
1.02
Esc OK
'Technical
the
output
7
