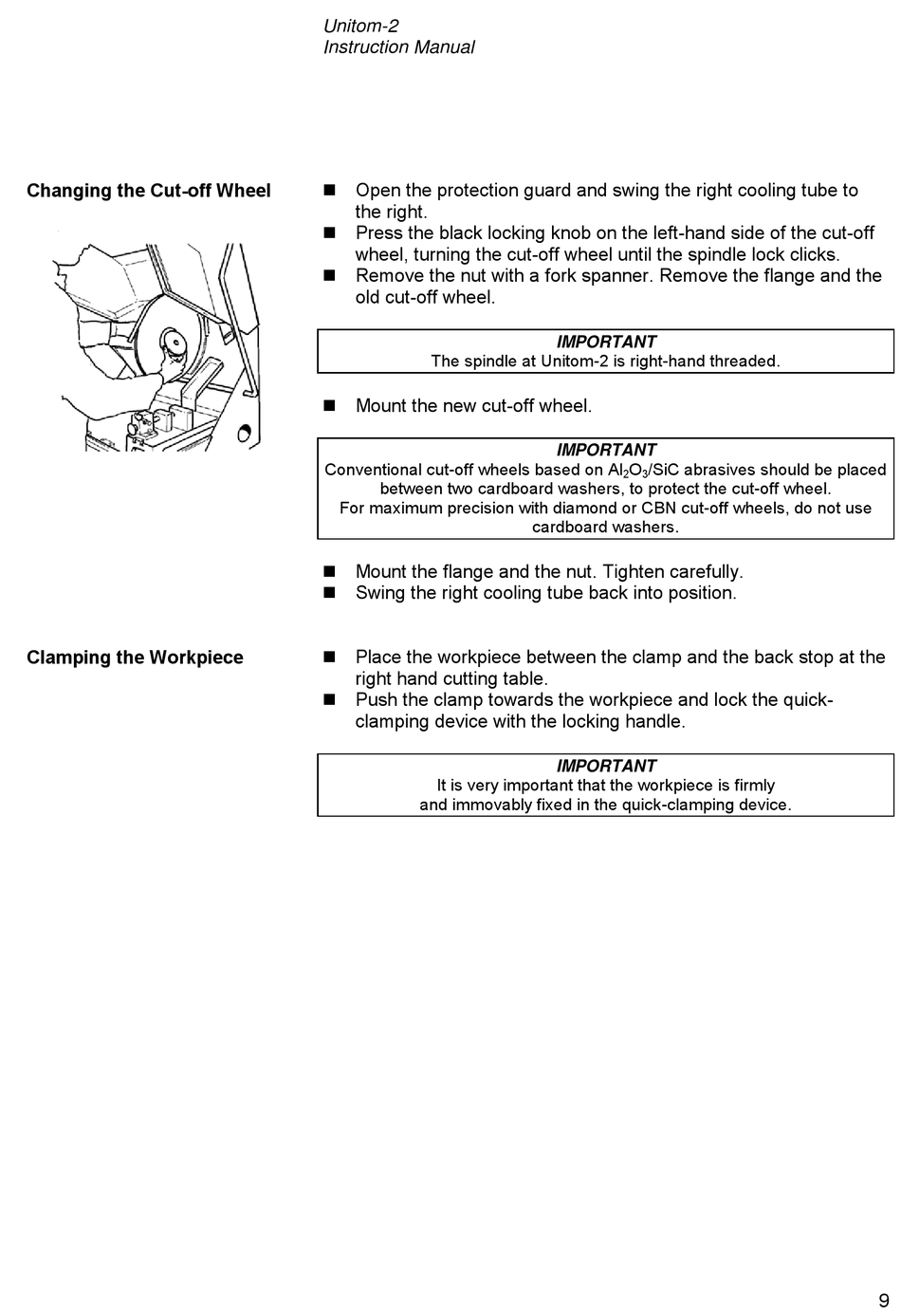

Changing the Cut-off Wheel

Clamping the Workpiece

Unitom-2
Instruction Manual
 Open the protection guard and swing the right cooling tube to
the right.
 Press the black locking knob on the left-hand side of the cut-off
wheel, turning the cut-off wheel until the spindle lock clicks.
 Remove the nut with a fork spanner. Remove the flange and the
old cut-off wheel.
The spindle at Unitom-2 is right-hand threaded.
 Mount the new cut-off wheel.
Conventional cut-off wheels based on Al
between two cardboard washers, to protect the cut-off wheel.
For maximum precision with diamond or CBN cut-off wheels, do not use
 Mount the flange and the nut. Tighten carefully.
 Swing the right cooling tube back into position.
 Place the workpiece between the clamp and the back stop at the
right hand cutting table.
 Push the clamp towards the workpiece and lock the quick-
clamping device with the locking handle.
It is very important that the workpiece is firmly
and immovably fixed in the quick-clamping device.
IMPORTANT
IMPORTANT
O /SiC abrasives should be placed
2 3
cardboard washers.
IMPORTANT
