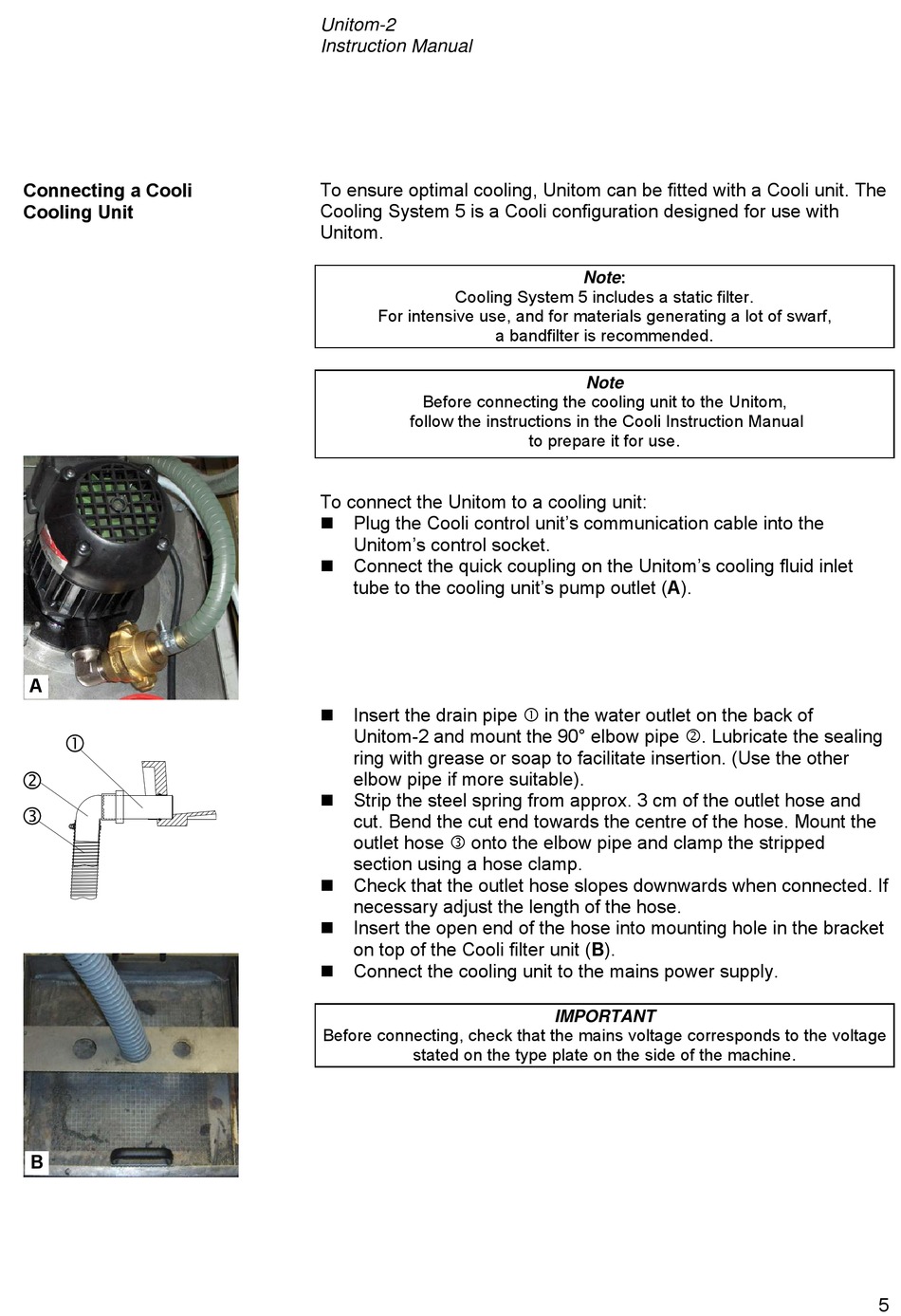

To ensure optimal cooling, Unitom can be fitted with a Cooli unit. The
Cooling System 5 is a Cooli configuration designed for use with
Unitom.
Cooling System 5 includes a static filter.
For intensive use, and for materials generating a lot of swarf,
Before connecting the cooling unit to the Unitom,
follow the instructions in the Cooli Instruction Manual
To connect the Unitom to a cooling unit:
Plug the Cooli control unit's communication cable into the

Unitom's control socket.
Connect the quick coupling on the Unitom's cooling fluid inlet

tube to the cooling unit's pump outlet (A).
Insert the drain pipe  in the water outlet on the back of

Unitom-2 and mount the 90° elbow pipe . Lubricate the sealing
ring with grease or soap to facilitate insertion. (Use the other
elbow pipe if more suitable).
Strip the steel spring from approx. 3 cm of the outlet hose and

cut. Bend the cut end towards the centre of the hose. Mount the
outlet hose  onto the elbow pipe and clamp the stripped
section using a hose clamp.
Check that the outlet hose slopes downwards when connected. If

necessary adjust the length of the hose.
Insert the open end of the hose into mounting hole in the bracket

on top of the Cooli filter unit (B).
Connect the cooling unit to the mains power supply.

Before connecting, check that the mains voltage corresponds to the voltage
stated on the type plate on the side of the machine.
Note:
a bandfilter is recommended.
Note
to prepare it for use.
IMPORTANT
