General
3.2

Survey and construction

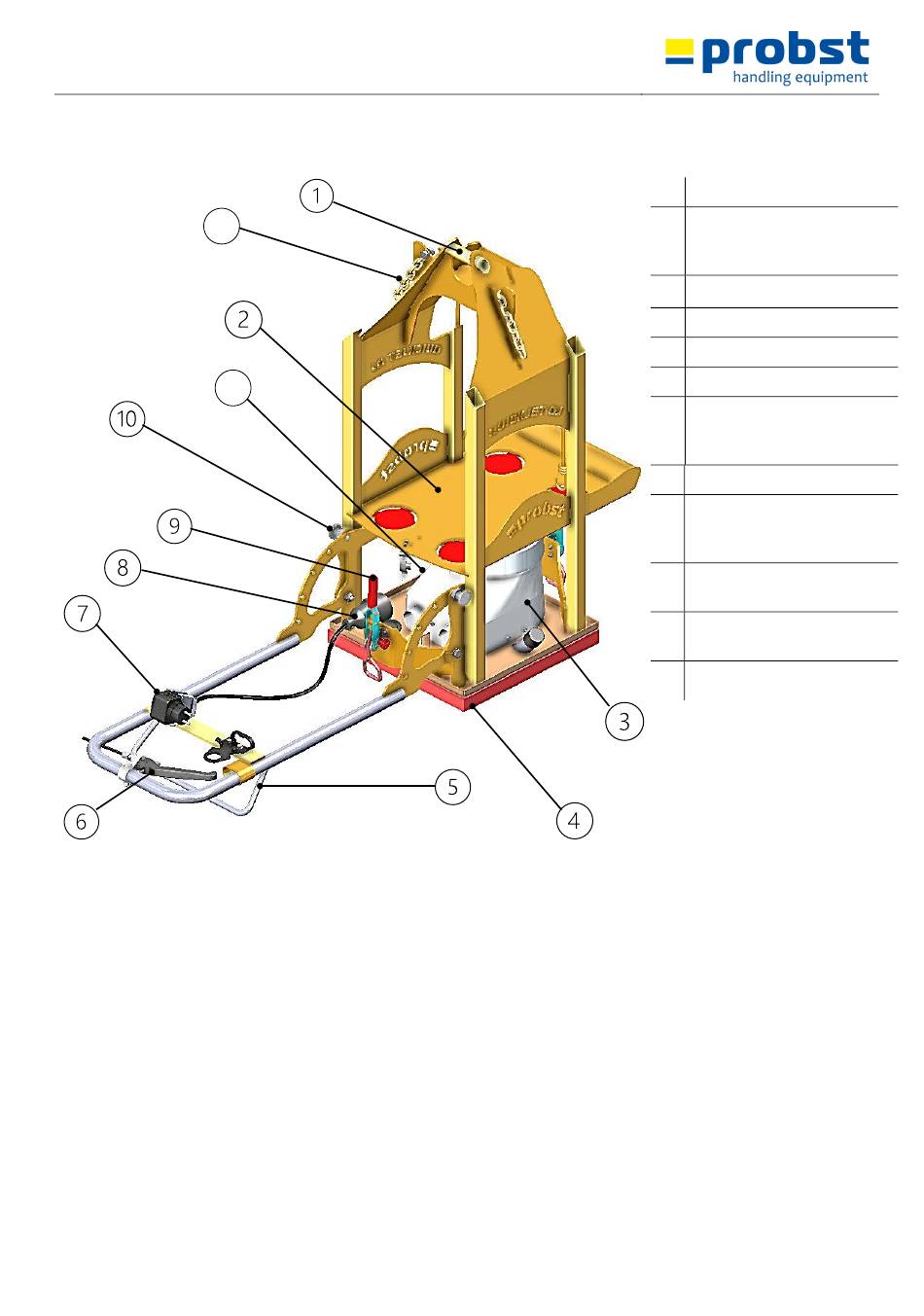

Fig. 1
12
11
52400045 / 52400049 15 / 29
1 Suspension bolt
2 Assembly position for
accessories „power
generator EU 22
3 Blower unit
4 Suction plate ESP 120-38/38
5 Schutzbügel
6 Handle with operating lever
7 Netzstecker für externe
Stromversorgung
(230 V / 110 V)
8 Socket for blower unit (3)
9 Locking spanner for
mounting the accessories
Suction plates
10 Spring bolt for adjust the
position of the handgrip
11 Power plug of the blower
unit
12 Load securing chain
