Survey And Construction; Technical Data - probst EXG Betriebsanleitung

General
3.2

Survey and construction

3.3

Technical Data

Type Gripping Range
EXG 0 - 300 mm
(0 – 11¾")
53100370
Fig. 1
Inside Height Gripper Lenght L
E
145 – 195 mm 235 mm
(5¾ - 7 ¾ ") (9¼")
11 / 20

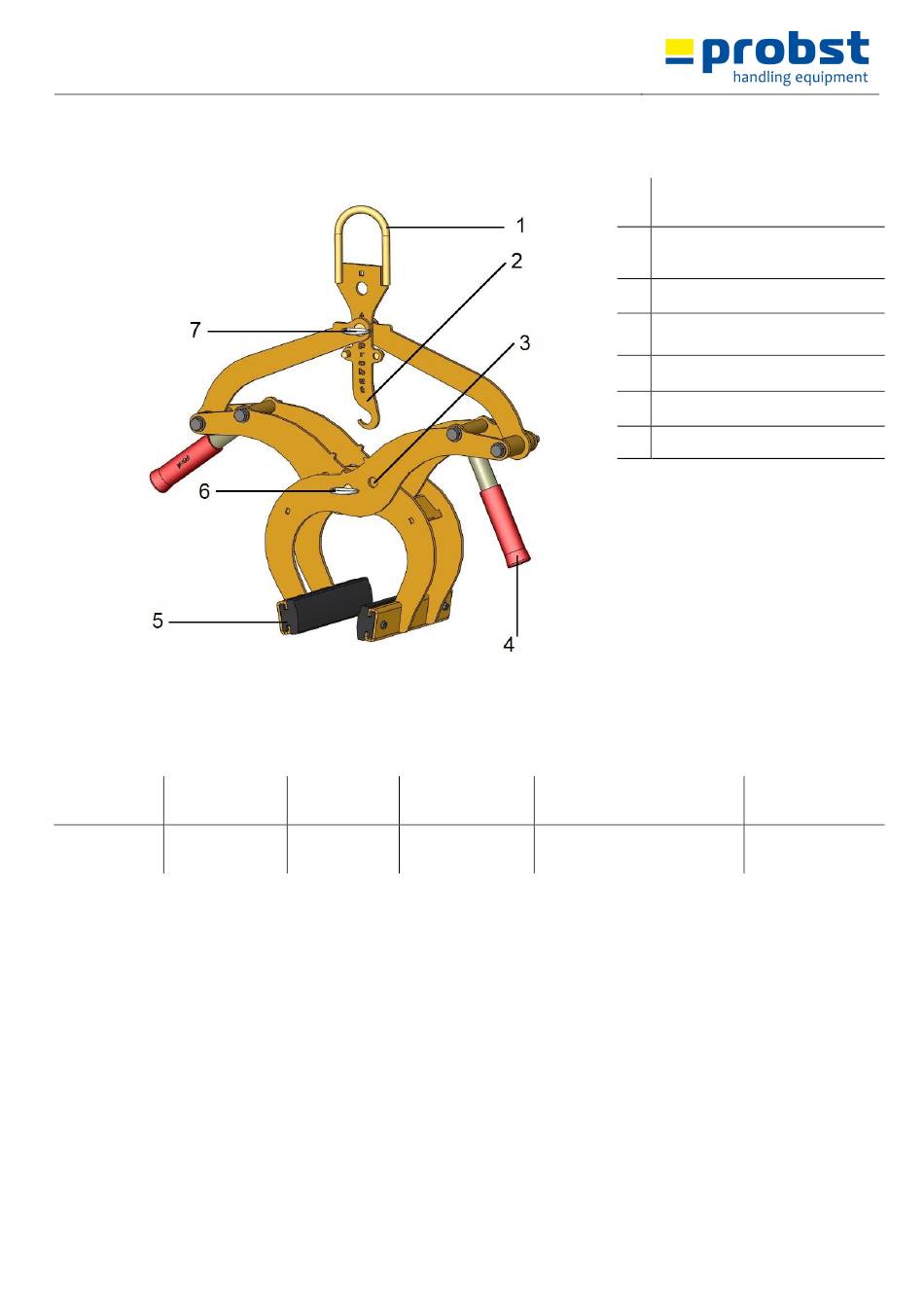

1 Suspension lug for support
frame
2 Locking hook (to transport the
device without a gripping good)
3 Adjusting hole for gripping
range
Handle (for manual operation)
4
5 Rubber grippers
6 Plug bolt with linchpin
7 Plug bolt with linchpin
Carrying capacity/working
load limit (WLL):
550 kg
(1,210 lbs)
Dead Weight
12 kg
(26 lbs)
