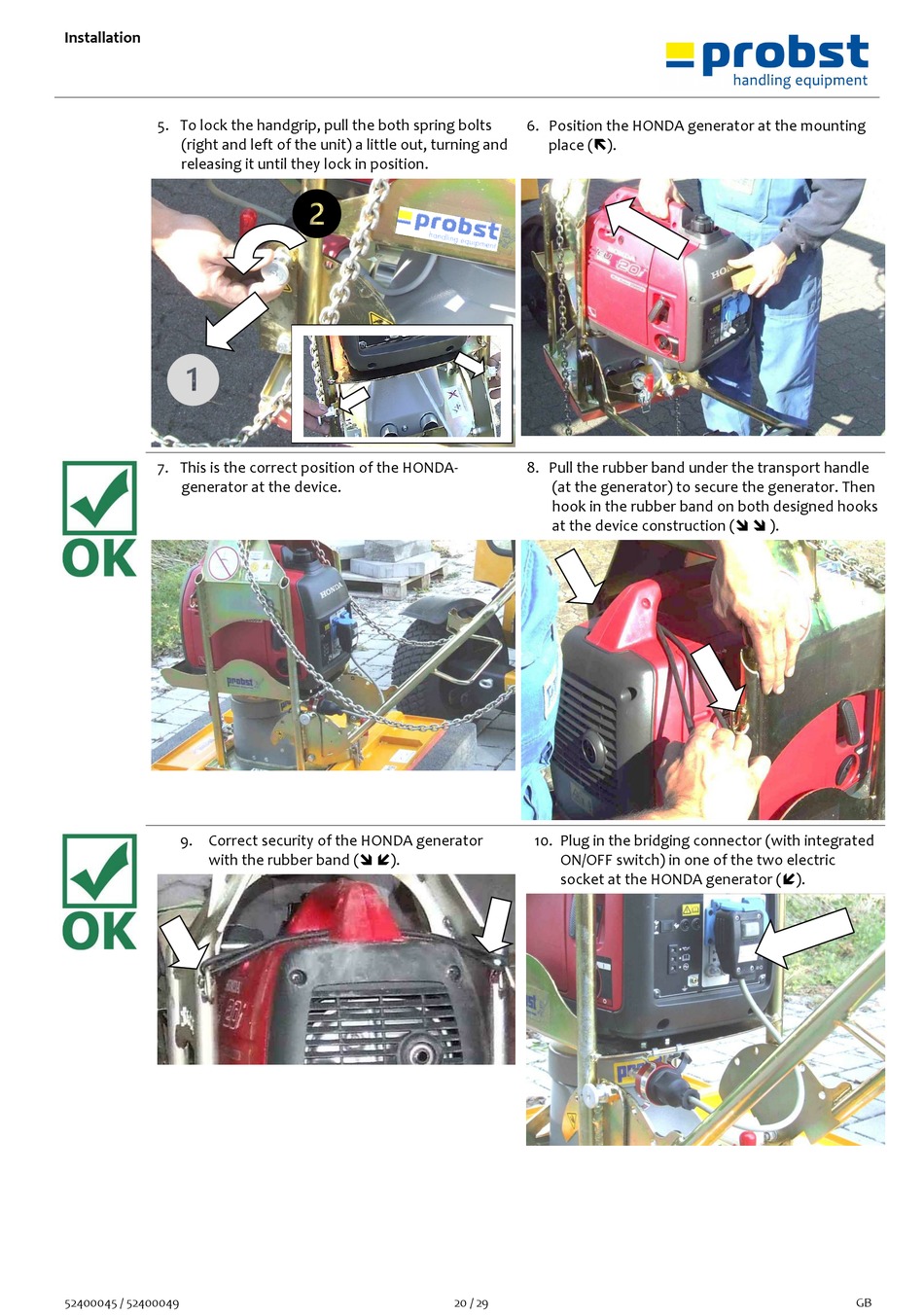

Installation
5. To lock the handgrip, pull the both spring bolts
(right and left of the unit) a little out, turning and
releasing it until they lock in position.
7. This is the correct position of the HONDA-
generator at the device.
9. Correct security of the HONDA generator
with the rubber band ( ).
52400045 / 52400049
6. Position the HONDA generator at the mounting
place ().
8. Pull the rubber band under the transport handle
(at the generator) to secure the generator. Then
hook in the rubber band on both designed hooks
at the device construction (  ).
10. Plug in the bridging connector (with integrated
ON/OFF switch) in one of the two electric
socket at the HONDA generator ().
20 / 29 GB
