Installation
4.3

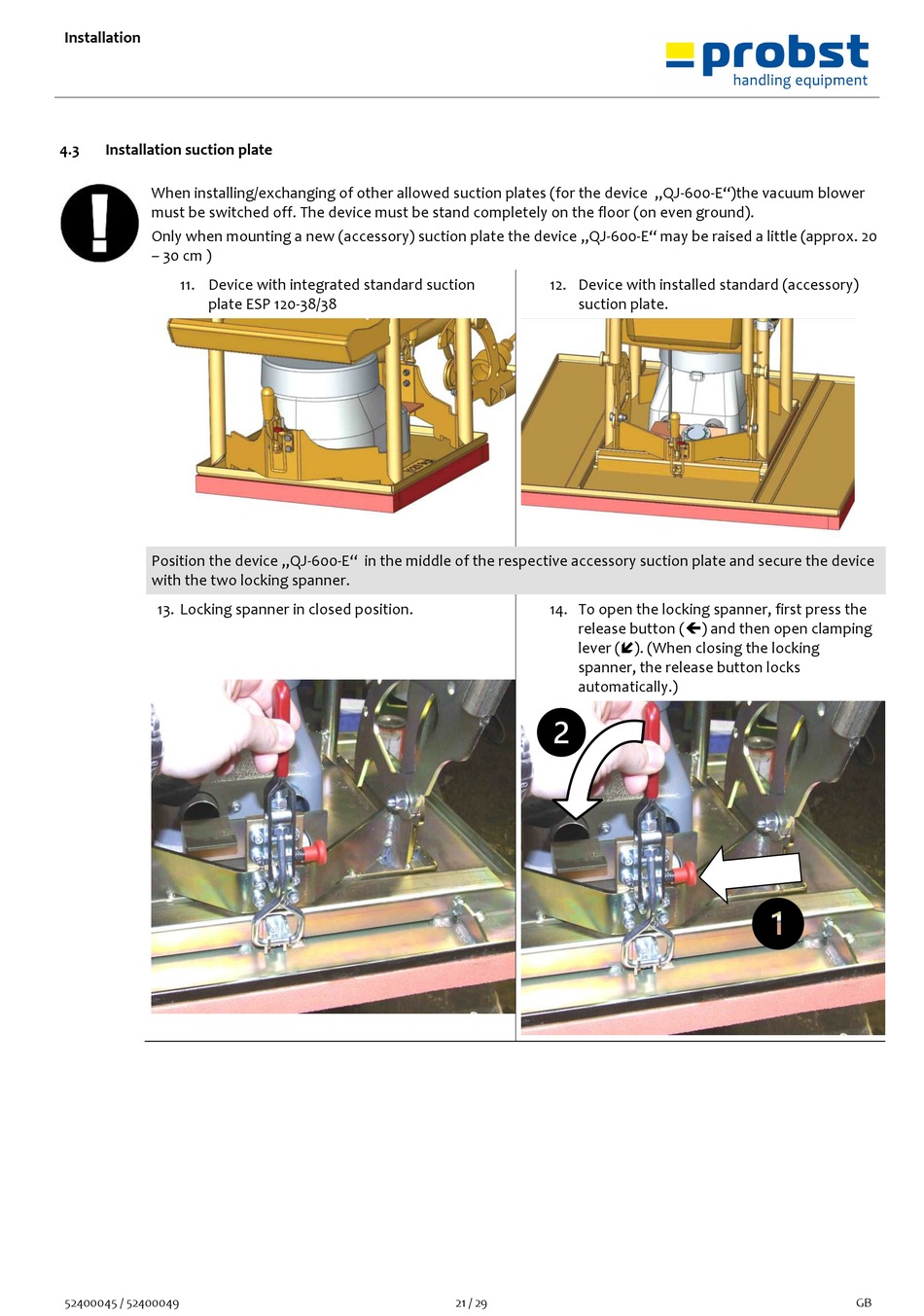

Installation suction plate

When installing/exchanging of other allowed suction plates (for the device „QJ-600-E")the vacuum blower
must be switched off. The device must be stand completely on the floor (on even ground).
Only when mounting a new (accessory) suction plate the device „QJ-600-E" may be raised a little (approx. 20
– 30 cm )
11. Device with integrated standard suction
plate ESP 120-38/38
Position the device „QJ-600-E" in the middle of the respective accessory suction plate and secure the device
with the two locking spanner.
13. Locking spanner in closed position.
52400045 / 52400049
12. Device with installed standard (accessory)
suction plate.
14. To open the locking spanner, first press the
release button () and then open clamping
lever (). (When closing the locking
spanner, the release button locks
automatically.)
