Mounting

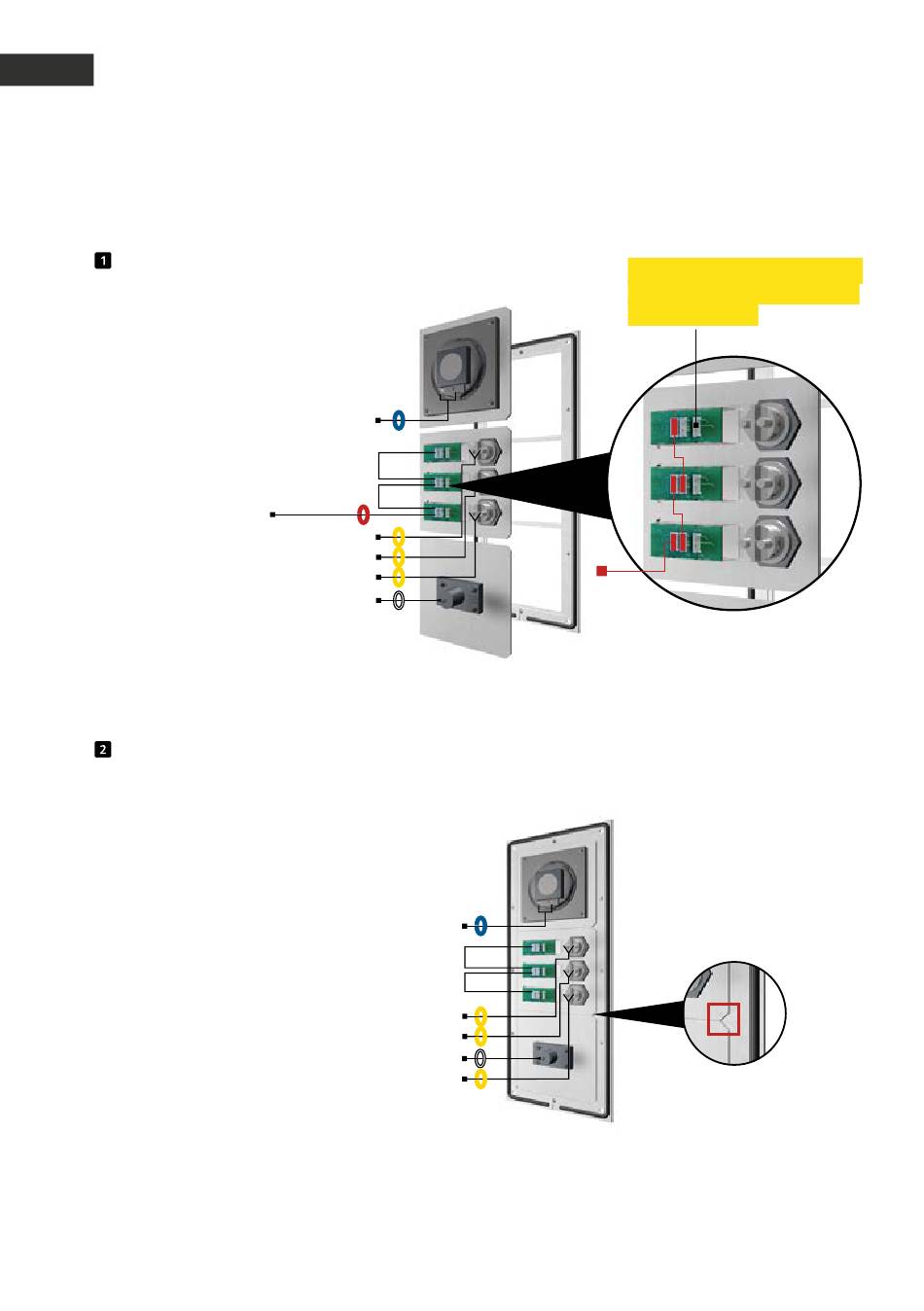

2.2. Mechanical mounting Series 20/30

Insert the function modules into the front frame
Illumination 12-15 V=
(Line coming from the
basic electronics)
Insert the modules into the frame from the rear.
Function modules into the front frame
When inserting the modules, please make sure to observe the anti-twist protection and also have
the modules "click" audibly into position.
30
LS
Bridge circuits
RD
T
RD
T
RD
T
Mic
LS
RD
RD
Mic
RD
Connection of the key illumina-
tion for Behnke keys (optional
illuminated keys)
Illumi na-
tion 12-15 V=
12-15 V bridge circuits to illuminate
the label positions
T
T
T
