Mounting

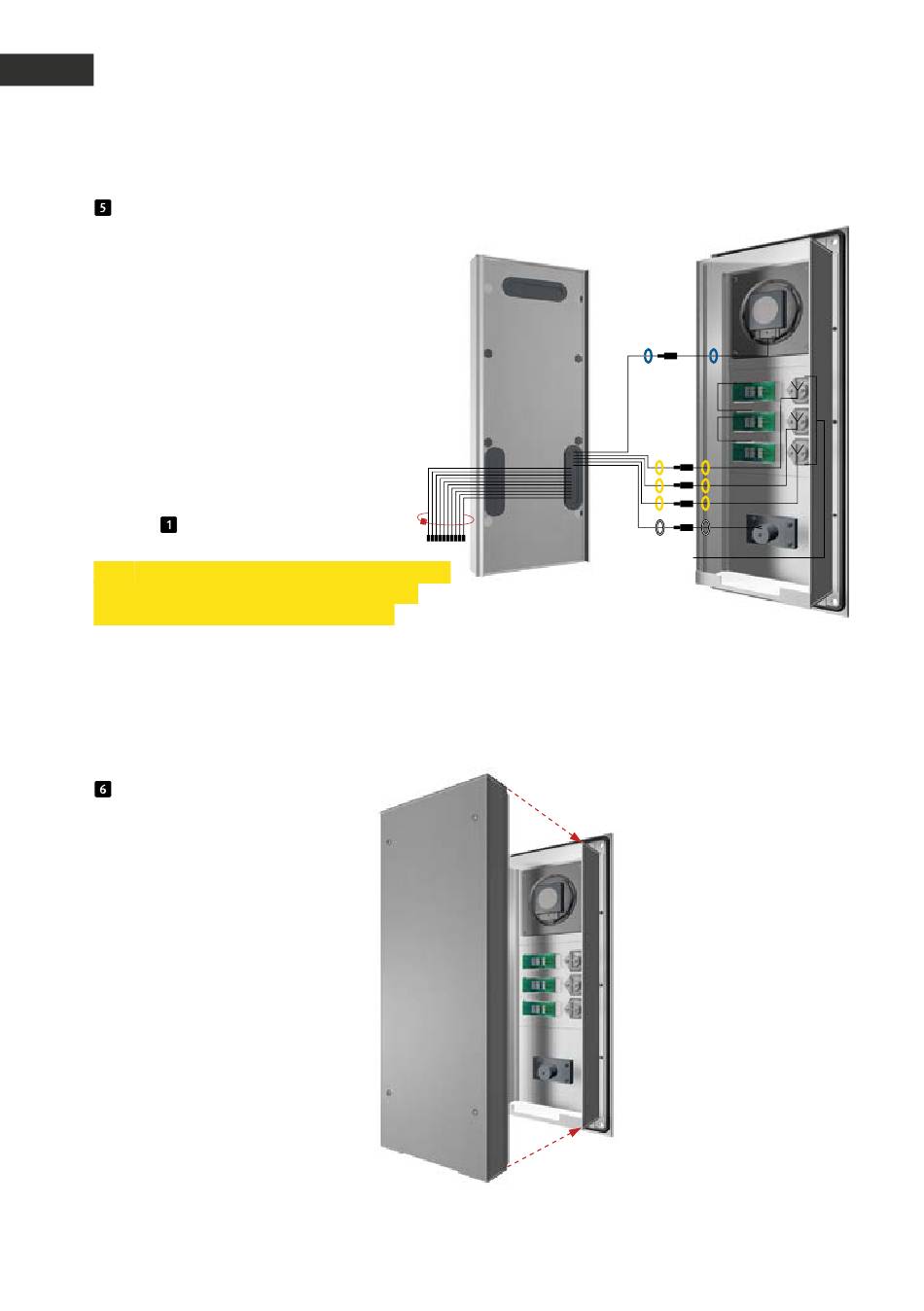

Connect the ribbon cable to the installation
components (speaker, microphone, buttons etc.)
Connection cable pin assignment
Series 20, 30, 50:
LP (blue)
▸ Speakers
Mic (white) ▸ Microphone
T1 to T4 (yellow)
(cf. item )
Note: Connect the available components using
the ribbon cable. Use a cable tie to bundle
unused wires (connectors facing down).
Then clip the electronics box
back onto the module housing.
32
▸ Buttons 1 to 4
Key assignment
(example)
Electronics box
T1 T
T2 T
T3 T
Module housing
