Connection

connection
3.

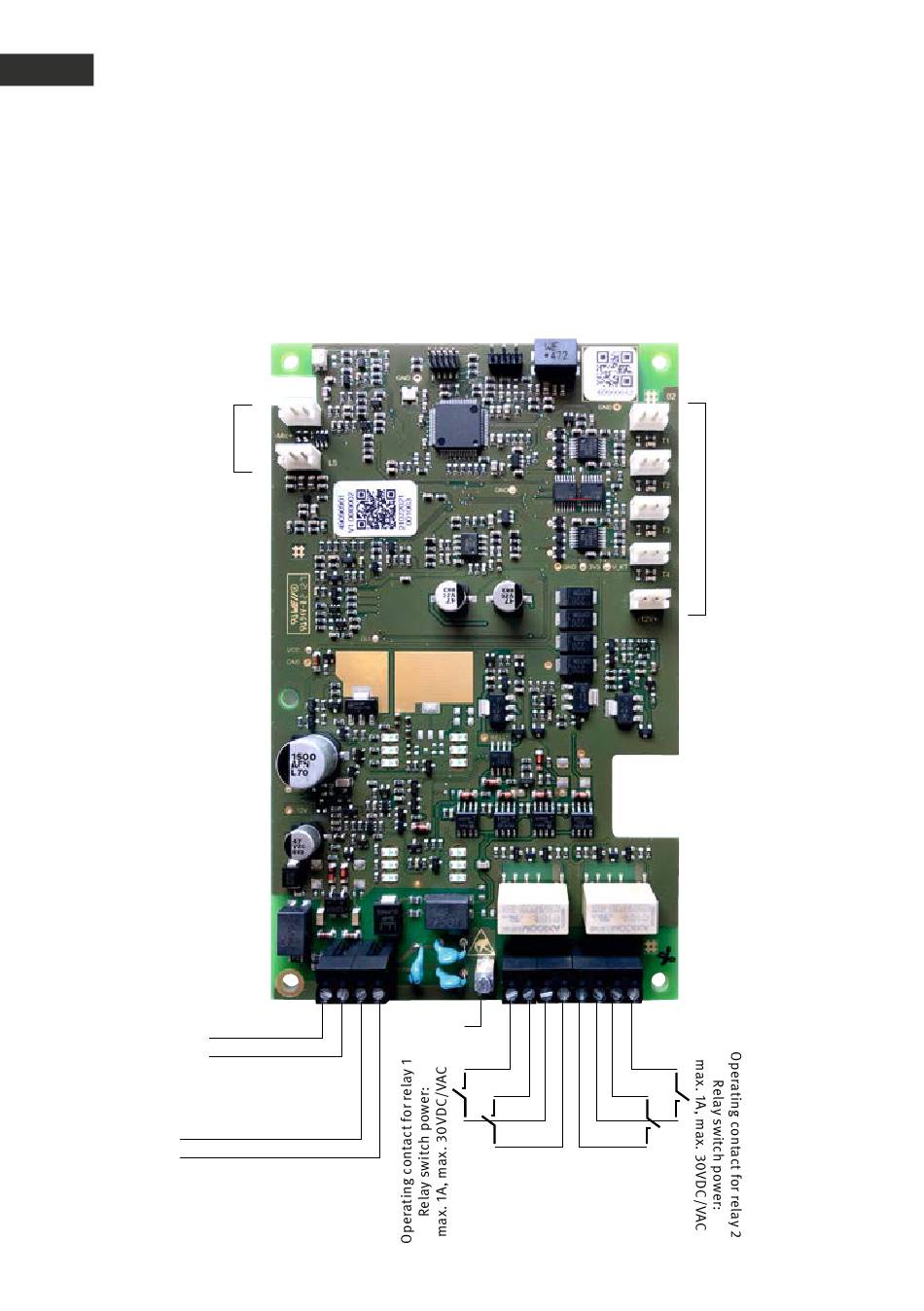

3.1. Wiring diagrams

Compact electronics 20-0001E, 20-0013E, 20-0014E, 20-0016E, 20-0041E, 20-0043E
Connections
for the ribbon
cable to the
operating
elements
+
12-15V=
–
Potential-free 12-15V= voltage,
Behnke power supply 20-9585
Wire a
Wire b
telephone system, a/b port
34
Grounding
Analogue extension of a
Connections
for the ribbon
cable to the
operation
elements
