Instructions for SIP Indoor Station
GB GB

Installation

installation
3.

3.1. On-Wall Mounting

Use the screws provided in the box to mount the
housing (43-5101) to the wall.
Bear in mind the cable inlet on the back.

3.2. Flush-Mounting

Insert the housing (43-5101)into the prepared
cavity and plaster the edges. For exact meas-
urements, please cf. chapter „5. Dimensions"
on page 21. Bear in mind the cable inlet on
the back.

3.3. Fitting the front panel

To remove the front panel of the SIP Indoor
Station from the circuit board, carefully remove
the aluminium panel holding the symbols
for accepting a call and opening the door, as
shown in the picture, then unfasten the two
screws underneath. Insert the circuit board into
the housing (43-5101), use washers and screw
nuts M3 to fasten the basic electronics to the
3 stud bolts. Connect the circuit board (See
chapter "2. Connections" on page 17). Then
return the front panel and fasten the previously
unfastened screws to the circuit board. Press
the aluminium panel back into place.
18

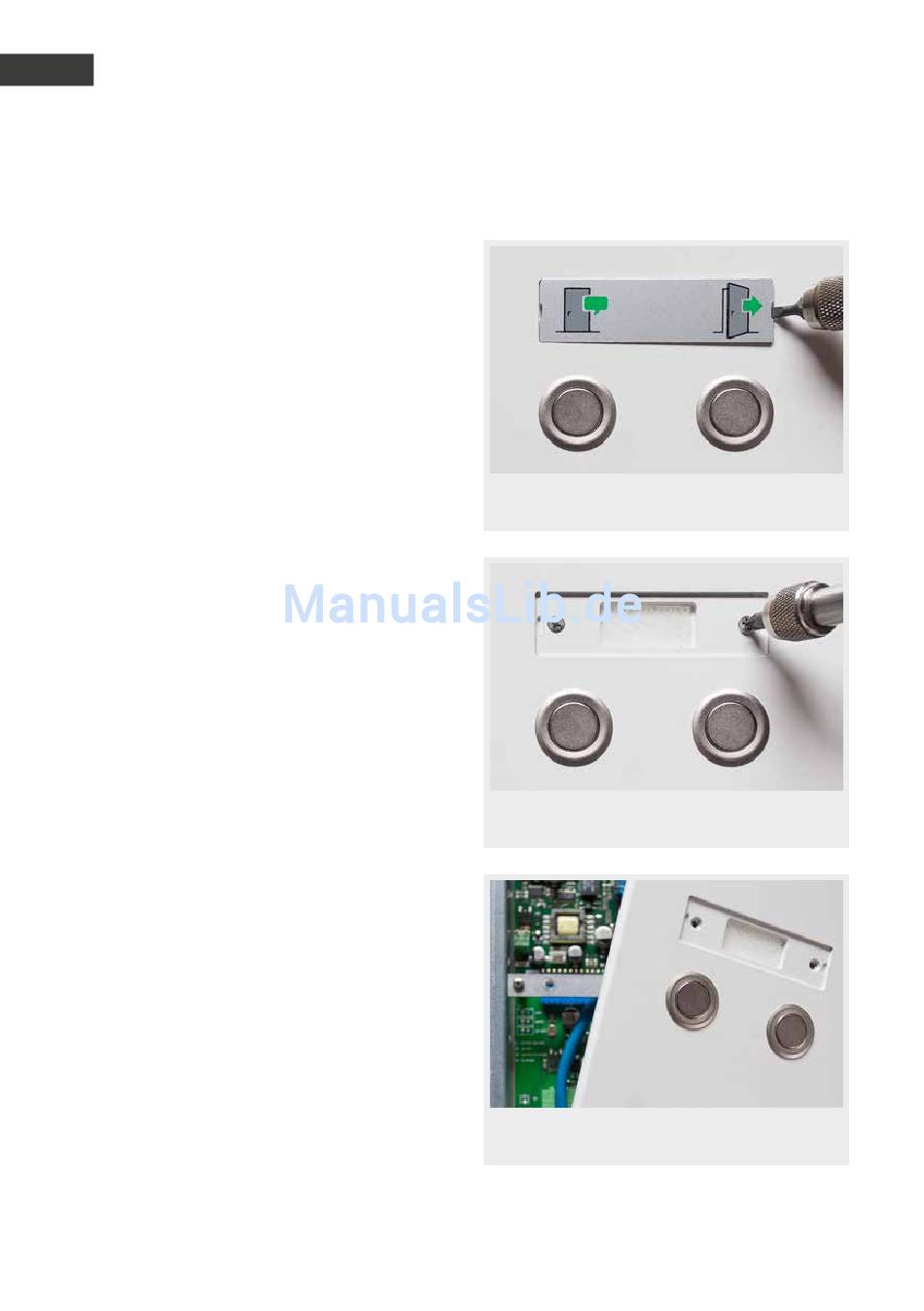

Remove aluminium panel
Unfasten screws
Remove front panel
