Dimensions

dimensions
7.

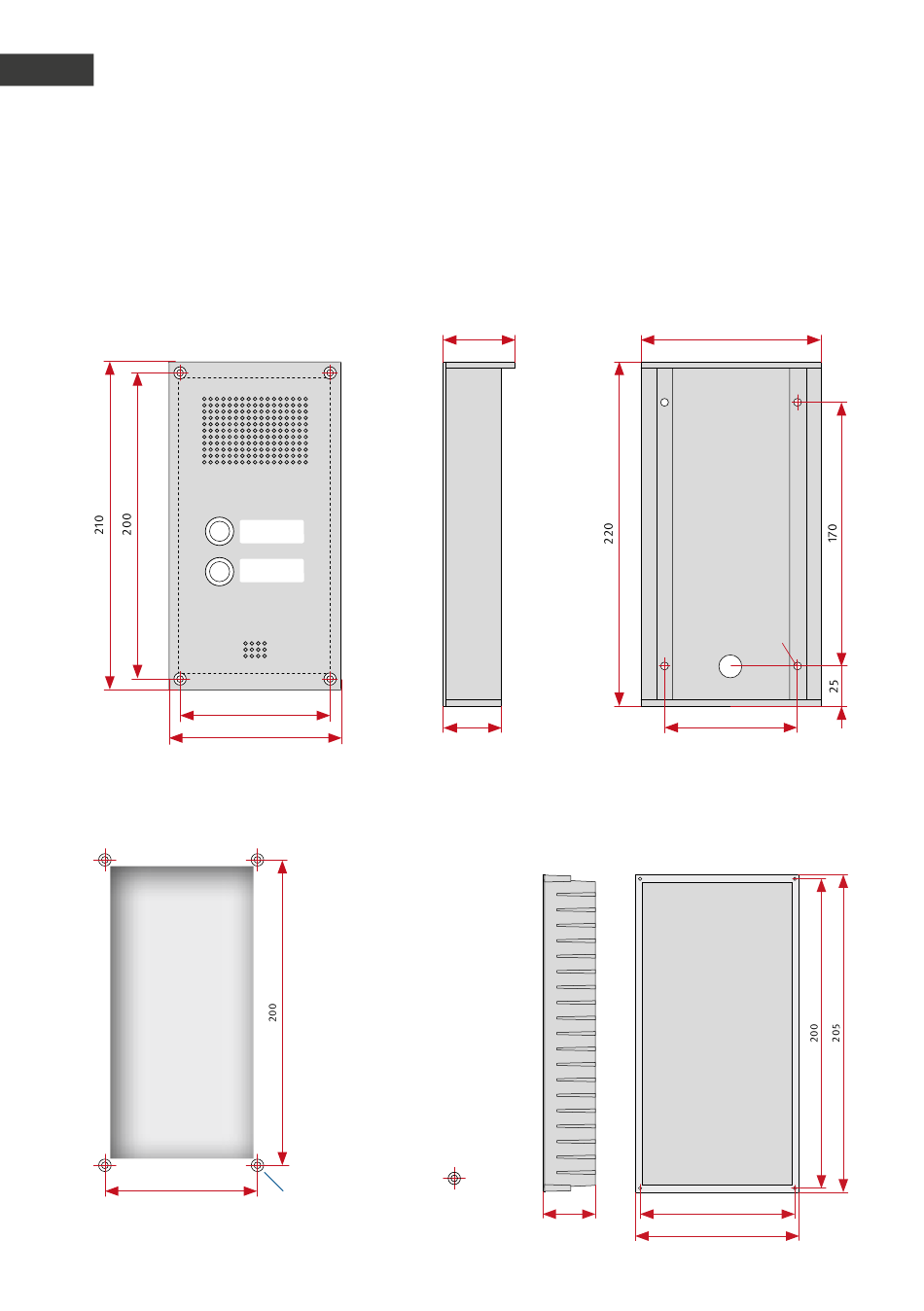

7.1. Flush and on-wall mounting Series 5

Front view
Mounting (without housing)
Necessary
hollow
Width 95 mm
Height 190 mm
100
62
100
110
▸
Hohlwandmontage z. B.
in bauseitigen Säulen etc.
Hier auf die ausreichende
Be- und Entlüftung des
Baukörpers achten um
einer Kondensatbildung
vorzubeugen.
▸
Depth with electronics: ca.
30 mm
▸
We suggest a cavity of
43-53 mm deep (incl. space
for wiring)
▸
Drilling with
M3 screw thread=
M3
On-wall housing
45
Page
39

In-wall housing

Necessary hollow for mounting a 106 x 205
mm housing
40
115
Back
Ø 4 mm
85
100
106
