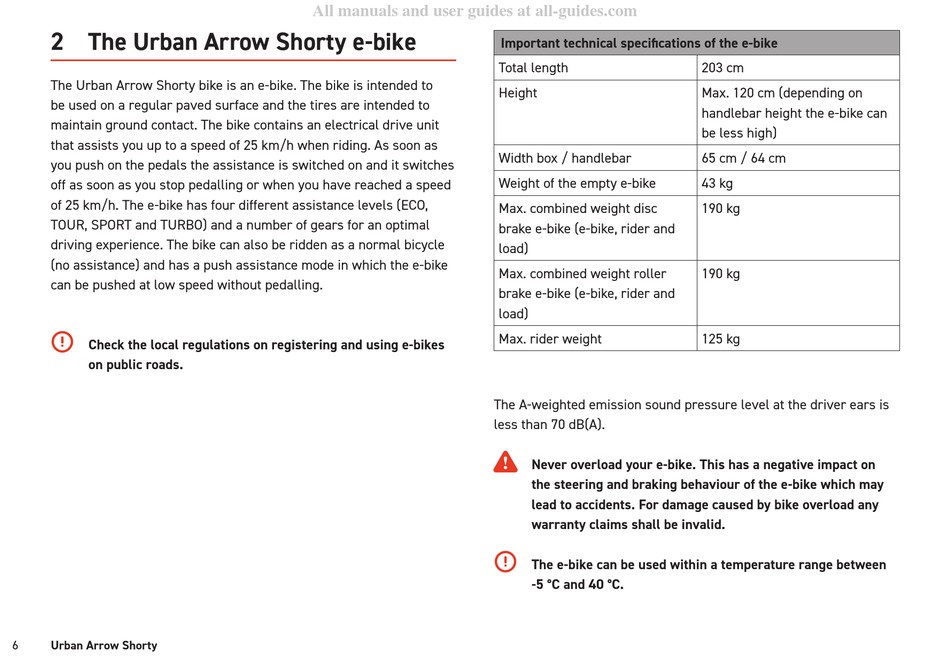

2 The Urban Arrow Shorty e-bike

The Urban Arrow Shorty bike is an e-bike. The bike is intended to
be used on a regular paved surface and the tires are intended to
maintain ground contact. The bike contains an electrical drive unit
that assists you up to a speed of 25 km/h when riding. As soon as
you push on the pedals the assistance is switched on and it switches
off as soon as you stop pedalling or when you have reached a speed
of 25 km/h. The e-bike has four different assistance levels (ECO,
TOUR, SPORT and TURBO) and a number of gears for an optimal
driving experience. The bike can also be ridden as a normal bicycle
(no assistance) and has a push assistance mode in which the e-bike
can be pushed at low speed without pedalling.
2
Check the local regulations on registering and using e-bikes
on public roads.
6 Urban Arrow Shorty
All manuals and user guides at all-guides.com
Important technical specifications of the e-bike
Total length
Height
Width box / handlebar
Weight of the empty e-bike
Max. combined weight disc
brake e-bike (e-bike, rider and
load)
Max. combined weight roller
brake e-bike (e-bike, rider and
load)
Max. rider weight
The A-weighted emission sound pressure level at the driver ears is
less than 70 dB(A).
6
Never overload your e-bike. This has a negative impact on
the steering and braking behaviour of the e-bike which may
lead to accidents. For damage caused by bike overload any
warranty claims shall be invalid.
2
The e-bike can be used within a temperature range between
-5 °C and 40 °C.
203 cm
Max. 120 cm (depending on
handlebar height the e-bike can
be less high)
65 cm / 64 cm
43 kg
190 kg
190 kg
125 kg
