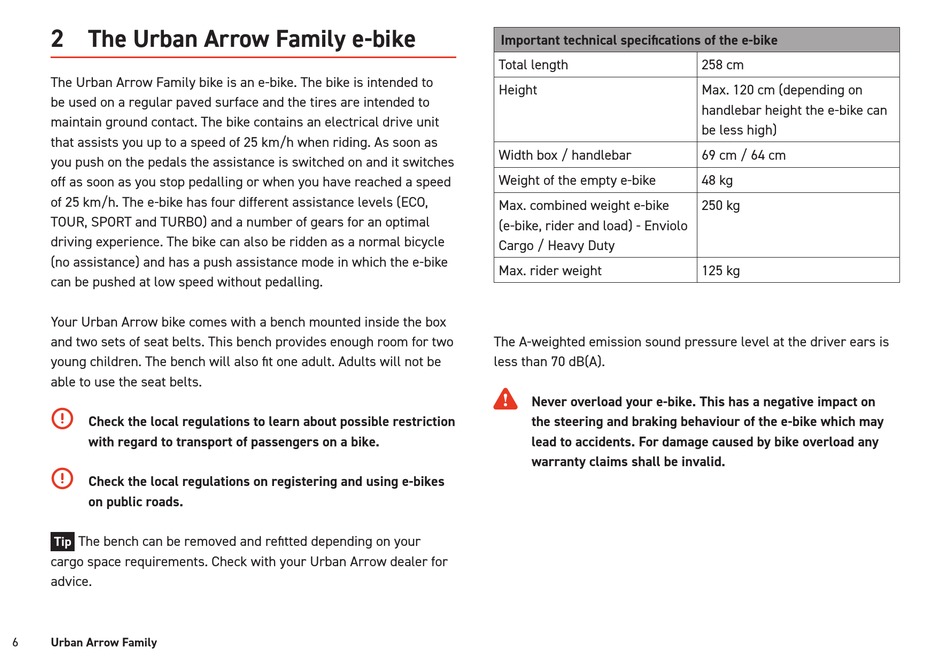

2 The Urban Arrow Family e-bike

The Urban Arrow Family bike is an e-bike. The bike is intended to
be used on a regular paved surface and the tires are intended to
maintain ground contact. The bike contains an electrical drive unit
that assists you up to a speed of 25 km/h when riding. As soon as
you push on the pedals the assistance is switched on and it switches
off as soon as you stop pedalling or when you have reached a speed
of 25 km/h. The e-bike has four different assistance levels (ECO,
TOUR, SPORT and TURBO) and a number of gears for an optimal
driving experience. The bike can also be ridden as a normal bicycle
(no assistance) and has a push assistance mode in which the e-bike
can be pushed at low speed without pedalling.
Your Urban Arrow bike comes with a bench mounted inside the box
and two sets of seat belts. This bench provides enough room for two
young children. The bench will also fit one adult. Adults will not be
able to use the seat belts.
2
Check the local regulations to learn about possible restriction
with regard to transport of passengers on a bike.
2
Check the local regulations on registering and using e-bikes
on public roads.
Tip The bench can be removed and refitted depending on your
cargo space requirements. Check with your Urban Arrow dealer for
advice.
6 Urban Arrow Family
Important technical specifications of the e-bike
Total length
Height
Width box / handlebar
Weight of the empty e-bike
Max. combined weight e-bike
(e-bike, rider and load) - Enviolo
Cargo / Heavy Duty
Max. rider weight
The A-weighted emission sound pressure level at the driver ears is
less than 70 dB(A).
6
Never overload your e-bike. This has a negative impact on
the steering and braking behaviour of the e-bike which may
lead to accidents. For damage caused by bike overload any
warranty claims shall be invalid.
258 cm
Max. 120 cm (depending on
handlebar height the e-bike can
be less high)
69 cm / 64 cm
48 kg
250 kg
125 kg
