The e-bike battery must not be left unattended while
charging.
Charging the e-bike battery while placed in the battery holder is
done as follows:
1. Press the on/off button 53 to switch off the battery.
2. Clean the cover of the charge socket 56 . Avoid soiling the
charge socket and the contacts, e.g. by means of sand or soil.
3. Lift the cover of the charge socket.
4. Plug the charger plug 29 into the charge socket 55 on the
bottom part of the battery holder (see image 29).
5. Plug the charger plug 33 of the power cord into the charger
socket 30 of the charger.
6. Connect the mains cable of the battery charger to the mains
supply. The charging procedure will start.
See below for more information on the charging status
Tip
and what to do after charging.
44 Urban Arrow Shorty
All manuals and user guides at all-guides.com

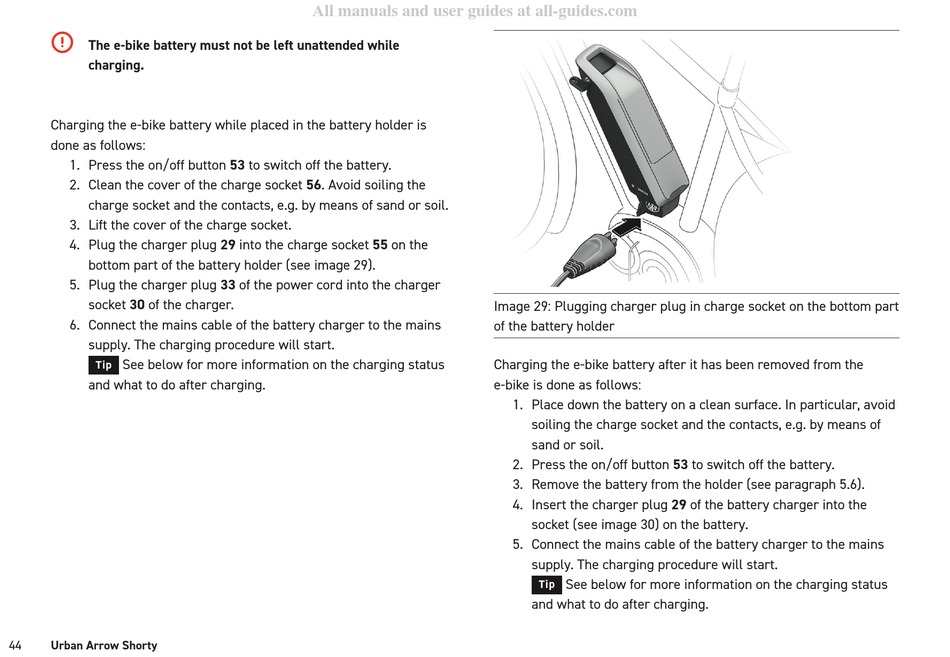

Image 29: Plugging charger plug in charge socket on the bottom part
of the battery holder
Charging the e-bike battery after it has been removed from the
e-bike is done as follows:
1. Place down the battery on a clean surface. In particular, avoid
soiling the charge socket and the contacts, e.g. by means of
sand or soil.
2. Press the on/off button 53 to switch off the battery.
3. Remove the battery from the holder (see paragraph 5.6).
4. Insert the charger plug 29 of the battery charger into the
socket (see image 30) on the battery.
5. Connect the mains cable of the battery charger to the mains
supply. The charging procedure will start.
See below for more information on the charging status
Tip
and what to do after charging.
