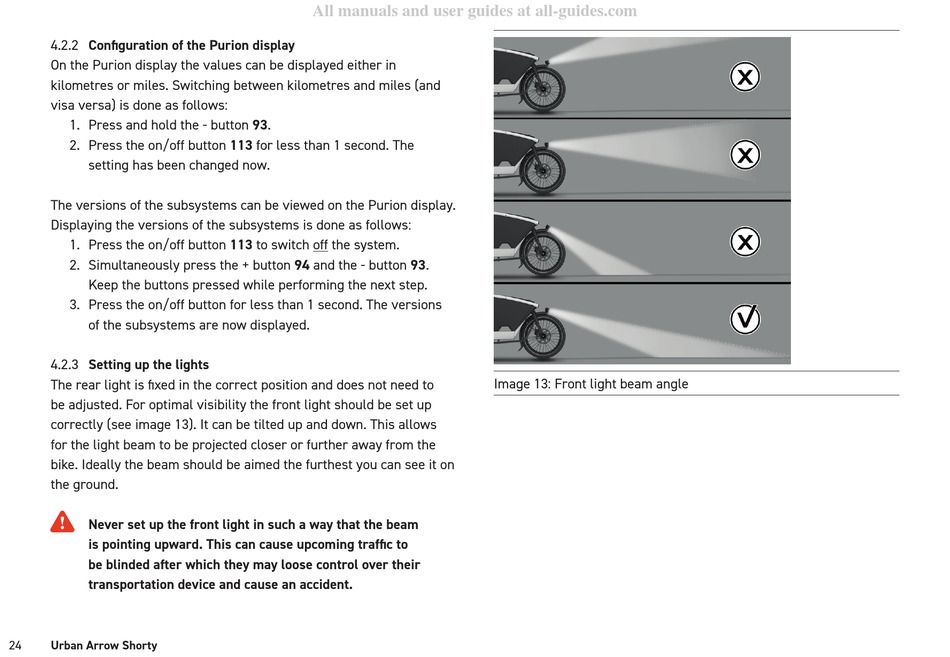

4.2.2 Configuration of the Purion display

On the Purion display the values can be displayed either in
kilometres or miles. Switching between kilometres and miles (and
visa versa) is done as follows:
1. Press and hold the - button 93.
2. Press the on/off button 113 for less than 1 second. The
setting has been changed now.
The versions of the subsystems can be viewed on the Purion display.
Displaying the versions of the subsystems is done as follows:
1. Press the on/off button 113 to switch off the system.
2. Simultaneously press the + button 94 and the - button 93.
Keep the buttons pressed while performing the next step.
3. Press the on/off button for less than 1 second. The versions
of the subsystems are now displayed.

4.2.3 Setting up the lights

The rear light is fixed in the correct position and does not need to
be adjusted. For optimal visibility the front light should be set up
correctly (see image 13). It can be tilted up and down. This allows
for the light beam to be projected closer or further away from the
bike. Ideally the beam should be aimed the furthest you can see it on
the ground.
6
Never set up the front light in such a way that the beam
is pointing upward. This can cause upcoming traffic to
be blinded after which they may loose control over their
transportation device and cause an accident.
24 Urban Arrow Shorty
All manuals and user guides at all-guides.com
Image 13: Front light beam angle
