Storing The E-Bike Battery - Urban Arrow Shorty Gebrauchsanweisung

2
Mind that the polarity of the battery is correct when inserting
the new battery.
5. Close the battery compartment cover by using a coin and
turning it clockwise.
6. Place the display back on the handlebar and fasten it with the
fastening screw.

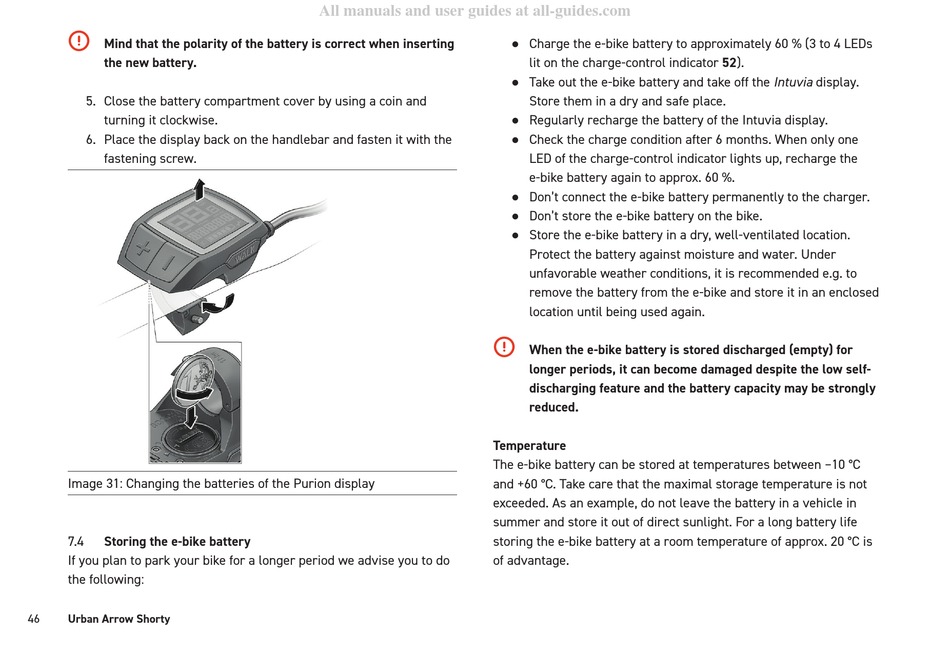

Image 31: Changing the batteries of the Purion display

Storing the e-bike battery

7.4
If you plan to park your bike for a longer period we advise you to do
the following:
46 Urban Arrow Shorty
All manuals and user guides at all-guides.com
● Charge the e-bike battery to approximately 60 % (3 to 4 LEDs
lit on the charge-control indicator 52 ).
● Take out the e-bike battery and take off the Intuvia display.
Store them in a dry and safe place.
● Regularly recharge the battery of the Intuvia display.
● Check the charge condition after 6 months. When only one
LED of the charge-control indicator lights up, recharge the
e-bike battery again to approx. 60 %.
● Don't connect the e-bike battery permanently to the charger.
● Don't store the e-bike battery on the bike.
● Store the e-bike battery in a dry, well-ventilated location.
Protect the battery against moisture and water. Under
unfavorable weather conditions, it is recommended e.g. to
remove the battery from the e-bike and store it in an enclosed
location until being used again.
2
When the e-bike battery is stored discharged (empty) for
longer periods, it can become damaged despite the low self-
discharging feature and the battery capacity may be strongly
reduced.
Temperature
The e-bike battery can be stored at temperatures between –10 °C
and +60 °C. Take care that the maximal storage temperature is not
exceeded. As an example, do not leave the battery in a vehicle in
summer and store it out of direct sunlight. For a long battery life
storing the e-bike battery at a room temperature of approx. 20 °C is
of advantage.
