R911407405 | Rexroth PRC7000 MGDM-Basic
8

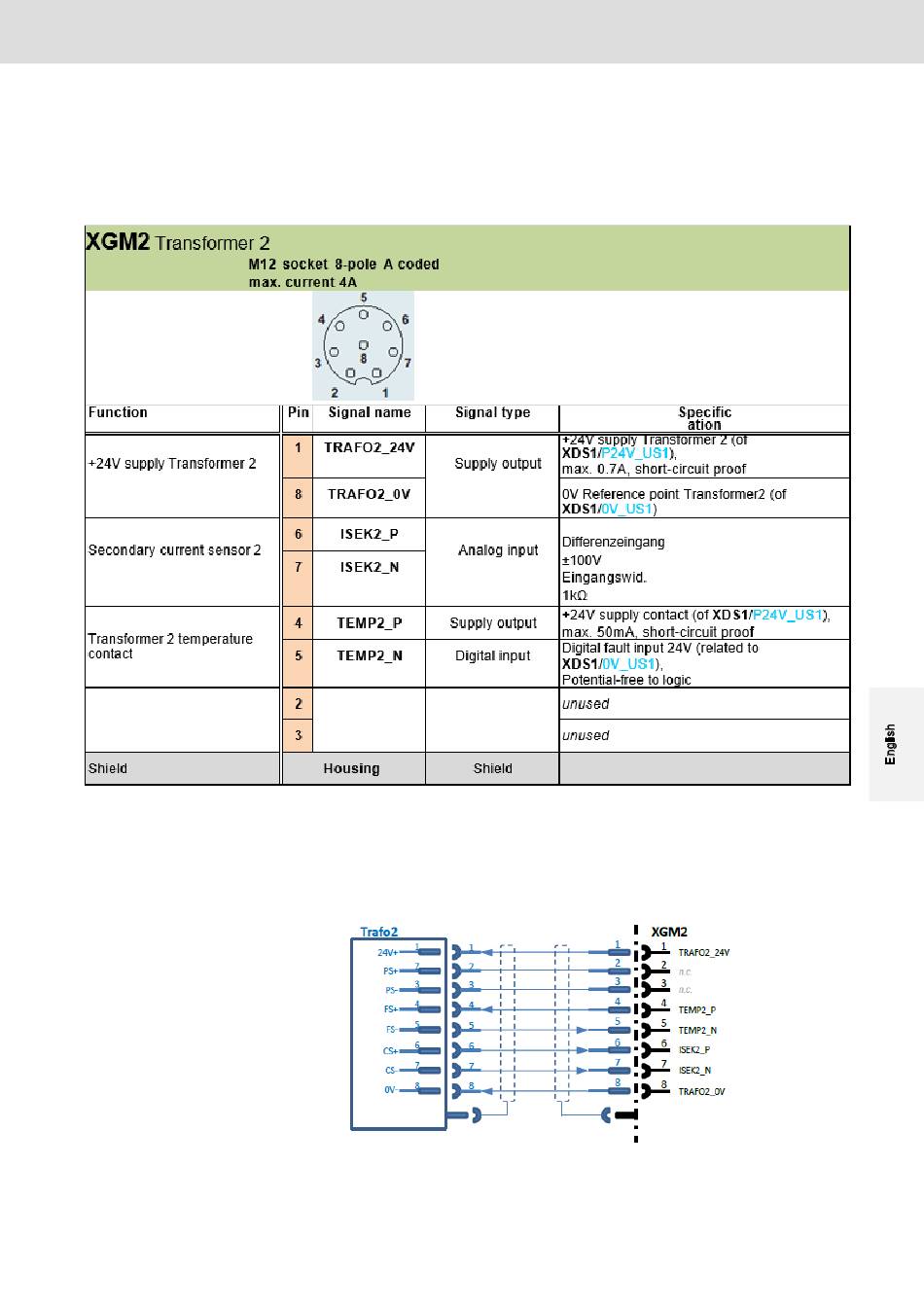

XGM2 Transformer 2

8.1

Pin assignment XGM2

Fig. 7: XGM2 assignment
Note: Contact arrangement view from above the MGDM
8.2

Connection XGM2 Transformer 2

Fig. 8: Circuit diagram XGM2
Bosch Rexroth AG 63/80
