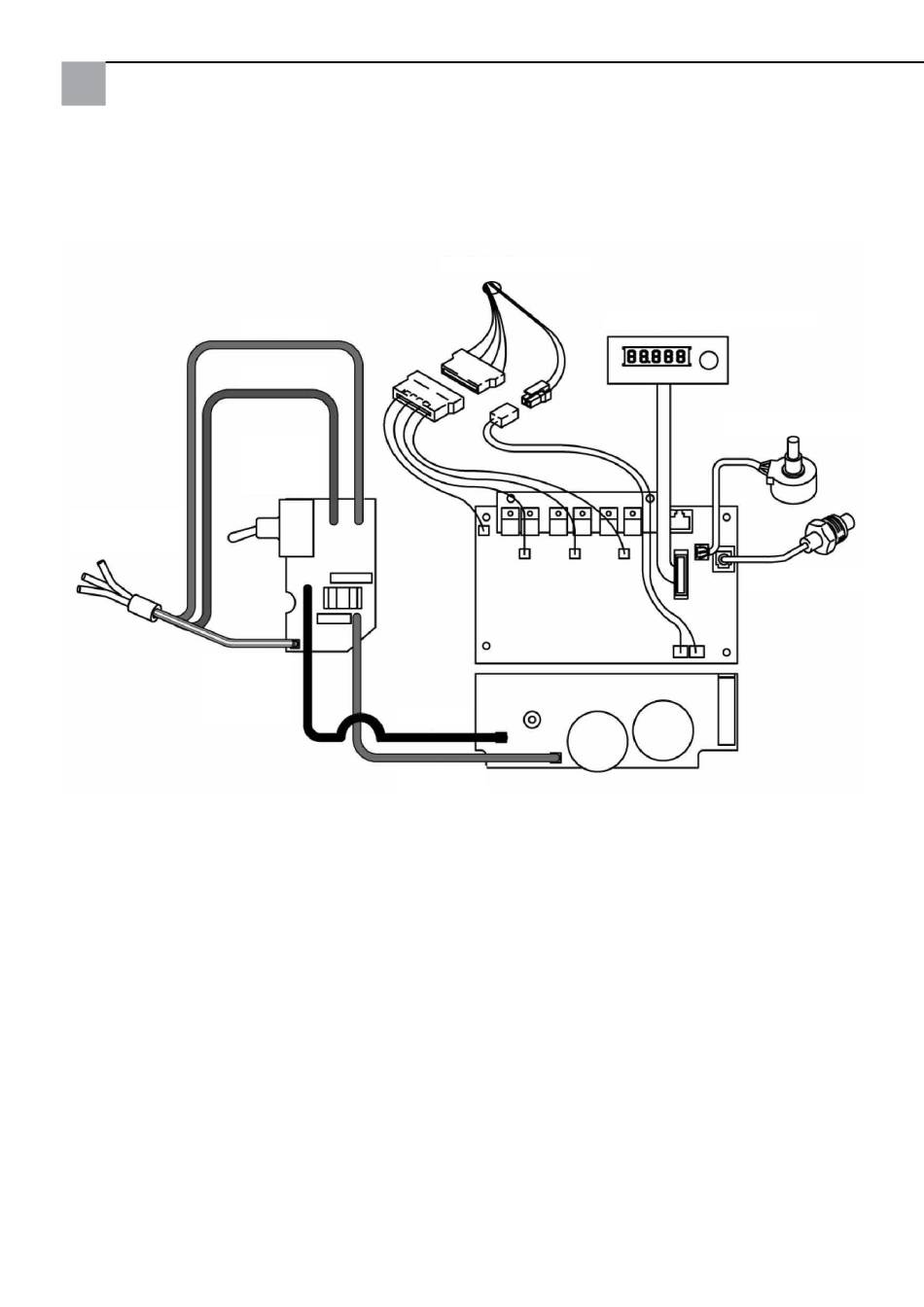

Wiring diagram 230 V

NOTICE: Heat from inductor coil of filter board may
destroy wire insulation that comes in contact with it.
power
plug
green /
yellow
Original instruction
blue
brown
on/off
switch
black
blue
Exposed wires could cause shorts and component dama-
ge. Bundle and tie loose wires so none lay in contact with
inductor coil on the filter board.
from motor
digital display
184
potentiometer
transducer
