Product description
16.7

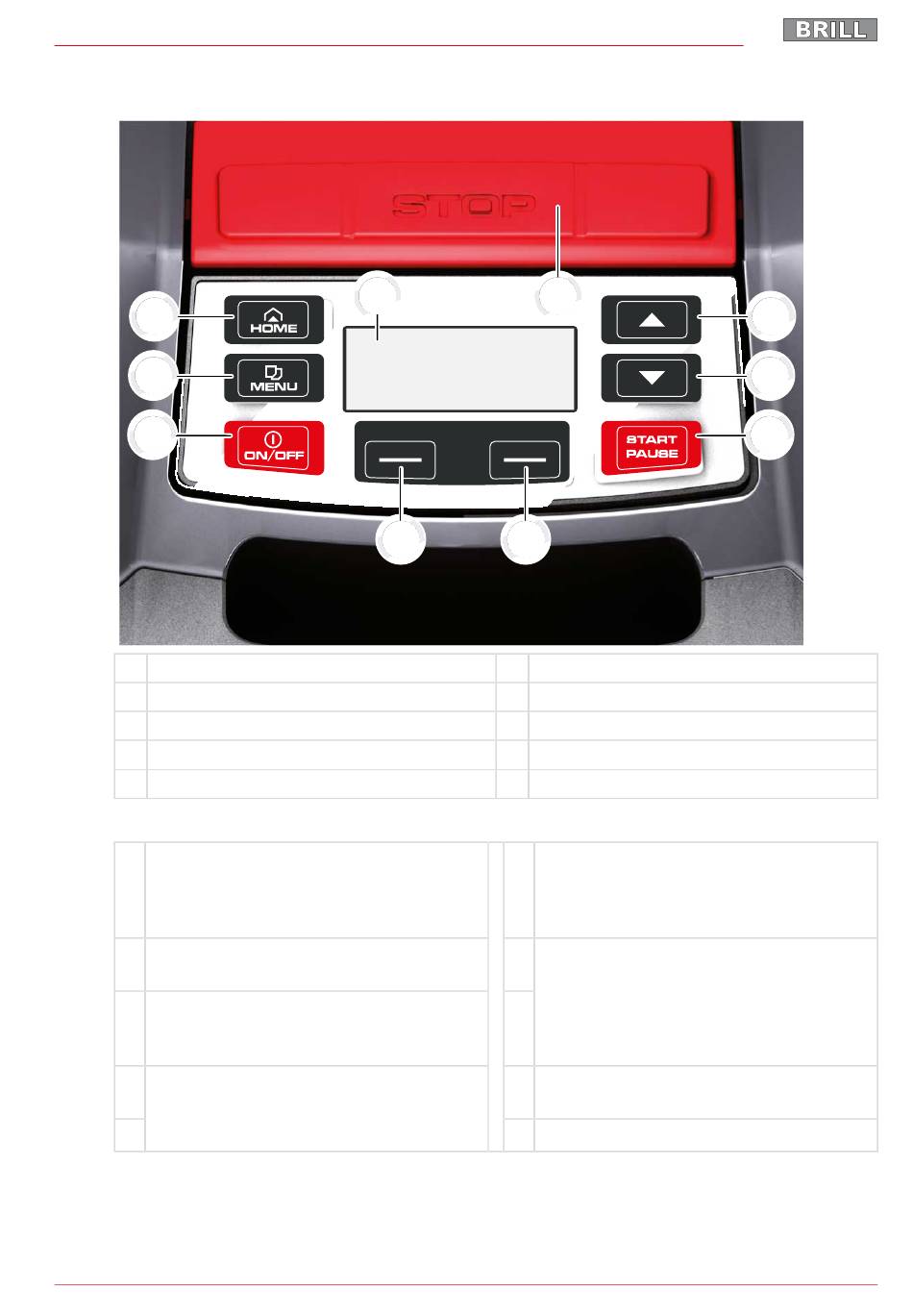

Control panel

1
10
9
1 HOME key
2 LCD display
3 STOP key
4 Up arrow key
5 Down arrow key
Function of the keys
1 The [HOME key] cancels the current mowing
procedure. The Roboline™ R30 moves to its
base station. The Roboline™ R30 starts on
the next day, with the next mowing window.
2 The [LCD display] displays the current status
or the selected menu..
3 Pressing the [STOP key] stops the Robo-
line™ R30 and the cutting blade within 2
seconds.
4 The [up arrow key and down arrow key] are
used for navigating in the menu and for chan-
ging values.
5
454 912_a
2
8 7
6 START/PAUSE key
7 Multifunction key right
8 Multifunction key left
9 ON/OFF key
10 Menu key
6 Press the [START/PAUSE key] to start the
Roboline™ R30 or interrupt operation. Cau-
tion - unit starts after 2 minutes automati-
cally!
7 Use the [multifunction keys right or left] to
confi rm or revoke commands, for example
(selecting a menu command).
8
9 The [ON/OFF key] is used for switching the
Roboline™ R30 on or off.
10 Press the [menu key] to open the menu.
