Fitting the round
top on dual-top desk
(with sliding function)

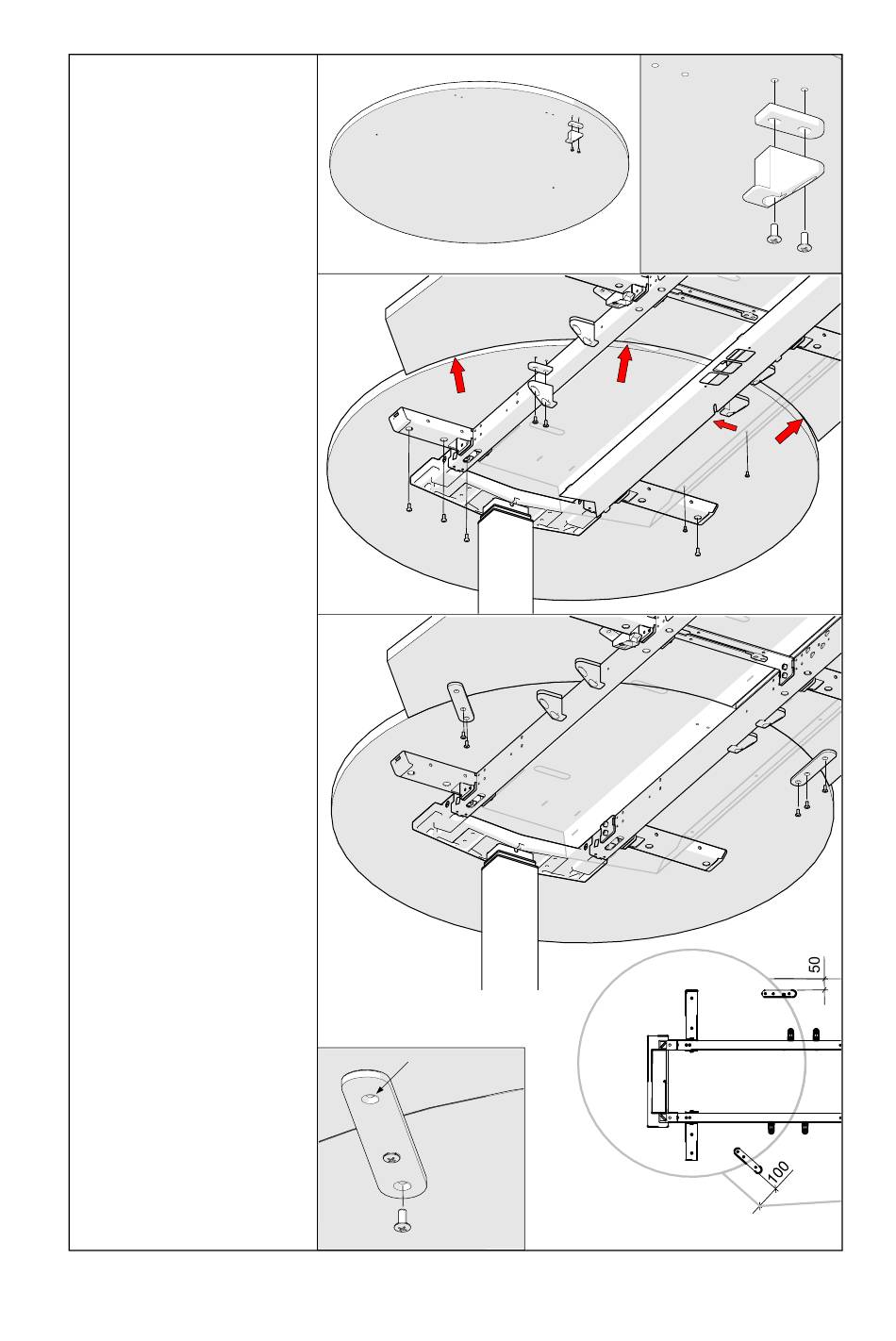

Fit sliding bolt (a) and spacer
(b) on round table top using
screws 6,3x14.
Position round table top on
frame (c), mount second sli-
ding bolt and spacer (d).
Fix round table top from under-
neath by using flat-head
screws (e).
Attach cable tray with pan-
head screws 4x13 (f).
Mount support plates (g) with
countersunk-head screws
4,5x20, note the given distan-
ces (h) and pay attention of (i).
(e)
(i)
(g)
(i)
do not screw
41
(d)
(c)
(f)
(b)
(a)
(f)
(e)
(g)
(h)
(h)
