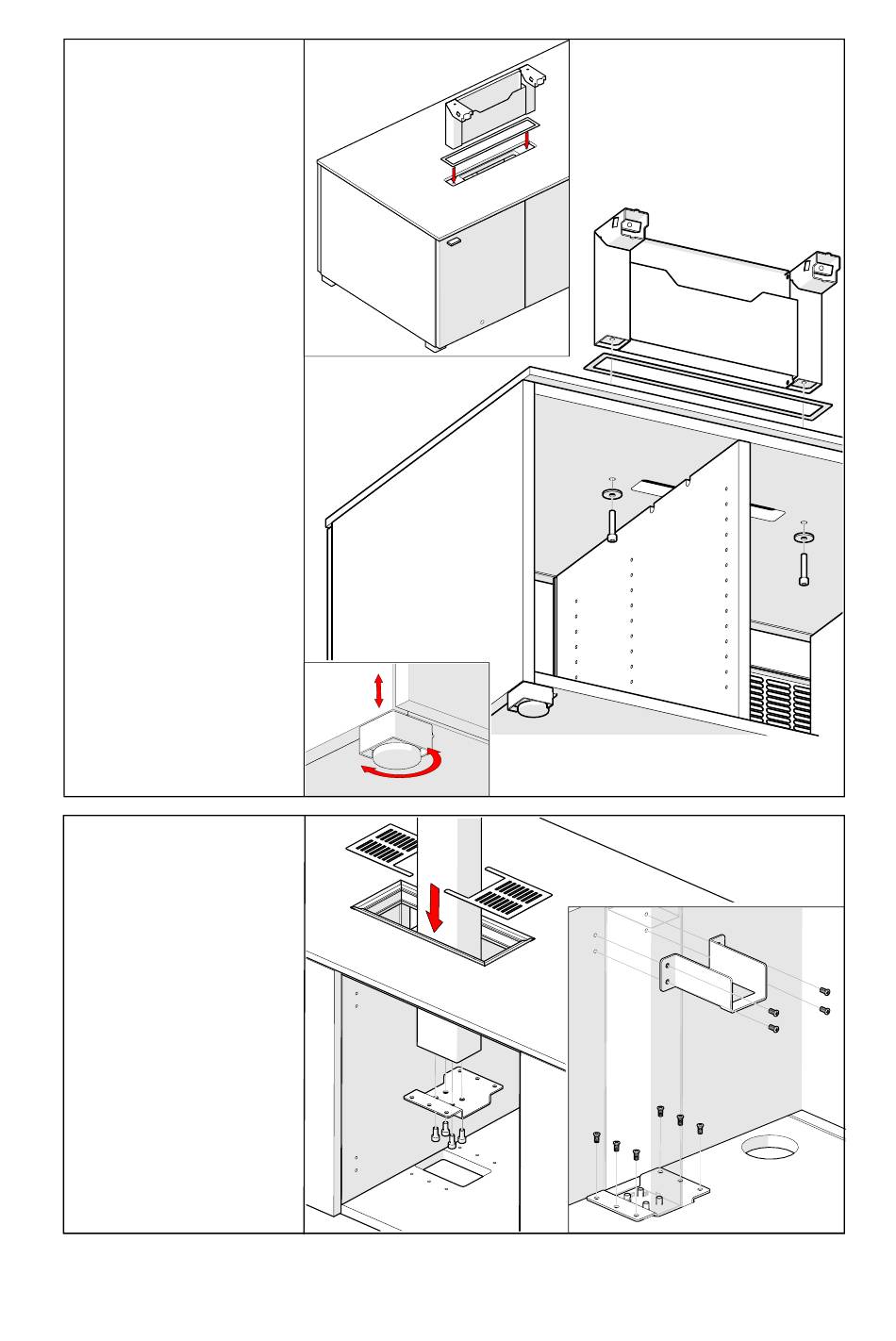

25.
Technology pe-
destal, fitting table
connector
(a)
Place cover and table con-
nector (a) on pedestal, tighten
from underneath (b) by using
cylinder head screws M8x40
(SW6) and washers.
Mount main beams as discri-
bed in fig.1 (not illustrated).
The lower levelling glide (c)
is used for height adjustment.
(b)
(b)
(c)
26.
Technology pe-
destal, fitting T-leg
(a)
Insert T-leg (a) into pedestal,
screw leg holder (b) from un-
(d)
derneath by using cylinder
head screws M8x20 (SW6).
Mount leg holder onto bottom
panel (c) and upper holder
(d) on the inside of pedestal
by using screws ø6,3x14.
(b)
(c)
45
