Fitting The Cpu Holder; Fitting The Printer Tray - Konig + Neurath TABLE.T Montageanleitung

12.

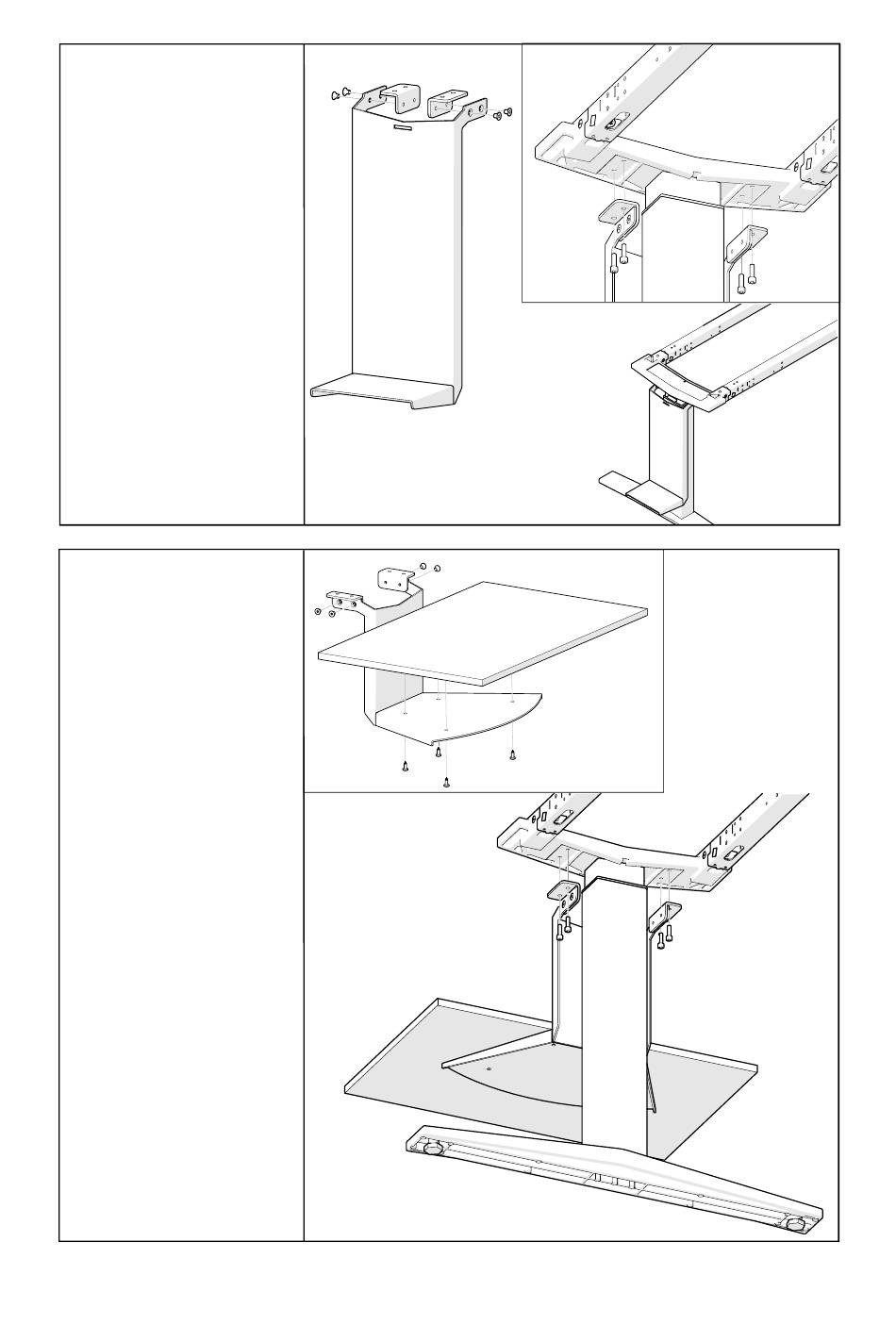

Fitting the CPU
holder
Fit angle bracket (a) to the hol-
der with countersunk-head
screws M6x8 (SW4).
Mount CPU holder to the
cross-beam from underneath
(b) using self-tapping cylinder
head screws M6x16 (SW5).
The CPU holder can optionally
be mounted on the inside or
the outside.
Desks with fold-out cable tray:
only on the outside!
13.
Fitting the printer
tray
Fit angle bracket (a) to the
holder with countersunk-head
screws M6x8 (SW4). Mount
printer shelf (b) onto holder
using screws 6,3x12.
Screw printer tray on the
cross-beam from underneath
(c) using self-tapping cylinder
head screws M6x16 (SW5).
(a)
(a)
(b)
36
(b)
(c)
