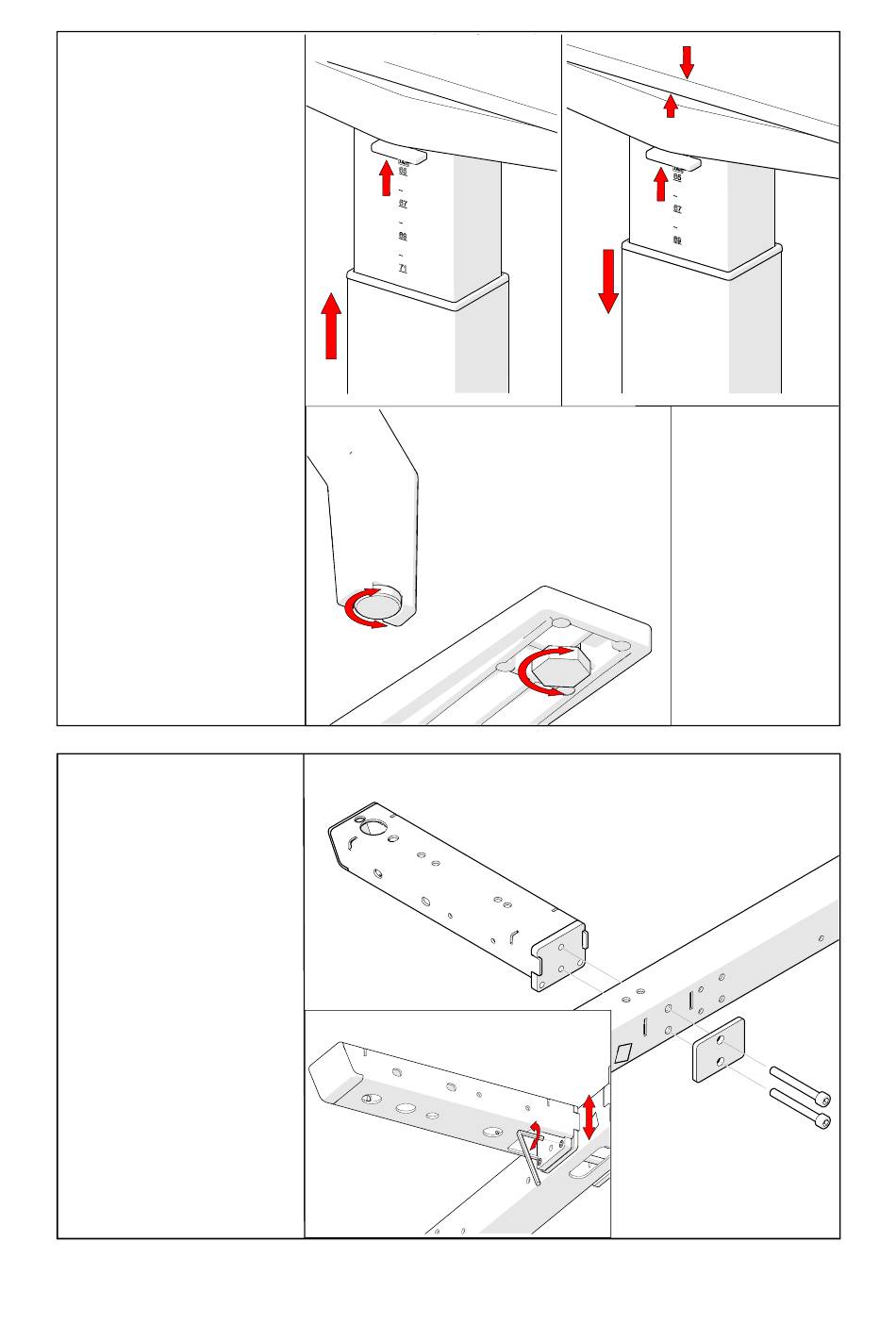

Height Adjustment; Fitting The Bracket - Konig + Neurath TABLE.T Montageanleitung

2.

Height adjustment

T-leg
Upwards (a):
Push button upwards, set re-
quired height and release
button.
Downwards (b):
Push button upwards, lift the
table top slightly and press
downwards, set required
height and release button.
A-leg / T-leg
The lower levelling glide (c) is
used for height adjustment
to compensate for uneven
flooring.
3.

Fitting the bracket

Fit the bracket (a) with pressu-
re plate (b) to the main beam
(c) using cylinder head screws
M6x55 (SW5).
Adjust the inclination (d) of the
bracket with grub screws
M6x8 (SW3).
(a)
(c)
(a)
29
(b)
(c)
(d)
(b)
