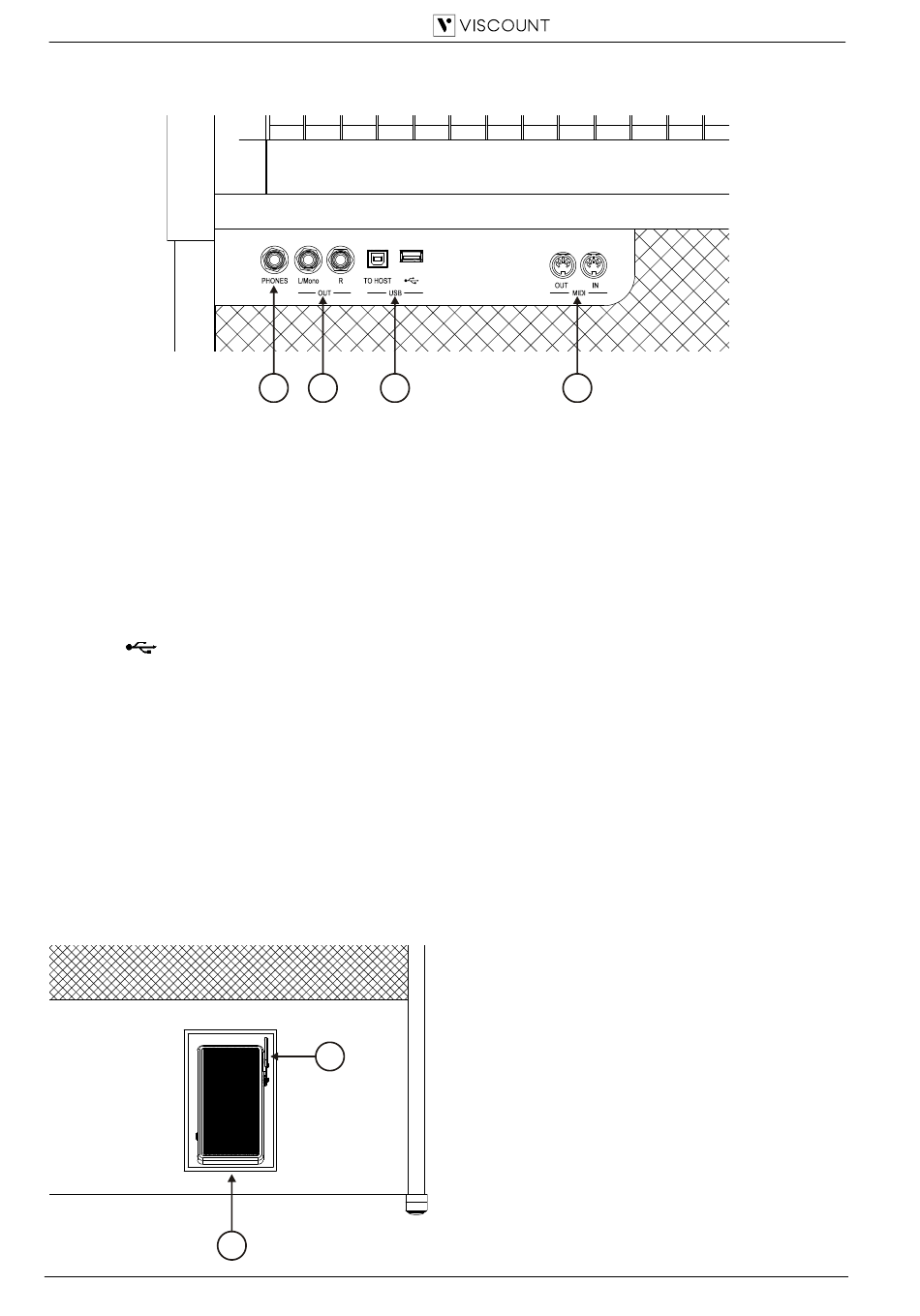

2.2 PANEL UNDERNEATH THE KEYBOARD

1. [PHONES] connector: Jack connector for connecting stereo headphones. The internal
speakers are turned off when the headset is connected.
2. [OUT] connectors: line outputs for connection to external audio devices (powered speakers,
mixers, amplifiers), in which the instrument's general signal is present. In case of stereo system,
connect the [L/Mono] output to the left channel and the [RIGHT] output to the right channel.
If a monophonic system is used, only connect the[L/Mono] connector.
3. [USB] connectors:
[ ]: insert the USB stick you want to use into this connector.
-
[TO HOST]: connector for transmitting and receiving MIDI data with a computer.
-
4. [MIDI] connectors: connectors for connecting MIDI devices.
[IN]: input connector for receiving data from an external MIDI unit to the Chorum 10.
-
Connect to the MIDI output of the transmitting device (e. g. a sequencer).
[OUT]: this connector transmits the MIDI data generated by Chorum 10. Connect to the
-
MIDI input of the receiving device (e. g. an expander).

2.3 EXPRESSION PEDAL

1 2 3
2
1
Chorum 10 Dlx – Chorum S10 – Chorum 10
4
1. Expression
control of the instrument's volume.
2. Sustain effect lever: lever to control the
sustain effect for orchestral voices.
EN - 6
pedal: allows continuous
