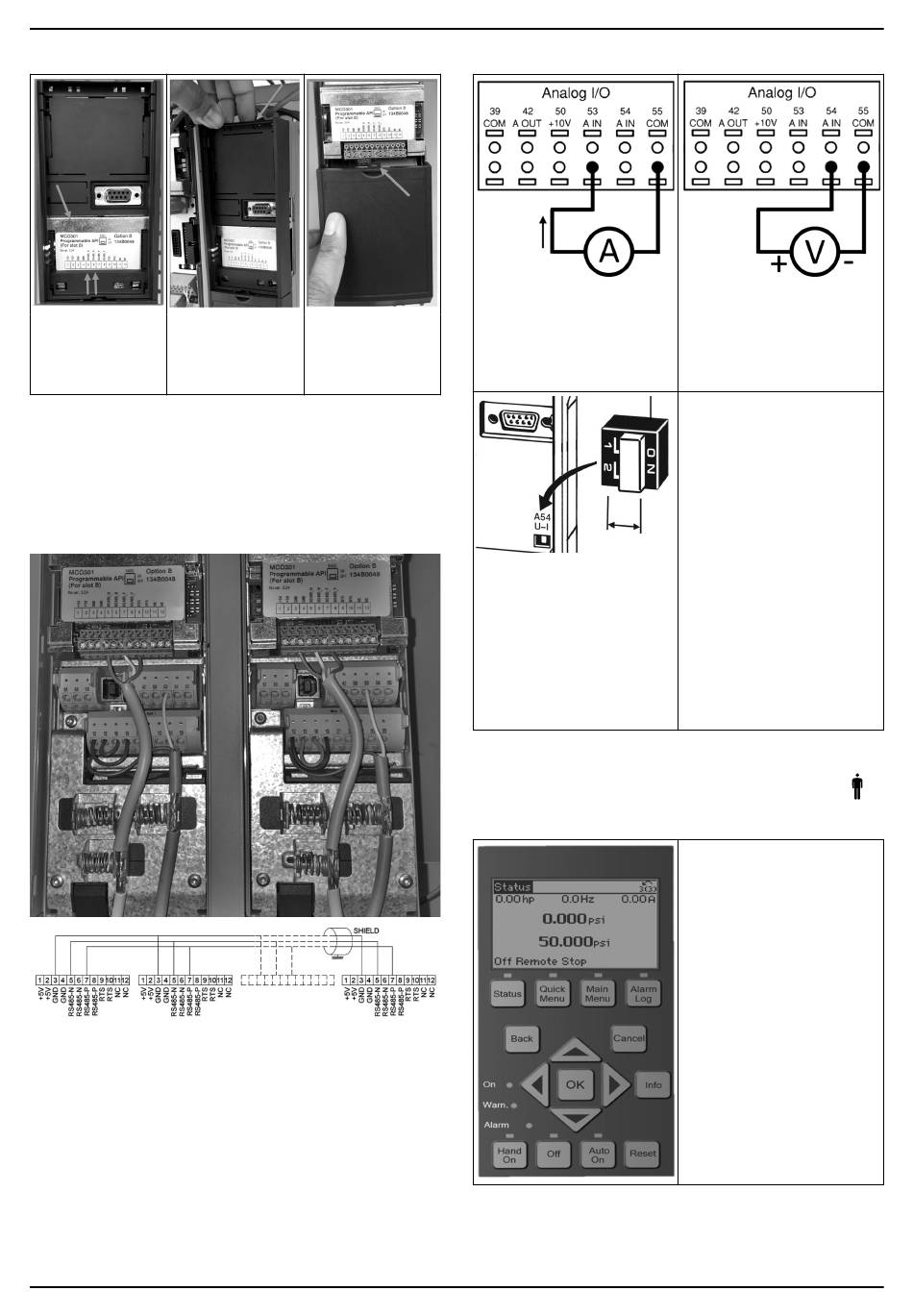

2.3 Multi-pump connections
Connect communica- Carefully remove the
tion wires to the bot- plastic cover by un-
tom of this card. locking the tab on the
top of the drive and
releasing.
2.4 Connect wires to the MCO301 module
1. Terminal #3 to Terminal #3
2. Terminal #5 to Terminal #5
3. Terminal #7 to Terminal #7
4. Use shielded cable and put the cable shield on the spring clip.
5. If using more than two controllers, follow the same wiring instruc-
tions for the additional drive.
6. Refer to the IOM for additional multi-control wiring configurations.
7. Re-install covers and keypad and begin commissioning.
®
Lowara Aquavar QUICK START GUIDE
2.5 Wiring for Speed Control
Sending a 4-20 mA input signal to
the drive using analog input 53.
You will wire your 4-20 mA signal
Carefully remove bot-
into terminal 53 and common on
tom cover by unlock-
terminal 55. Analog input 53 ac-
ing tab
cepts only 4-20 mA.
A DIP switch located behind the
MCO 301 card allow to change
the analog input 54 setting.
To change the analog input 54
setting from voltage to current fol-
low the steps below:
3 Operation
3.1 Operating instructions
U
I
• Power off the drive
• Remove LCP control panel
• Remove MCO301 card
• Change the DIP switch setting
from U (0-10 V) to I (4-20 mA)
en - Original instructions
Sending a 0-10 V input signal to
the drive using analog input 54.
You will wire your 0-10 V signal in-
to terminal 54 and common on
terminal 55. Analog input 54 can
accept current or voltage signal,
by default it is set to 0-10 V.
• At the first power on, the
Aquavar will automatically dis-
play the Start-up Genie menu
that allows the easy setup of
the parameters based on the
application.
• To recall the Startup Genie
menu on screen, press the
Quick Menu button and select
parameter 04 "Start-up Genie"
or "Smart Start".
