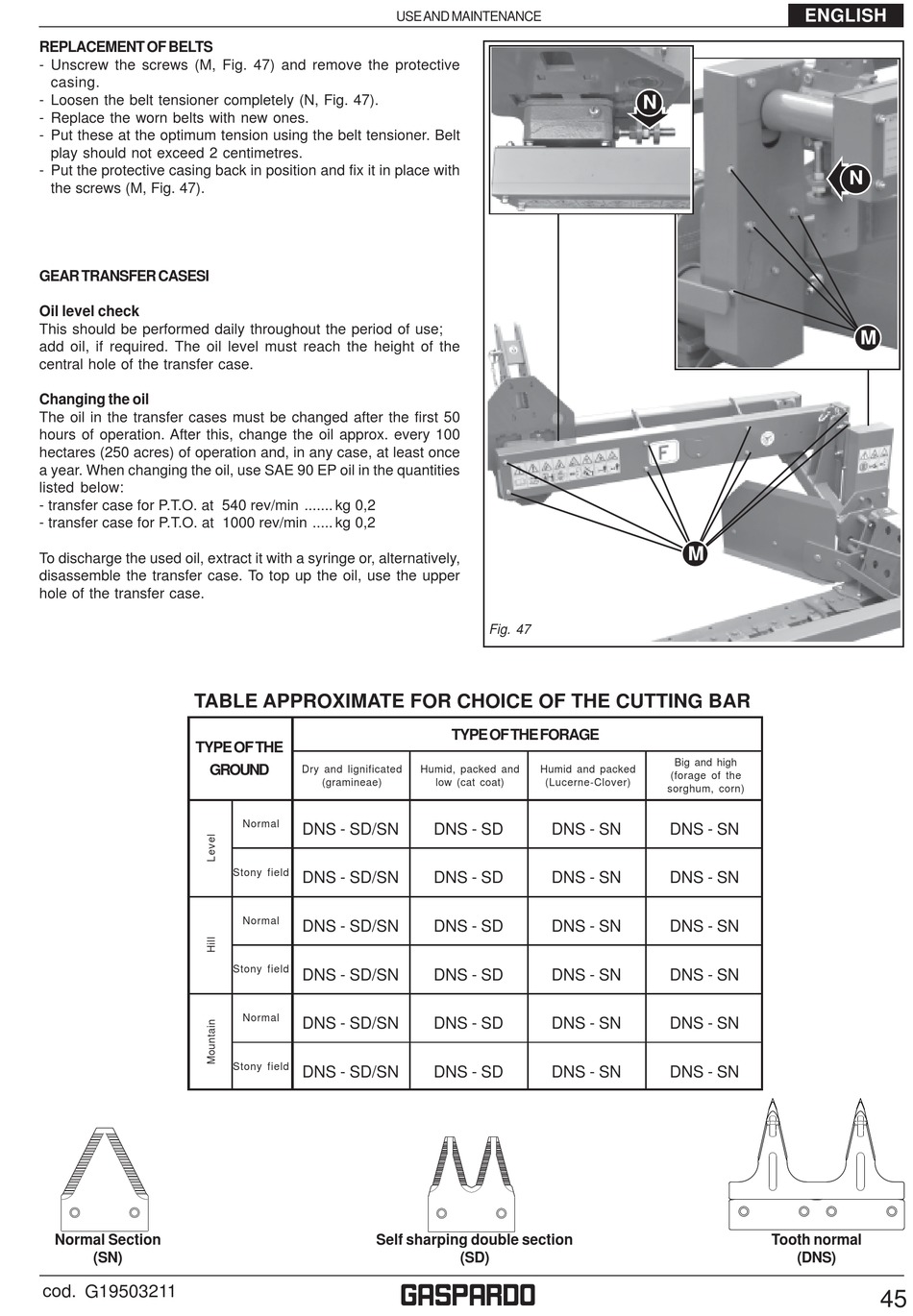

Replacement Of Belts - Gaspardo F Plus Gebrauch Und Wartung

REPLACEMENT OF BELTS

- Unscrew the screws (M, Fig. 47) and remove the protective
casing.
- Loosen the belt tensioner completely (N, Fig. 47).
- Replace the worn belts with new ones.
- Put these at the optimum tension using the belt tensioner. Belt
play should not exceed 2 centimetres.
- Put the protective casing back in position and fix it in place with
the screws (M, Fig. 47).
GEAR TRANSFER CASESI
Oil level check
This should be performed daily throughout the period of use;
add oil, if required. The oil level must reach the height of the
central hole of the transfer case.
Changing the oil
The oil in the transfer cases must be changed after the first 50
hours of operation. After this, change the oil approx. every 100
hectares (250 acres) of operation and, in any case, at least once
a year. When changing the oil, use SAE 90 EP oil in the quantities
listed below:
- transfer case for P.T.O. at 540 rev/min ....... kg 0,2
- transfer case for P.T.O. at 1000 rev/min ..... kg 0,2
To discharge the used oil, extract it with a syringe or, alternatively,
disassemble the transfer case. To top up the oil, use the upper
hole of the transfer case.
TABLE APPROXIMATE FOR CHOICE OF THE CUTTING BAR
TYPE OF THE
GROUND
Normal Section
(SN)
cod. G19503211
USE AND MAINTENANCE
Dry and lignificated
(gramineae)
Normal
DNS - SD/SN
Stony field
DNS - SD/SN
Normal
DNS - SD/SN
Stony field
DNS - SD/SN
Normal
DNS - SD/SN
Stony field
DNS - SD/SN
Self sharping double section
g
Fig. 47
TYPE OF THE FORAGE
Humid, packed and Humid and packed
low (cat coat) (Lucerne-Clover)
DNS - SD DNS - SN
DNS - SD DNS - SN
DNS - SD DNS - SN
DNS - SD DNS - SN
DNS - SD DNS - SN
DNS - SD DNS - SN
(SD)
ENGLISH
N
M
Big and high
(forage of the
sorghum, corn)
DNS - SN
DNS - SN
DNS - SN
DNS - SN
DNS - SN
DNS - SN
Tooth normal
(DNS)
N
M
45
