JO-DataClient - Terminal software for CHM15k
The signal light "measured signal within working range" shows whether the
data are suitable for cloud height calculation. During the start phase of the
CHM15k this light is possibly still red, nevertheless, after a run time of about four
minutes it should change to green, which indicates correct operation mode of
the detector.
"NetCDF filename" specifies the entire local path of the last transmitted raw
data telegram, this file is overwritten every time a raw data telegram is
received. A sequential acquisition of these NetCDF raw data is possible by
setting on the switch "Merge Raw".
12.1.4

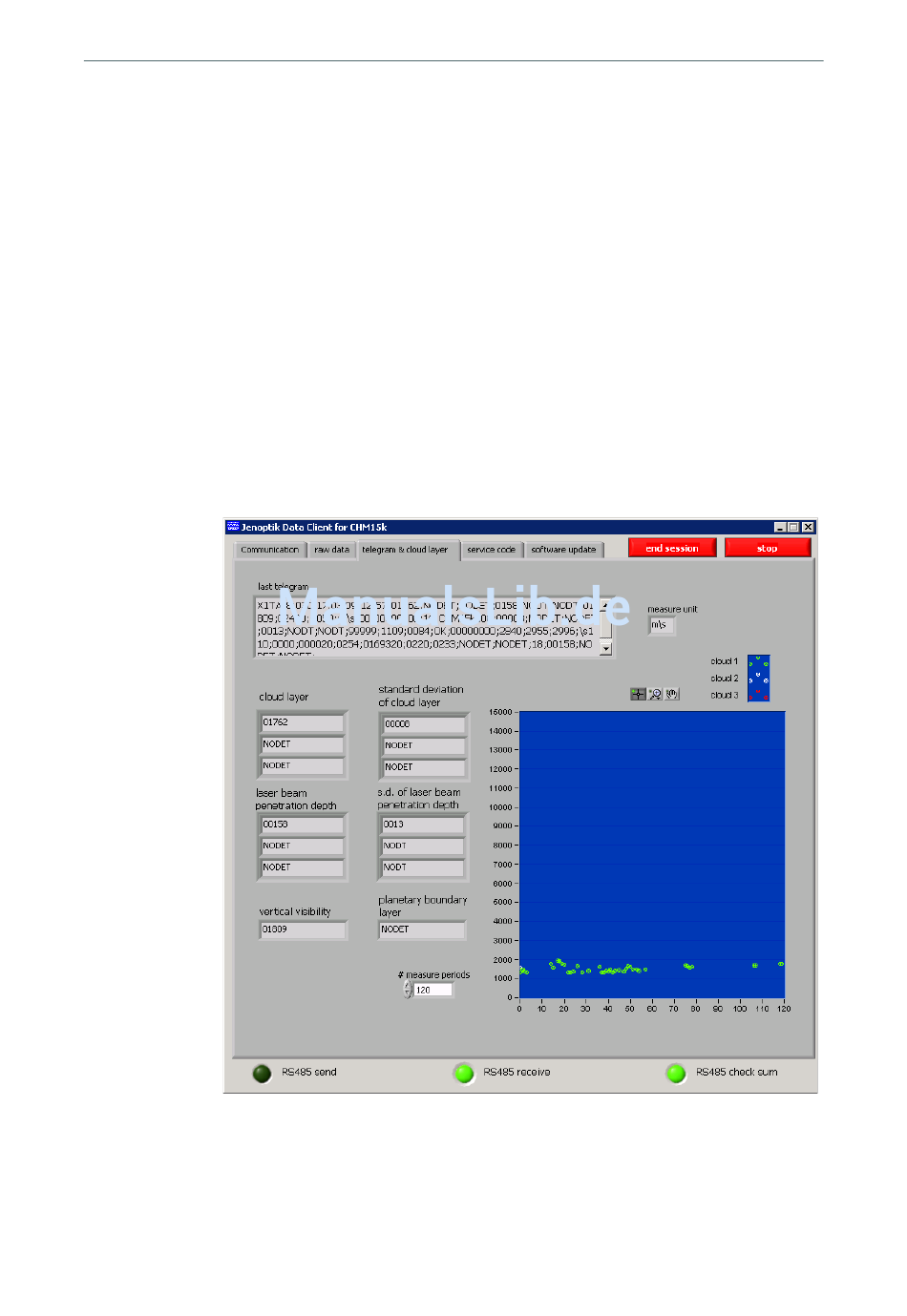

All types of telegrams contain up to three cloud layer an associated laser beam
penetration depths; in the advanced and raw data telegrams also the standard
deviations of these values. All these values are displayed on the left side of this
page, together with the last received telegram message. At the bottom there is
also a line displaying the vertical visibility and the planetary boundary layer.
58
Telegram & Cloud layer
Revision 04, May 2009
