Finally another two paths are adjustable which concern local paths of the
computer, where JO-DataClient runs:
– measure path: In this directory the telegram messages of CHM15k will be
saved in subdirectory structure, which depends on device name and
date, for later evaluations.
– program update path: If a software update has to be carried out (see
last page) this path must contain the new program files to be trans-
mitted. This path is to be set here only in the case, if during a running
update process JO-DataClient is terminated and is newly started
later again. In the latter case the update directory has to be custo-
mized immediately after the restart.
12.1.3

Raw Data

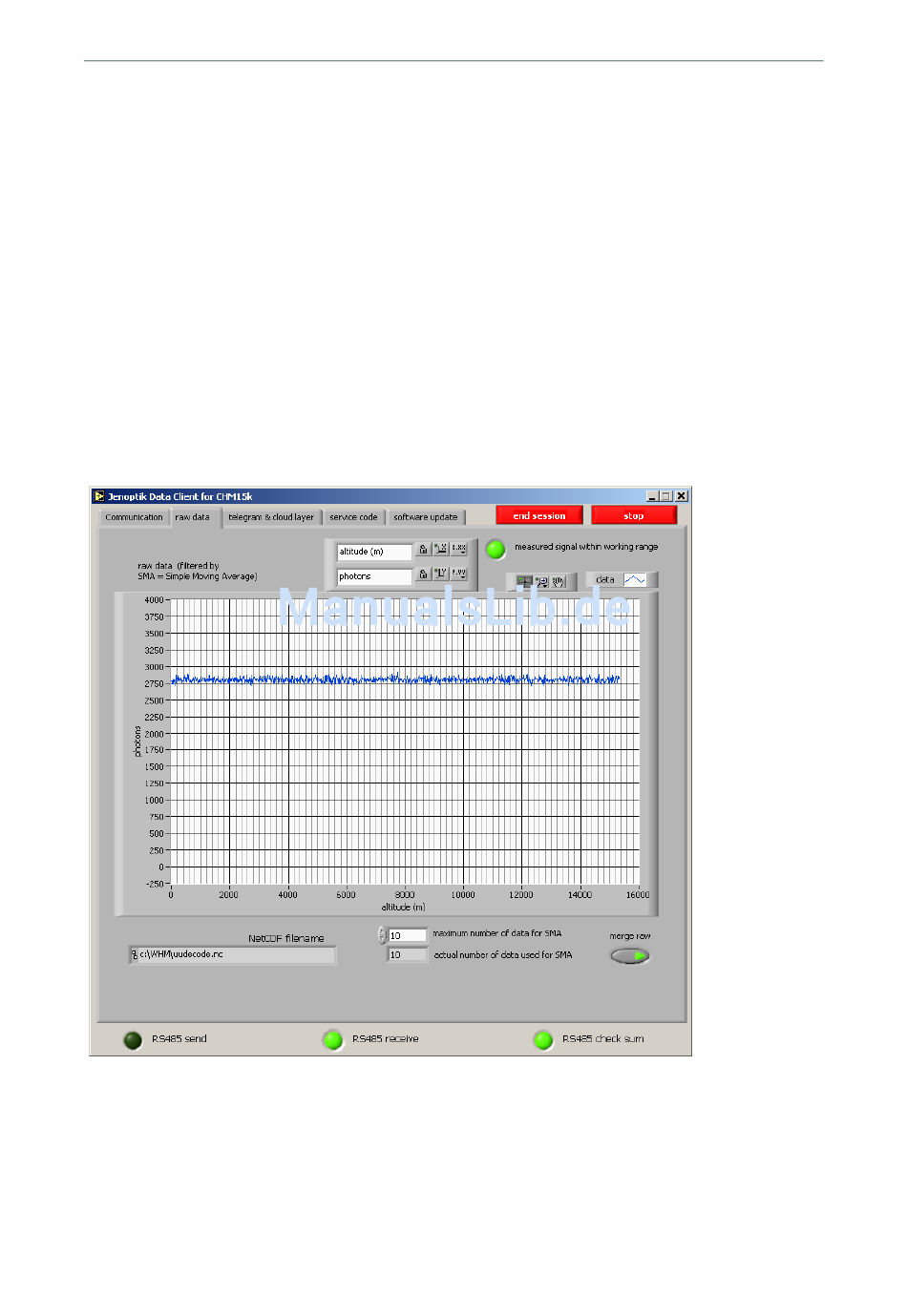

In the graph shown here the raw data of the last transmitted raw data telegrams
are grasped. In fact, a simple moving average (SMA) filter is applied on the last
10 raw data telegrams, this number 10 is changeable in the input field "maxi-
mum number of data for SMA ". If the value 1 is set in this field, the raw data of
the last received raw data telegram are displayed in the graph. The field "actual
number of data used for SMA" contains the number of raw data records used
for SMA calculation - without change of parameter "maximum number of data
for SMA" this value should grow with succeeding telegrams up to 10.
Revision 04, May 2009
JO-DataClient - Terminal software for CHM15k
