Option A5218:

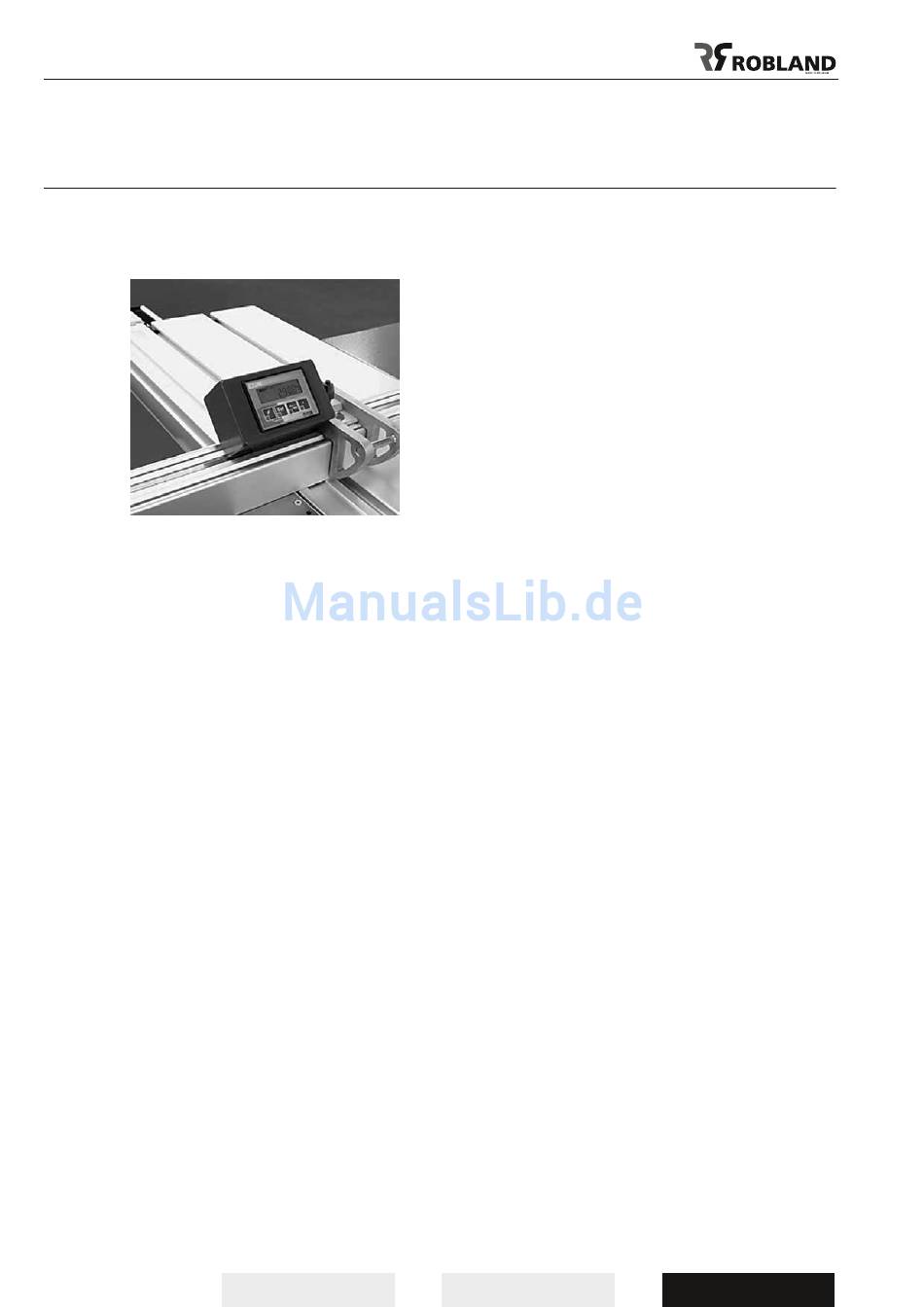

Digital Flip stop on the cross-cut fence
For all the machines of the series Z and NZ, the digital flip stop, an absolute measurement system for
the cross cut fence, is optional. For more information about the settings of the 90° inclination according
to the main saw blade, see "Adapting the cross cut fence"
Placing the magnetic strip
atteNtioN:
The magnetic strips of the Z-series are shorter than the magnetic strips of the NZ-series.
When placing the magnetic strip, we recommend to remove the difference, after placing the magnetic
strip correctly.
The digital read-out system is placed into the guiding rail on the cross cut fence. It is very important to
check, before changing the setting of the system, that the active mode of the system is Abs and not
Incr. To change the mode of the system press the button Incr/Abs.
Calibrating the system: Place the 300 mm long piece Z1253 against the cross cut fence reaching
exactly one saw-tooth of the main saw blade. Push the flip over stop against the former mentioned 300
mm long element Z1253. Press, at the same time, the buttons <<F>>+<<Set>>. Doing this you will see
that 300.0 appears at the display. The system is calibrated. Using the button Incr/Abs you can create a
new zero point.
When lifting up the flipper so it looses contact with the magnetic strip, the setting are saved, so it will
be unnecessary to calibrate the system each and every time again after lifting of the flipper and loss of
contact with the magnetic strip.
When not using the system, it will automatically shut down after a time period of 20 minutes. To activate
the system again, just press one of the buttons.
