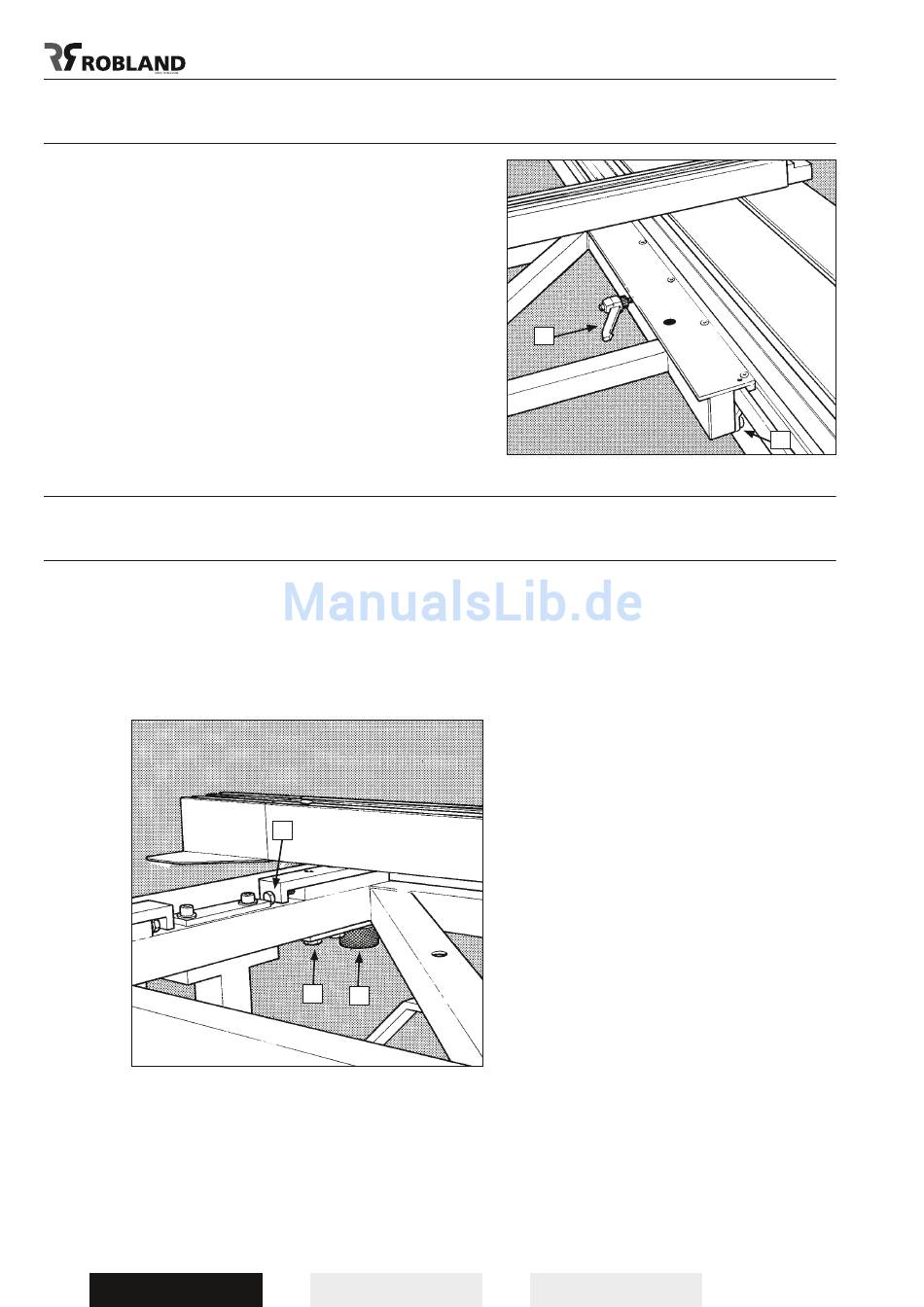

Mounting of the cross-cut table

(Fig.17)
The cross-cut table can be slid from the back to the
center of the sliding table via the flat bar on the side
of the sliding table.
The 2 brackets (2) should be positioned to allow the
cross-cut table to be easily moved along the
sliding table. The table must be locked in position
using handle (1).
Please note that the machine is constructed so that
the cross-cut table can be moved to the middle of
1
the sliding table only.
The telescopic arm support is too short to allow the
cross-cut table to be set at the front of the sliding
table. Both telescopic arm and cross-cut table are
factory set and need no adjustment.
2
Fig.17
Mounting of the 90° cross-cut fence
(Fig.18)
The cross-cut table has 4 precision holes allowing the fence to be put in 2 positions : at the back and
front of the cross-cut table. Simply put the fence onto the cross-cut table and lock it in position using
the two serrated nuts (1).
The 90° right angle of the fence is factory set. Should the 90° angle need to be adjusted, then the
two bolts (2) must be loosened; then by turning the little bolt (1), the angle can be opened or closed
towards the sawblade. After adjustment the bolts (2) have to be retightened.
1
2
3
Fig.18
16
