Calibration of the scale
on the cross-cut fence

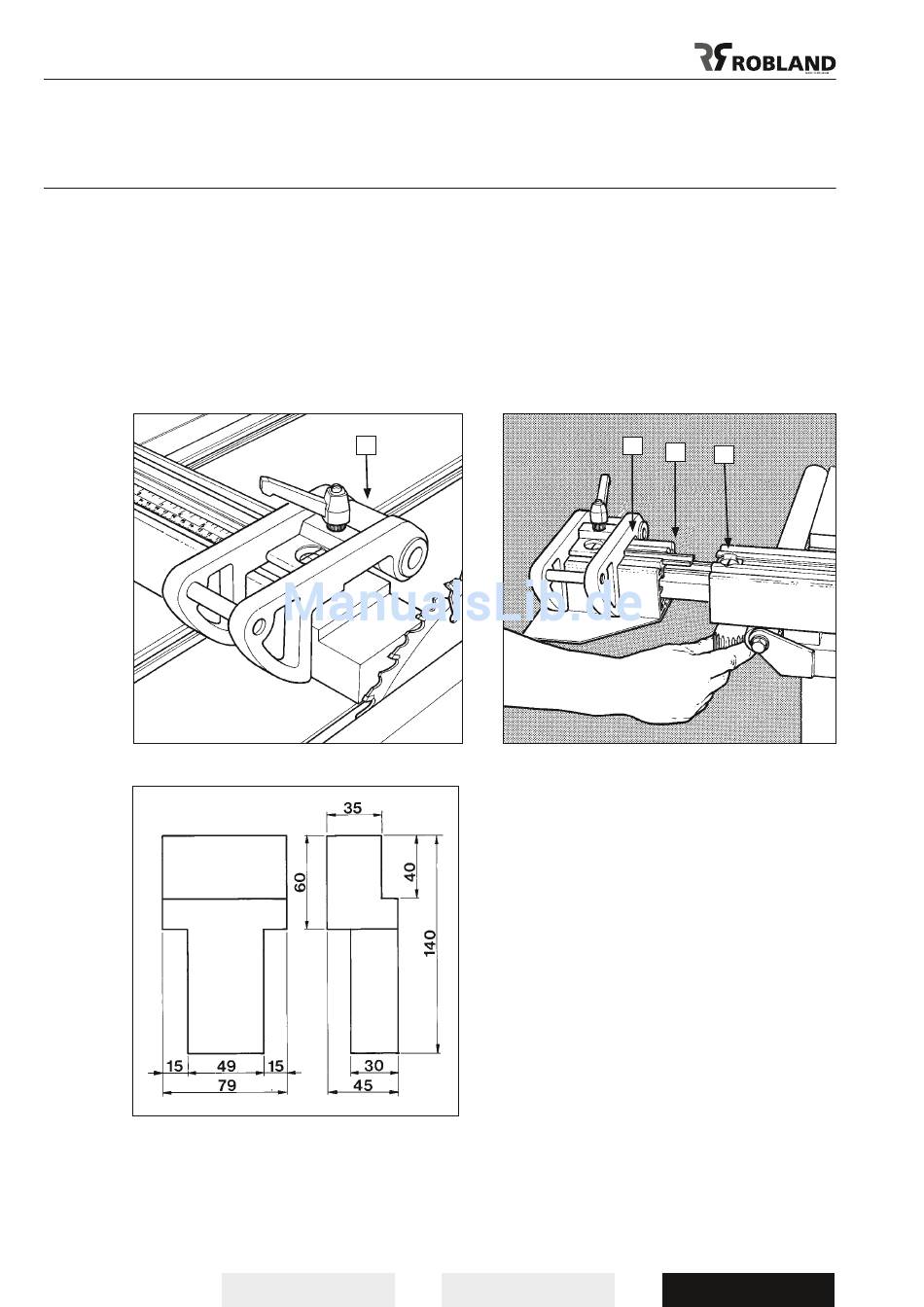

Each time a new sawblade is put onto the machine the scales have to be calibrated.
Put the first repetition stop (1) at a certain measure and cut off a sample.
Measure the exact length of the sample, unlock the screw which holds the scale and move the scale
until the exact length corresponds with the index on the repetition stop.
Now the scale on the telescopic part of the fence (fig.20,2) has to be adjusted to the first scale.
When using the telescopic extension, the second repetition stop (3) has to be set at 1925 mm
to make the different scales correspond with one another. The best way to check if all scales
correspond is to make several test cuts on the different scales.
When, after some time, the wooden protection cap at the front on the cross-cut fence is cut away, a
new one has to be made according to diagram fig.21..
Fig.19
Fig.21
Z3200 10-V0713
1
Fig.20
