Mitre fence

The flat T-nut which holds the vertical rod of the wood clamp is factory set and has to stay in its position
to make the angle scale correspond.
To set the required angle : unlock the rod (1) and the auto-release handle (2). To slide the
fence (5) towards the sawblade, unlock the two handles (3). Reading the angle set is done at the back
of the aluminum bracket (4).

Use of the parallel fence

When the serrated knob (3) is unlocked and the handle (1) is lifted up, the complete parallel fence can
be moved.
To lock the fence in position push the handle (1) down.
The micrometric adjustment is achieved by locking the knob (3), by holding the handle (1) in the
upright position and by turning the serrated knob (2).
After the adjustment push handle (1) down to lock the fence in place. When cutting small workpieces
with the sawunit inclined at 45°, the fence should be used in the low position.
Simply unlock the eccentric clamping handle (4), slide off the fence and slide it back on in the low
position.
Lock the fence with the eccentric clamping handle (4).
When cutting solid wood using the parallel fence, to avoid the wood getting stuck between the fence
and the riving knife (resulting in a hightly dangerous kickback) it is recommended to
reposition the fence so that its end protrudes just past the end of the riving knife.

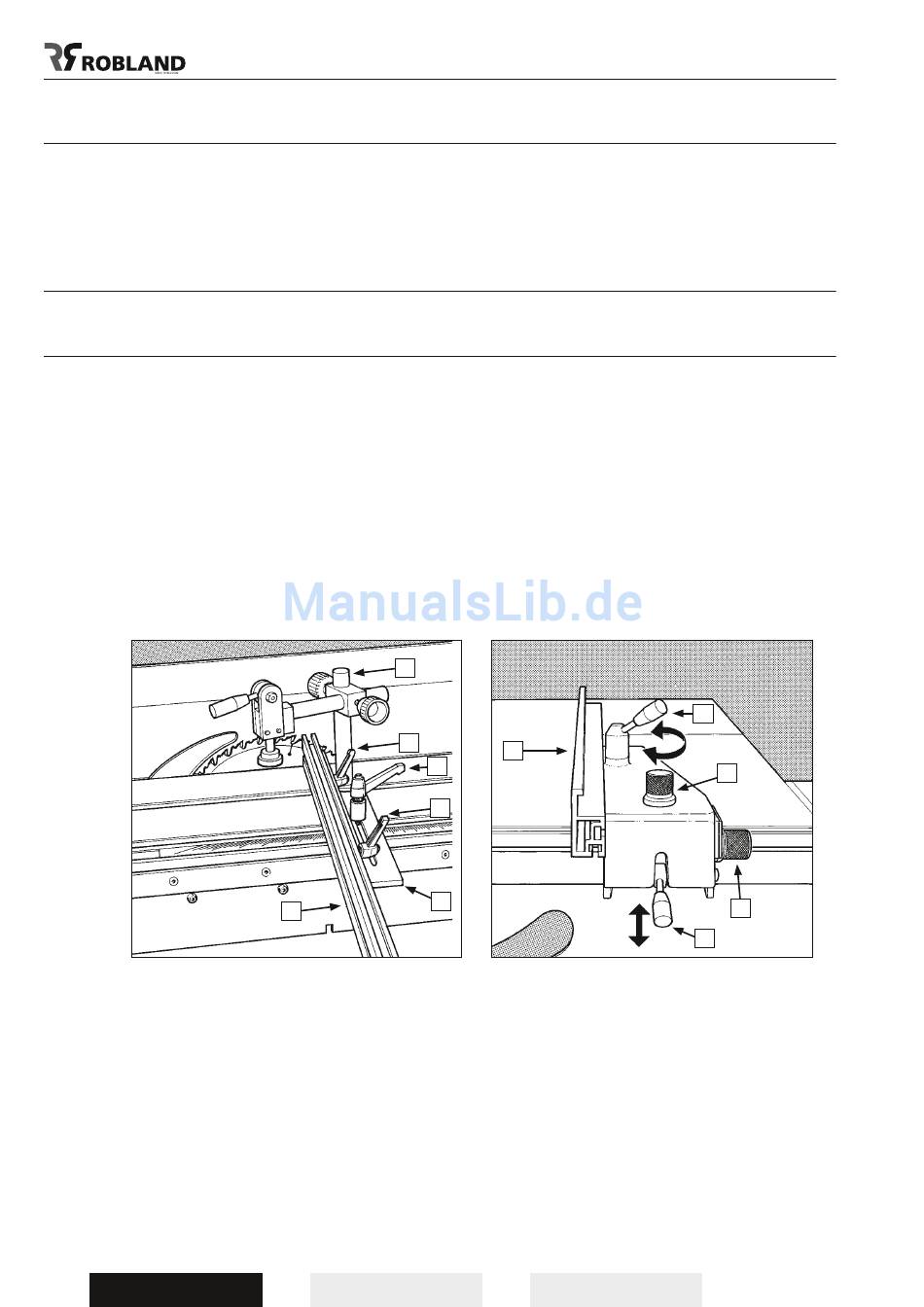

Fig. 22
18
– English
(fig.22)
1
3
2
3
4
5
– Deutsch
(fig.23)
5
Fig. 23
4
3
2
1
