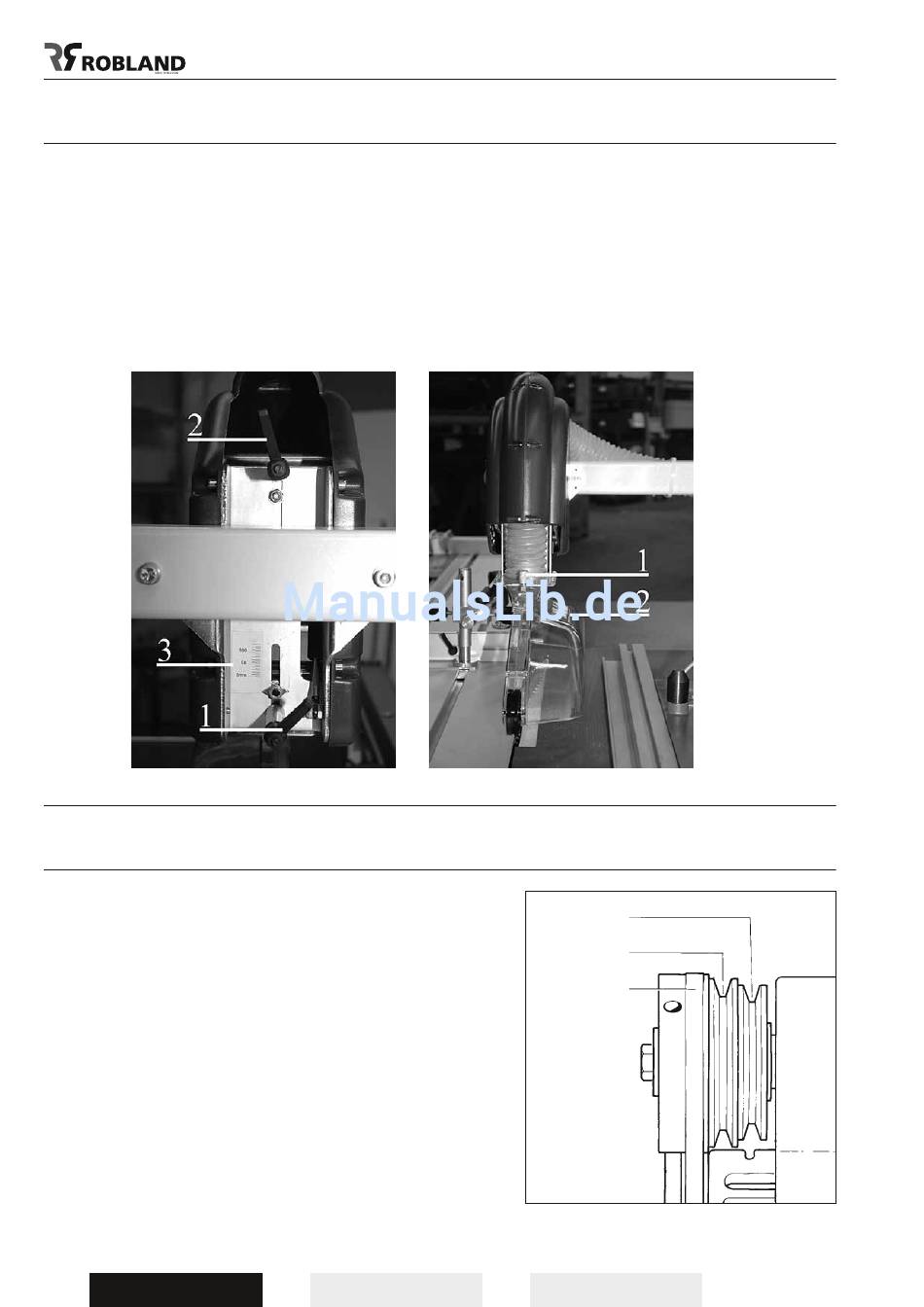

Overhead sawguard

According norms and applicable prescriptions, the sawguard always should be positioned, just
allowing the passing of the wood or work pieces.
The adjustment of height can be done with the handle (1 and 2), using the previously adapted
graduated scale (3). The guard can not go under the definite measurement. Allowing to block the
protection to avoid it goes up on its own. The handle (2) as well serves as a height stop to avoid that
the protection goes up to high according to the handled work piece.
The guard has got a shifting skirt, remove the screw (1) then the little skirt and place the larger one,
closing again with the screw.
Attention: it is evident that for special tasks, it is necessary to make or build specific protection.
Fig.26
RPM indicator lights
After the machine has been switched on by the main
switch, the indicator lights at the front electrical panel
show the speed of the saw arbor. When changing
speed always take care that the indicator detector
(1) is placed in the correct position, to avoid the belt
rubbing against the detector, leading to a premature
wear of the belt.
This can be felt and seen.
The machine has 3 RPMs : 3000 - 4000 - 5000.
20
– English
(Fig.26-27)
Fig.27
(Fig.28)
Fig.28
– Deutsch
5000 RPM
4000 RPM
3000 RPM
