Calibration of the scale on
the parallel fence

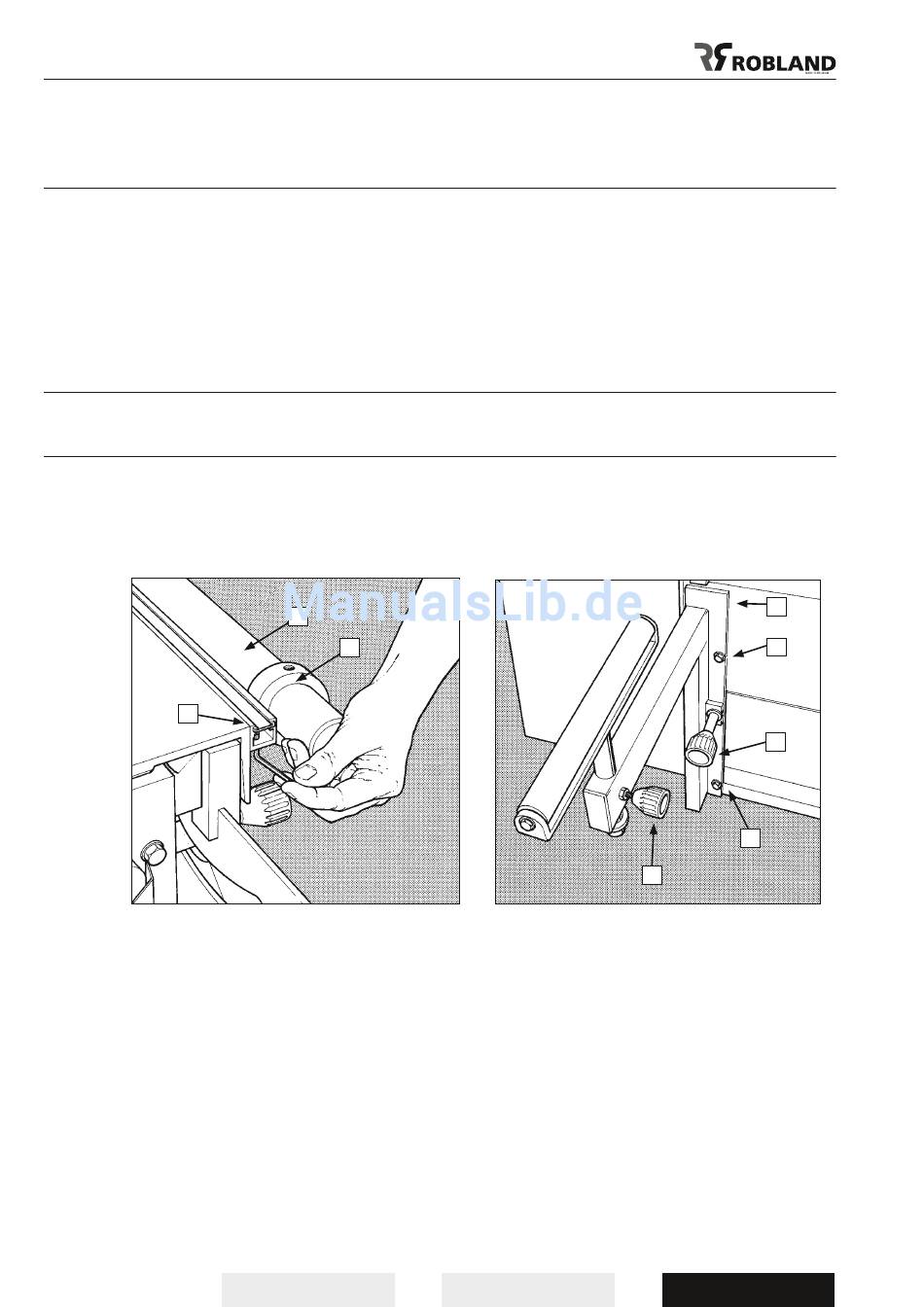

Each time a new sawblade is fitted the parallel fence scale has to be calibrated to the new
sawblade.
By cutting a sample and measuring its exact length, the scale can be adjusted so that the exact
measure corresponds with the front side of the fence.
After the screw (1) has been loosened the scale can be adjusted. To avoid the fence contacting the
sawblade while it is revolving, the stop ring (2) has to be adjusted.
Slide the fence to about 10 mm from the sawblade.
Now slide the stopring (2) across the round guide bar (3) until it comes up against the
casting of the fence. Tighten the lock screw on the stop ring.

Mounting of the roller support

Put the hinge plate (1) of the roller support onto the frame using the bolts (2). The roller has to be
adjusted to the height of the saw table using the lower stopring.
The whole support can be lowered and can be swung aside after opening the knob (4). If the roller
support has to be taken off, simply lift it off its hinges.
1
Fig. 24
Z3200 10-V0713
(fig.24)
3
2
4
Fig. 25
– Deutsch
(fig.25)
1
2
2
2
– English
19
